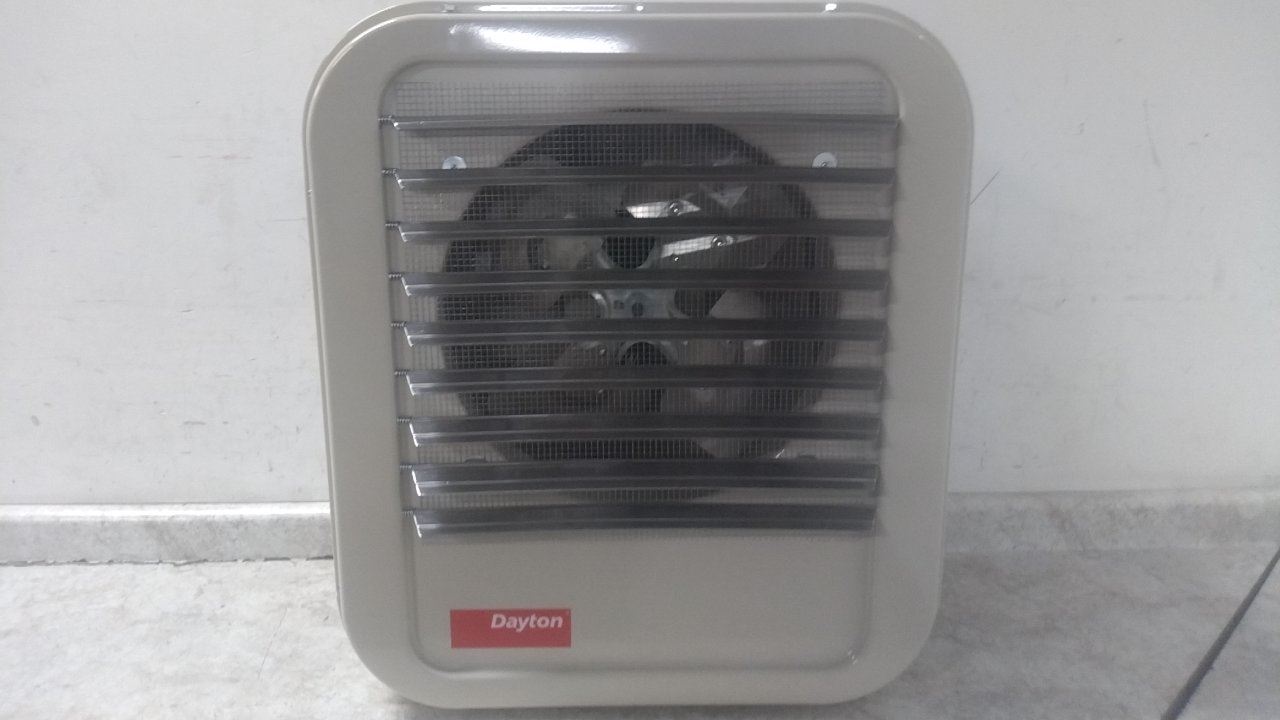

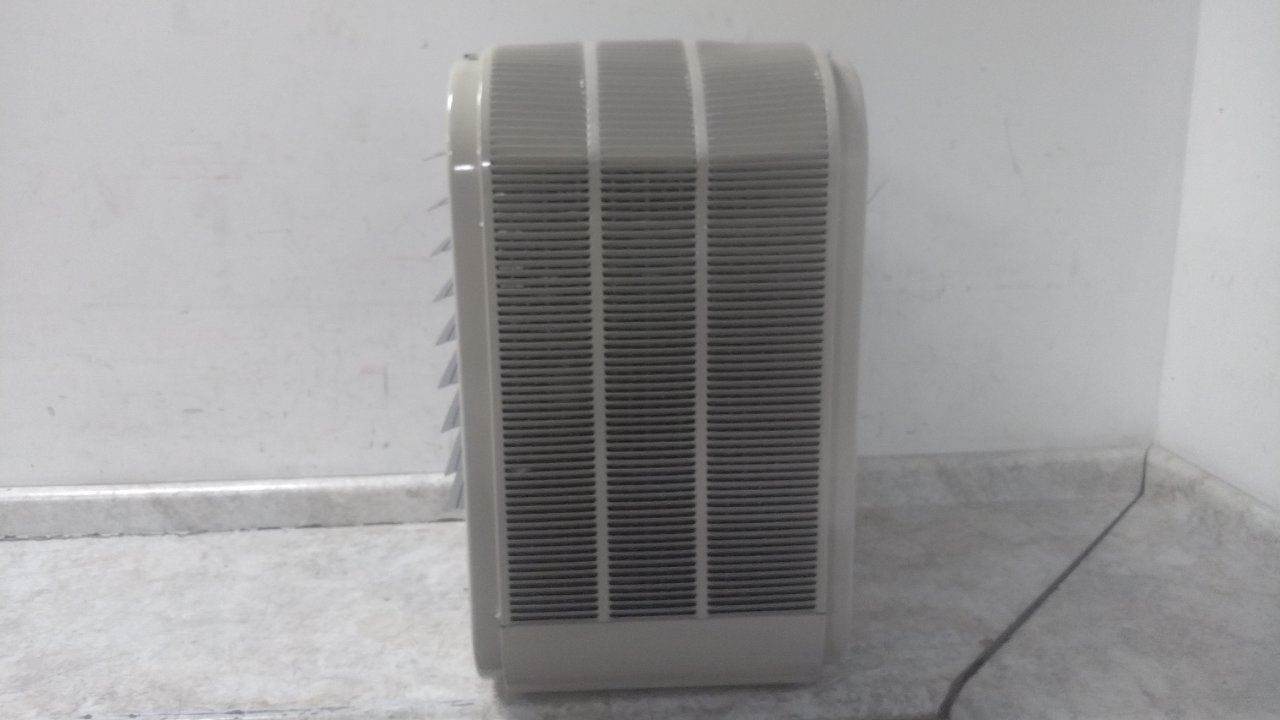

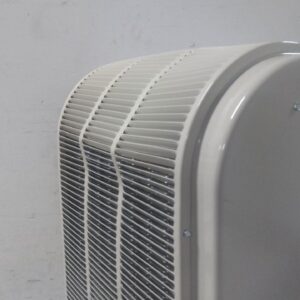

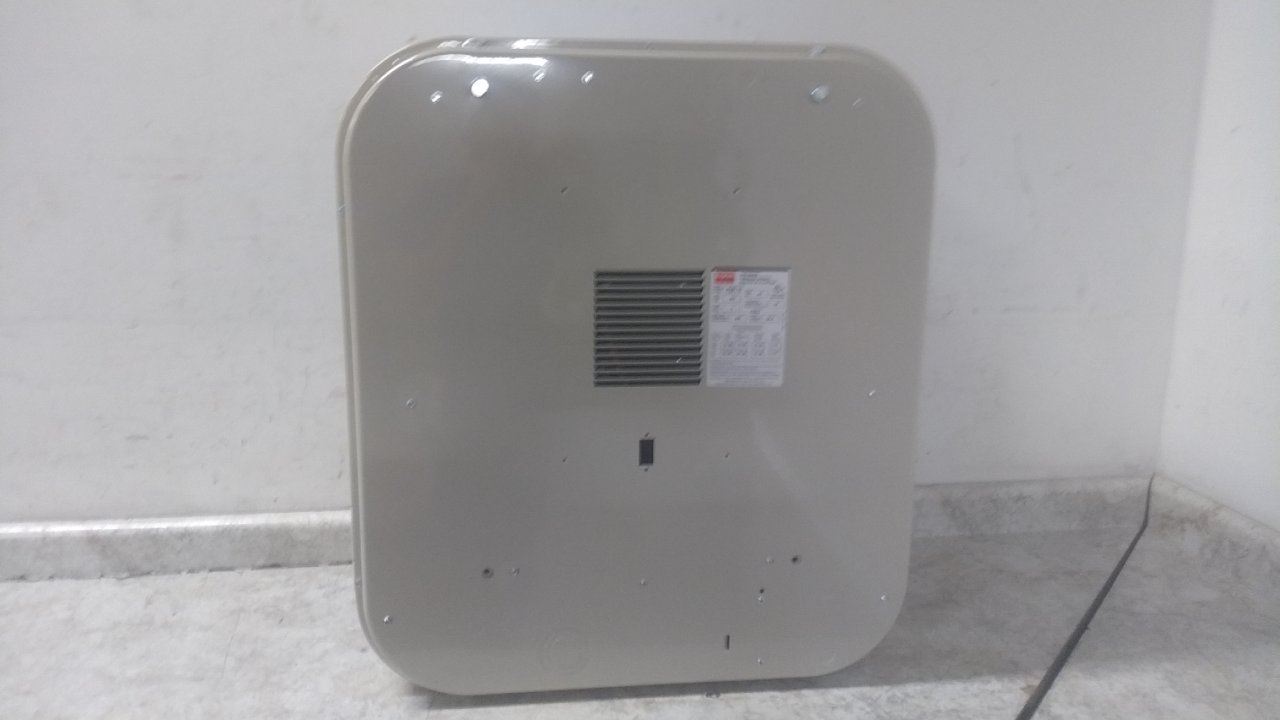

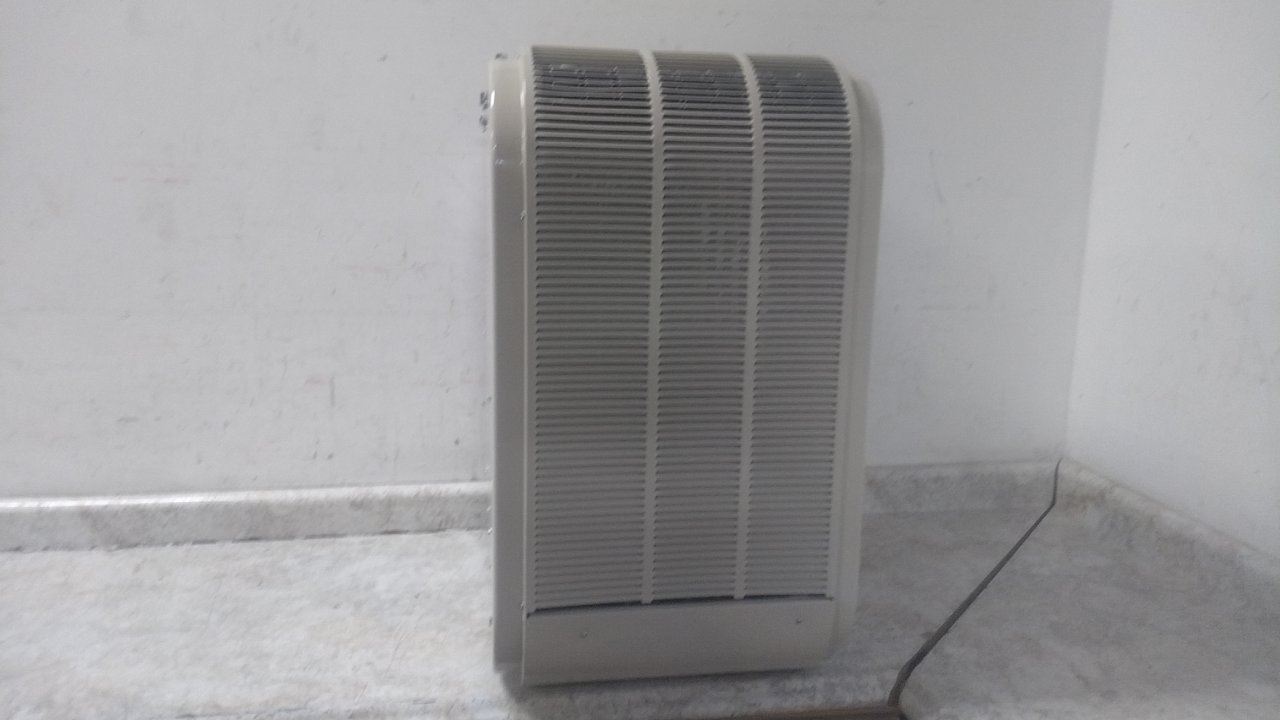

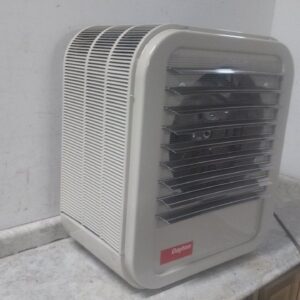

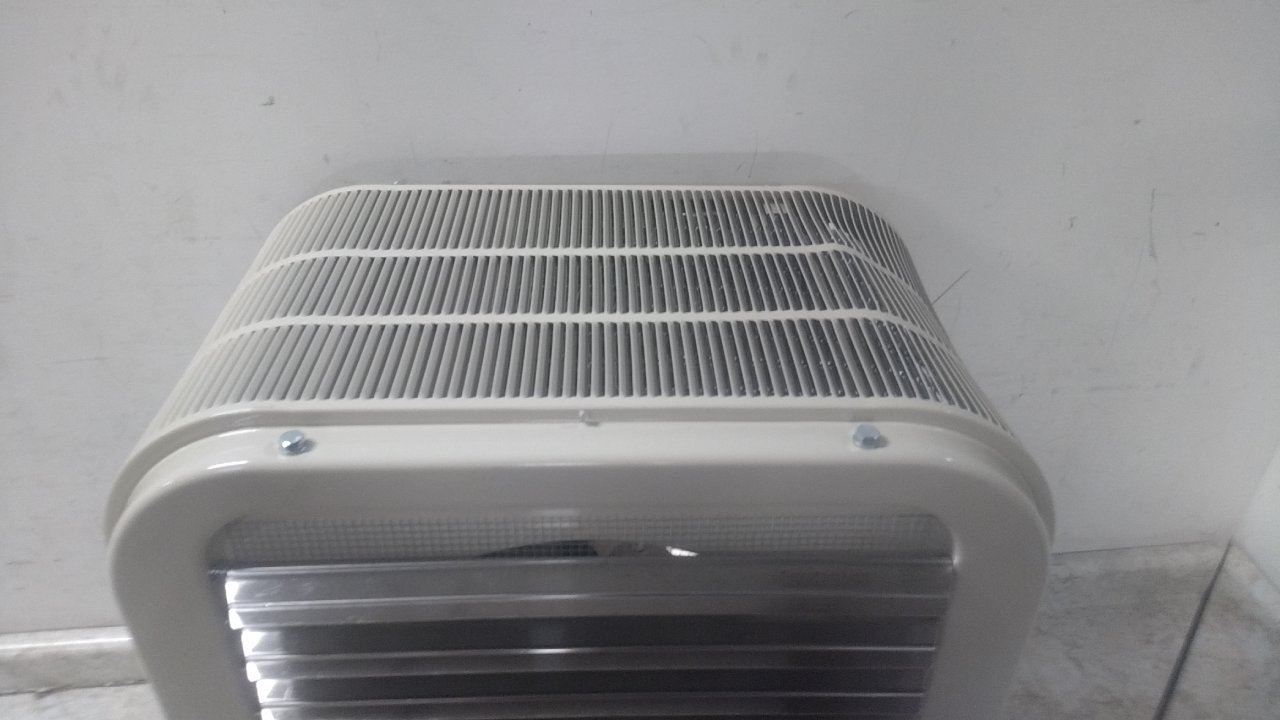

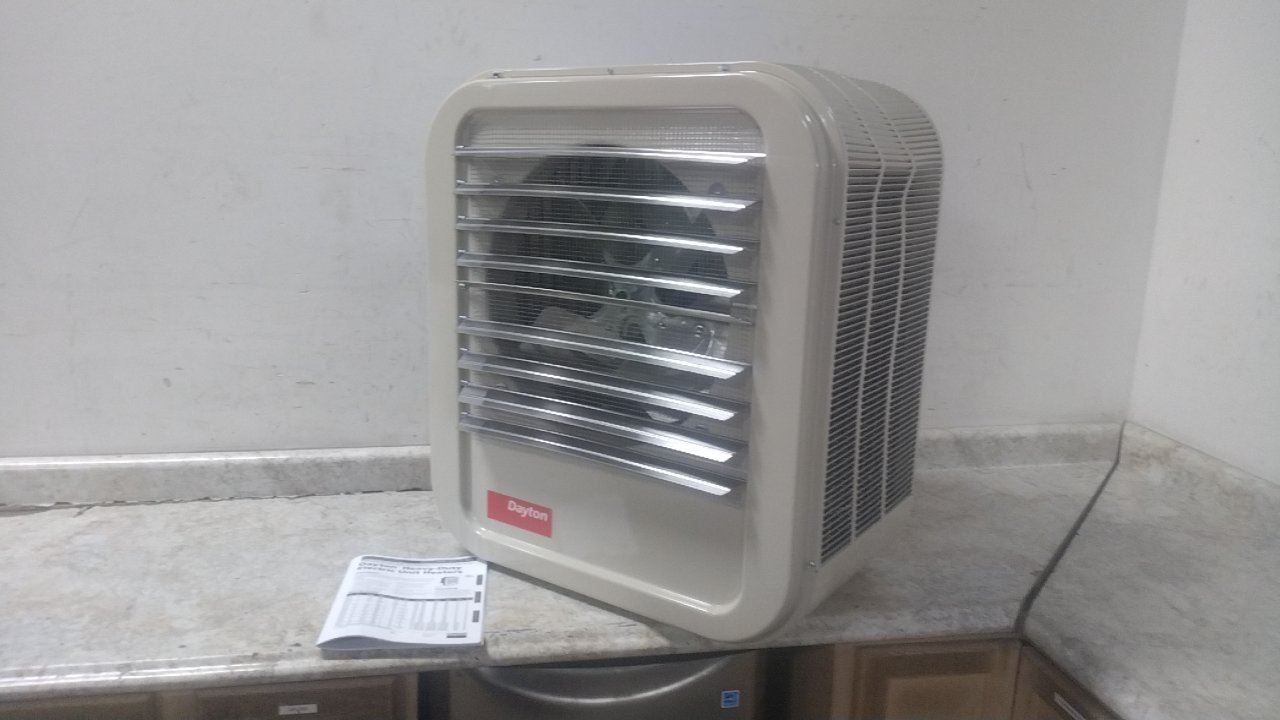

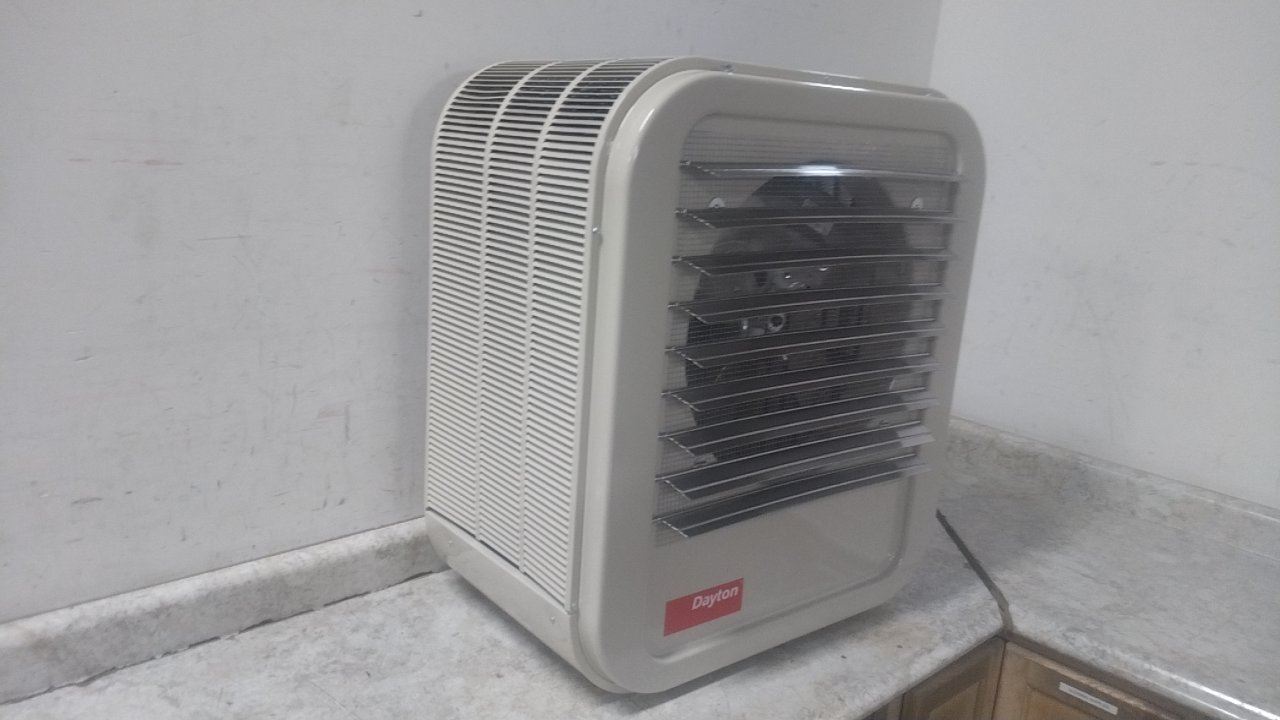

This is a Dayton electric wall and ceiling unit heater. Please refer to the technical specifications in the listing for more information.

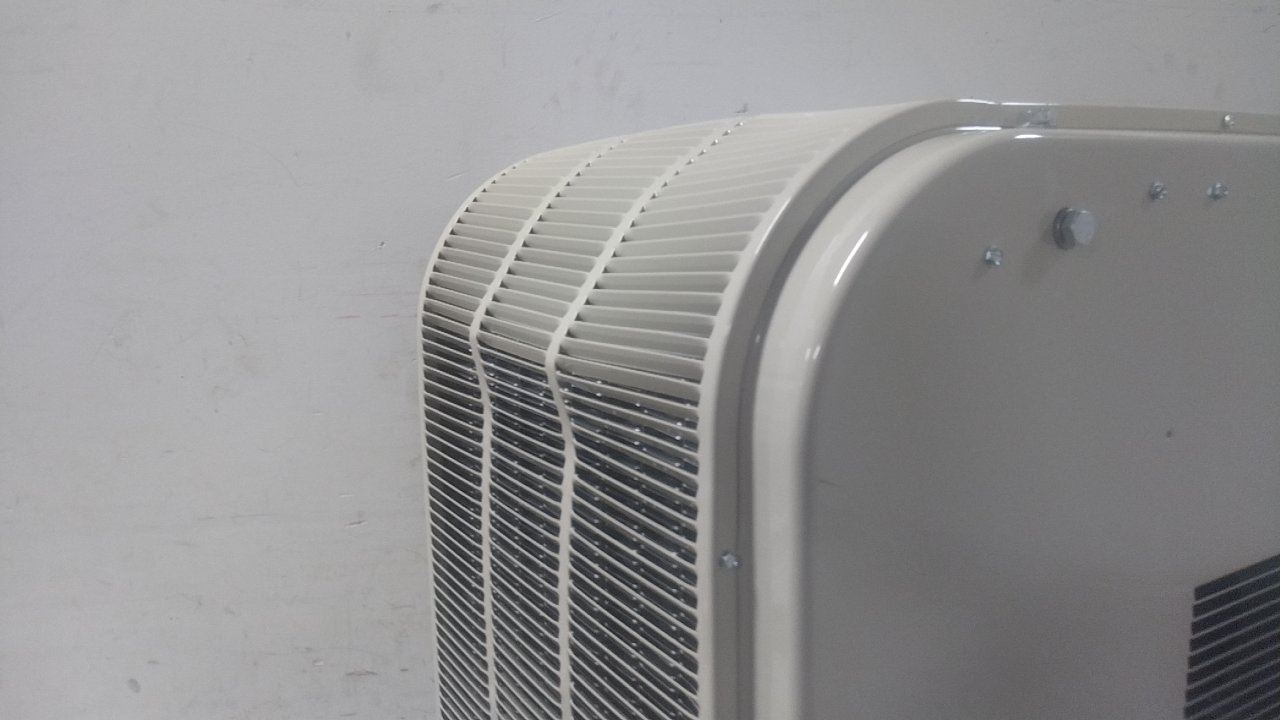

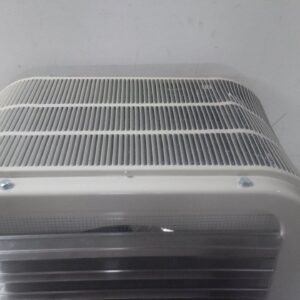

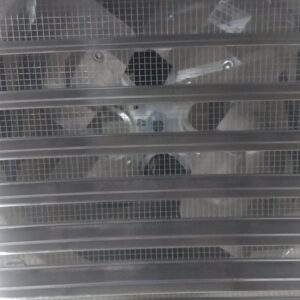

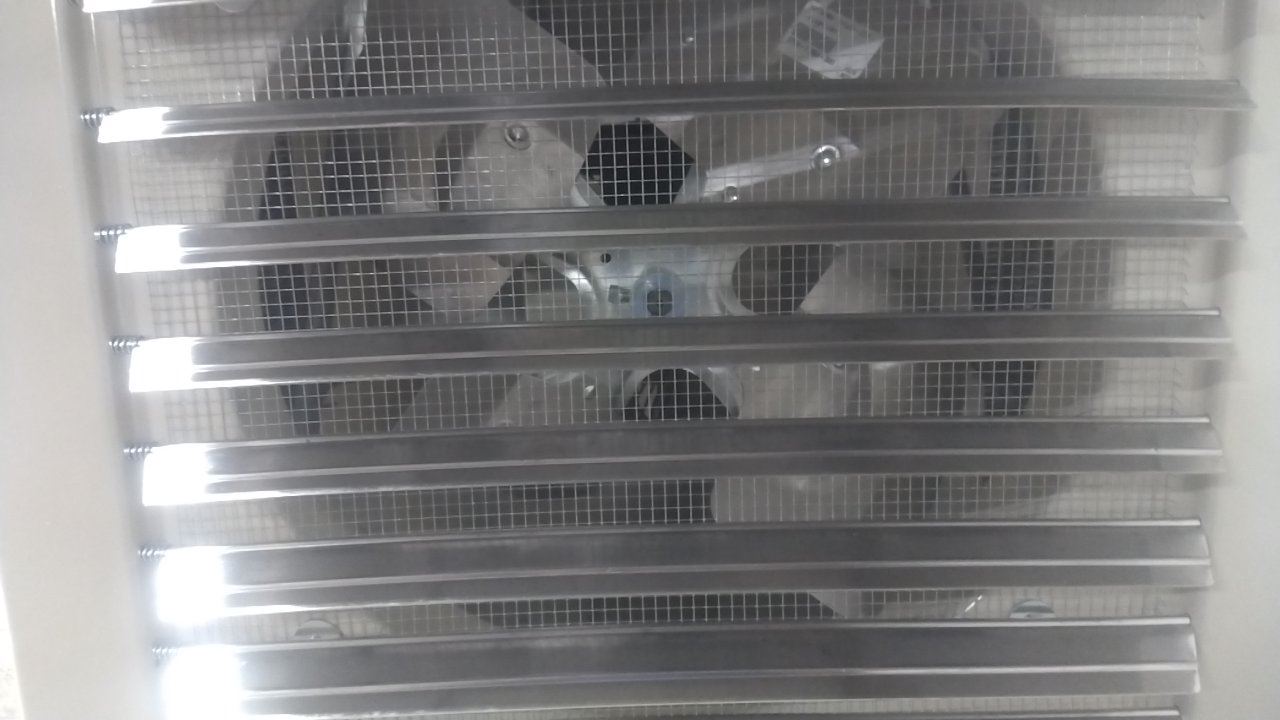

We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The fan blade spins when turned by hand. There are some cosmetic scuffs and scratches throughout the unit as well as some dents. Please refer to the photos for more information.

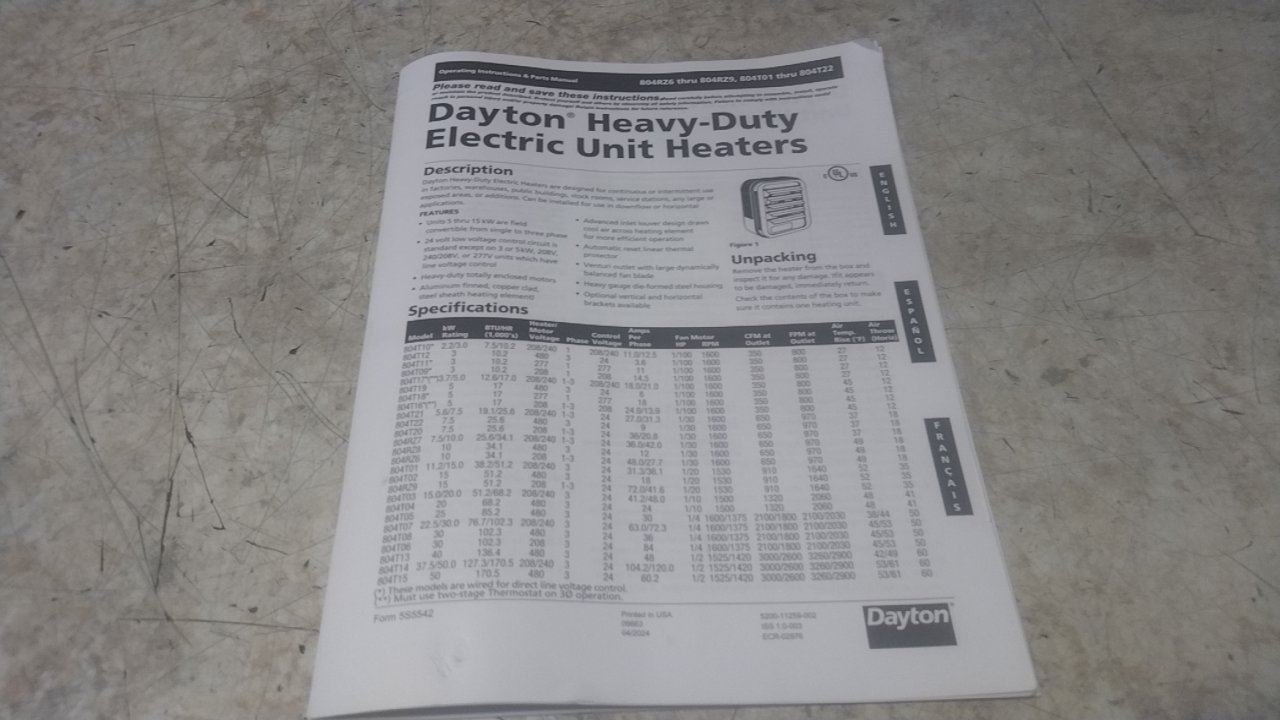

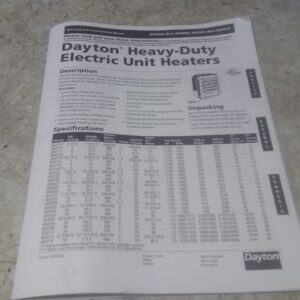

This unit only includes what is photographed in the listing. Made in USA.

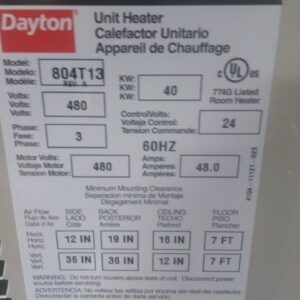

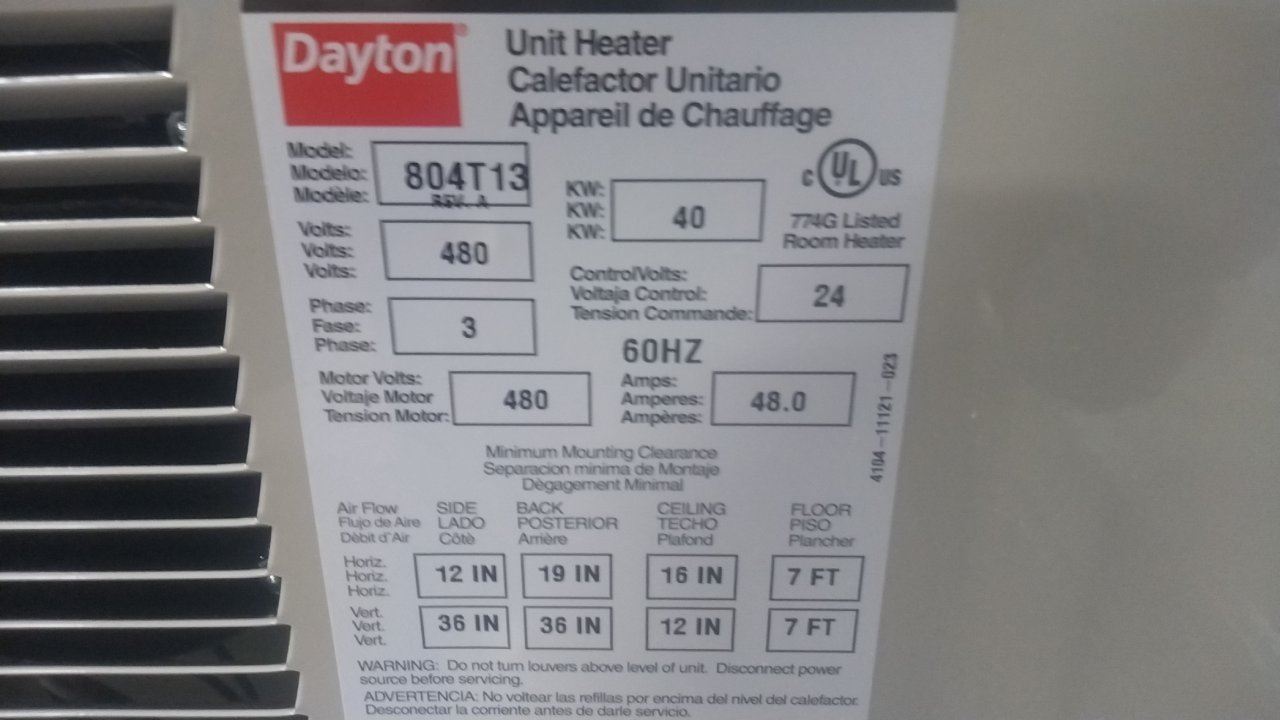

Technical Specs
| Item | Electric Wall & Ceiling Unit Heater |
| Overall Height | 30 in |
| Overall Width | 26-5/8 in |
| Overall Depth | 18-1/8 in |
| Voltage | 480VAC |
| Air Flow | 2,600 cfm; 3,000 cfm |
| Air Temperature Rise | 49 °F |
| Phase | 3 |
| Heating Method | Fan Forced |
| Heating Capacity | 136,400 BtuH |
| Horizontal Air Throw | 60 ft |
| Frequency | 60 Hz |
| Amperage | 48 A |
| Control Type | Mechanical Selector Dial |
| Contactor Coil Voltage | 24VAC |
| Housing Color | Beige |
| Housing Finish | Powder Coated |
| Housing Material | Steel |
| Vertical Floor Coverage | 63 ft |
| Vertical Mounting H | 25 ft |
| Wattage Output | 40 kW |
| Requires | 5/16″-18 Threaded Rod for Ceiling Installation (Not Included) |
