This is a Versa-Matic double diaphragm pump. Please refer to the technical specifications in the listing for more information.

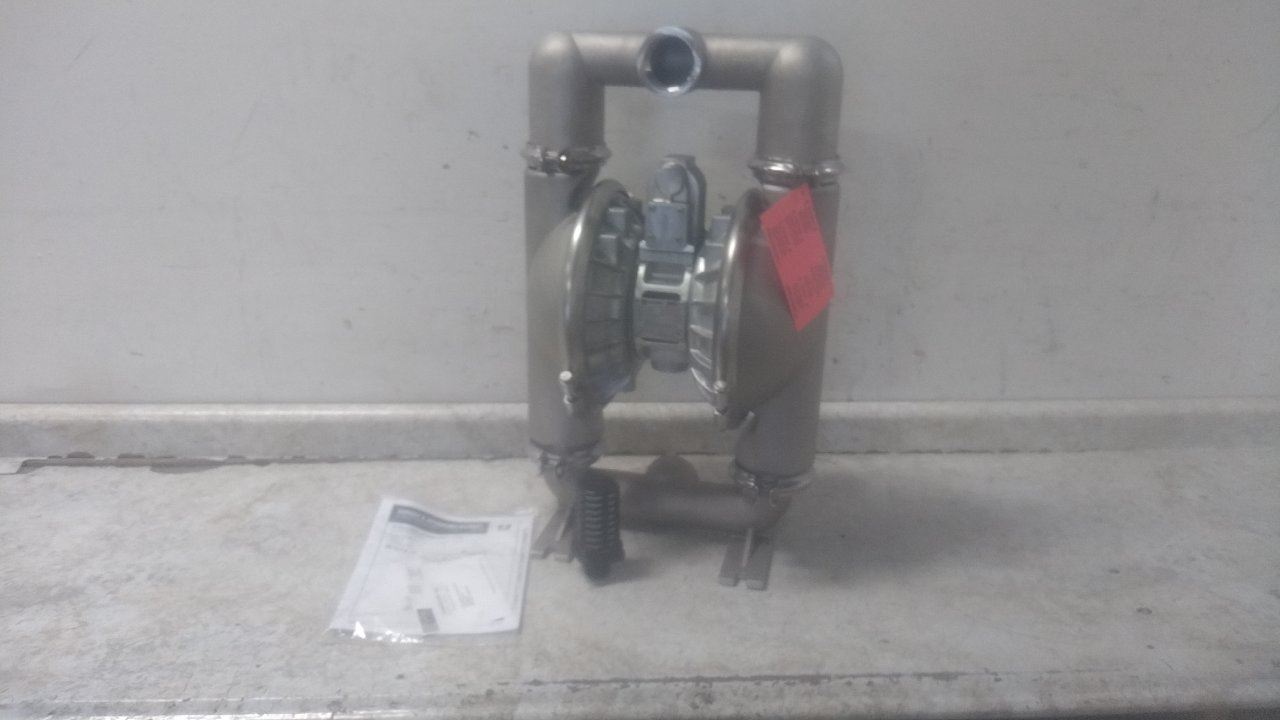

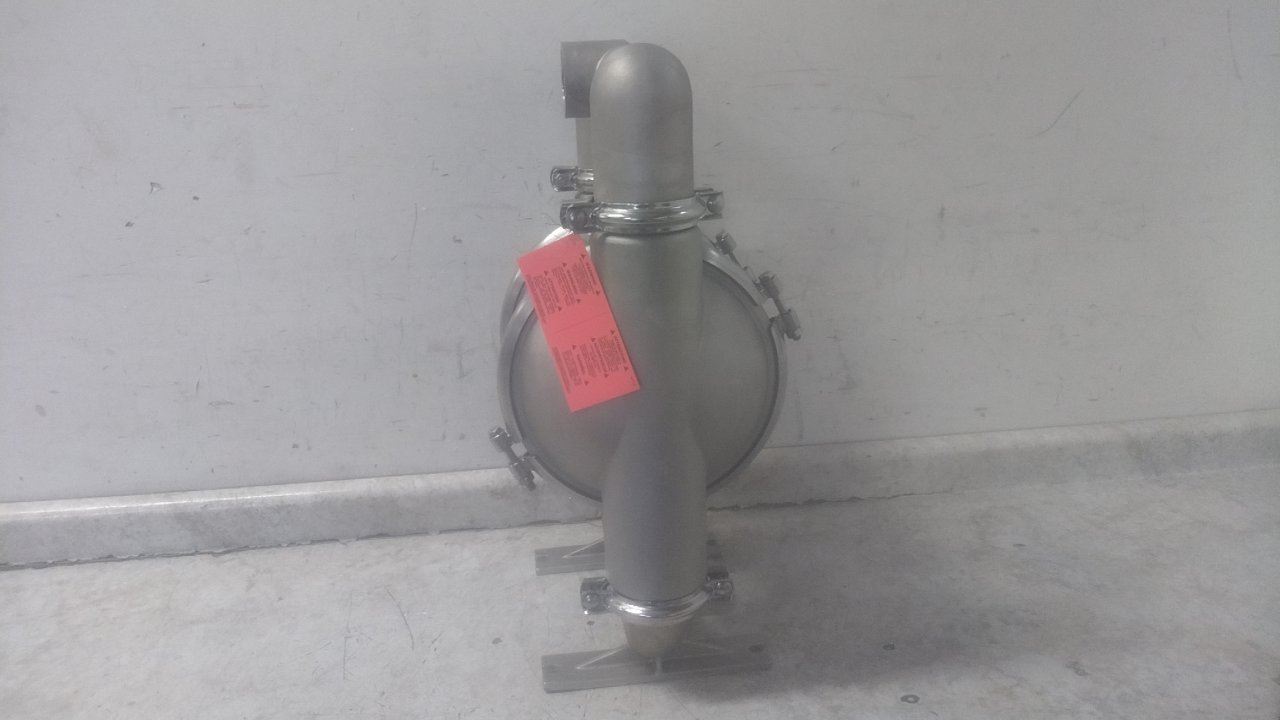

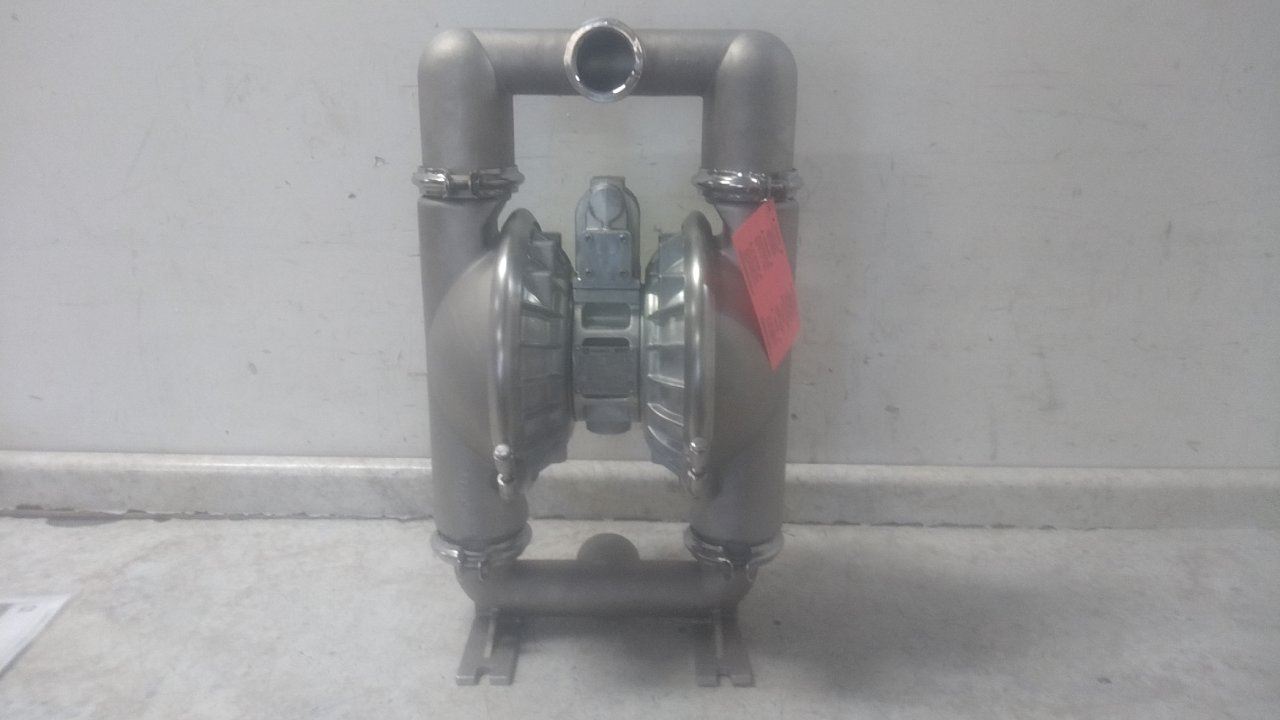

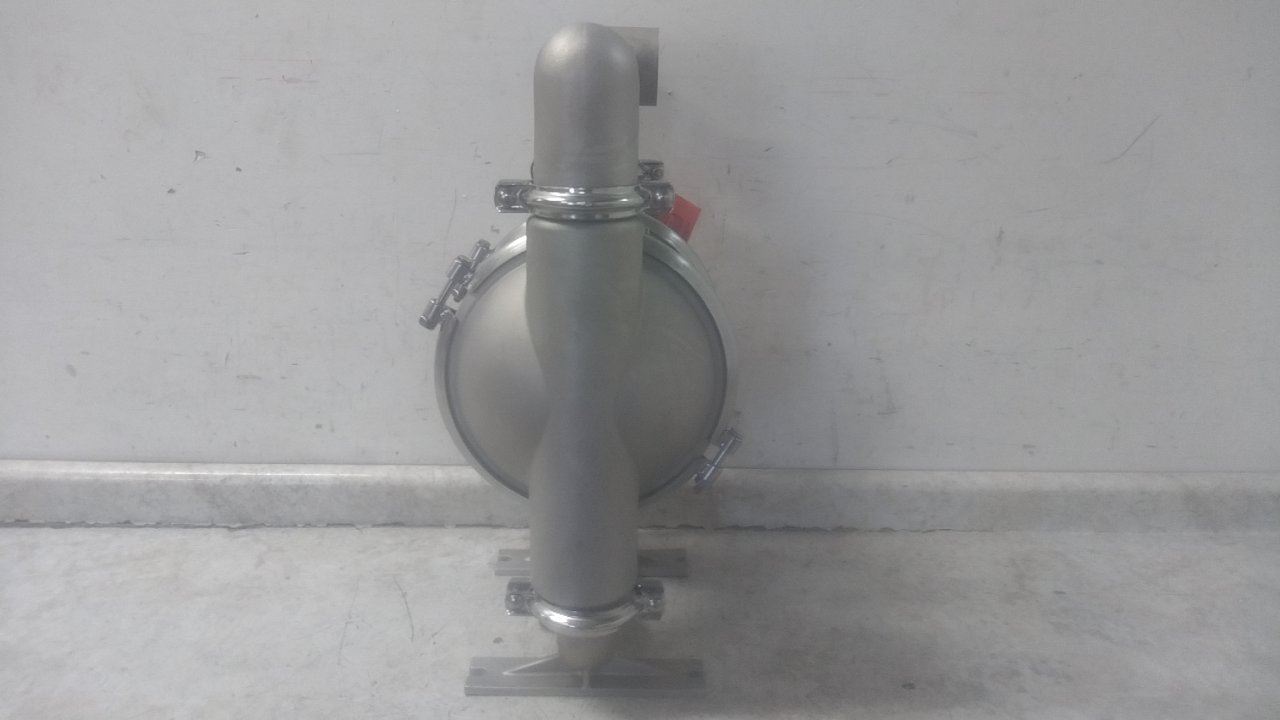

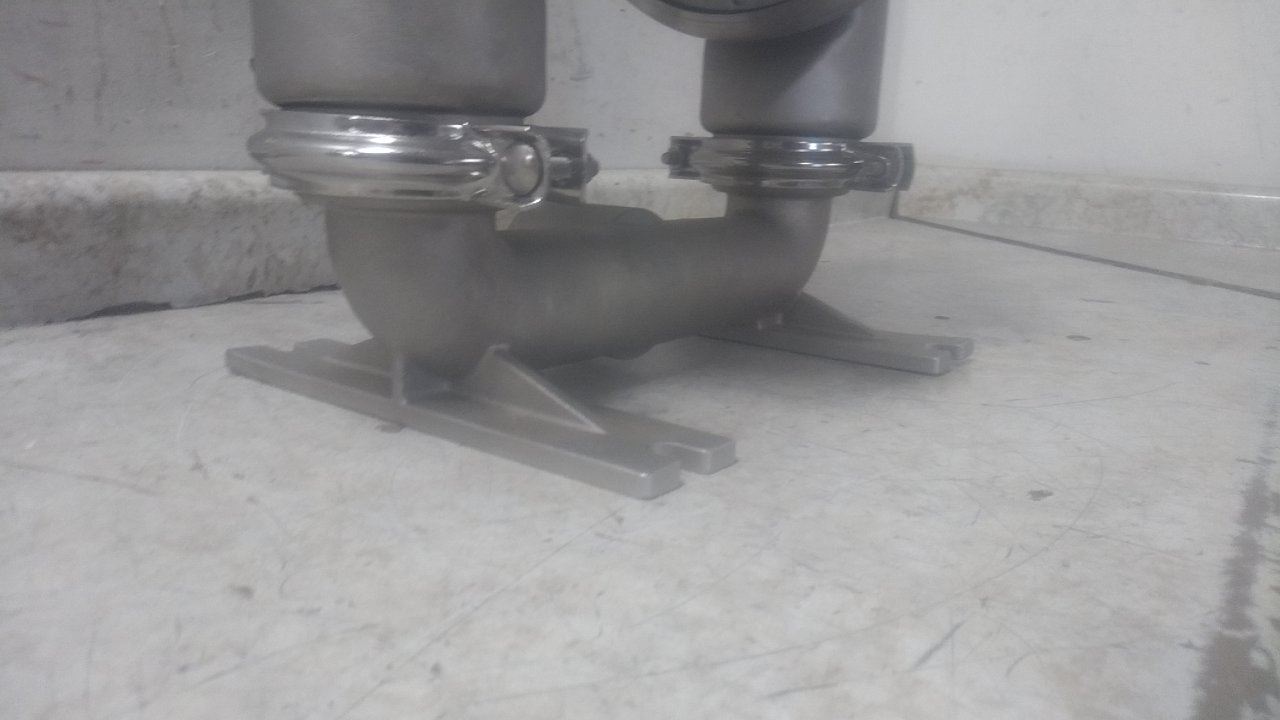

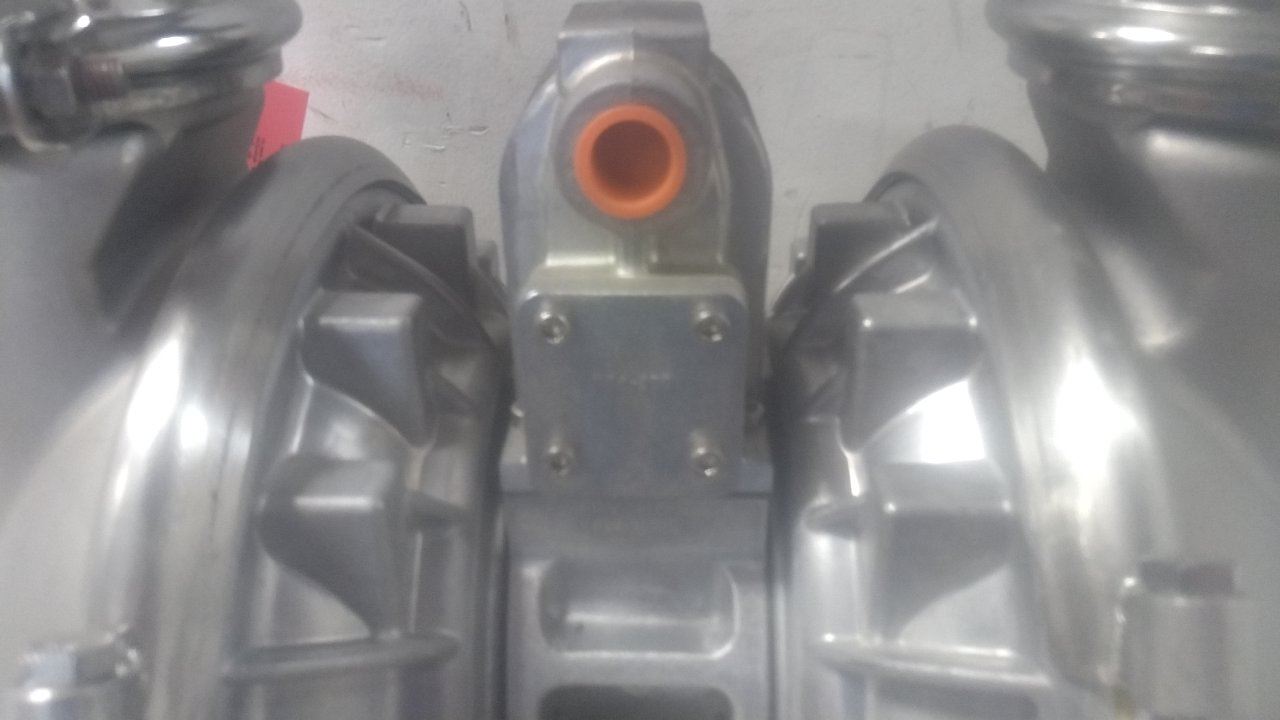

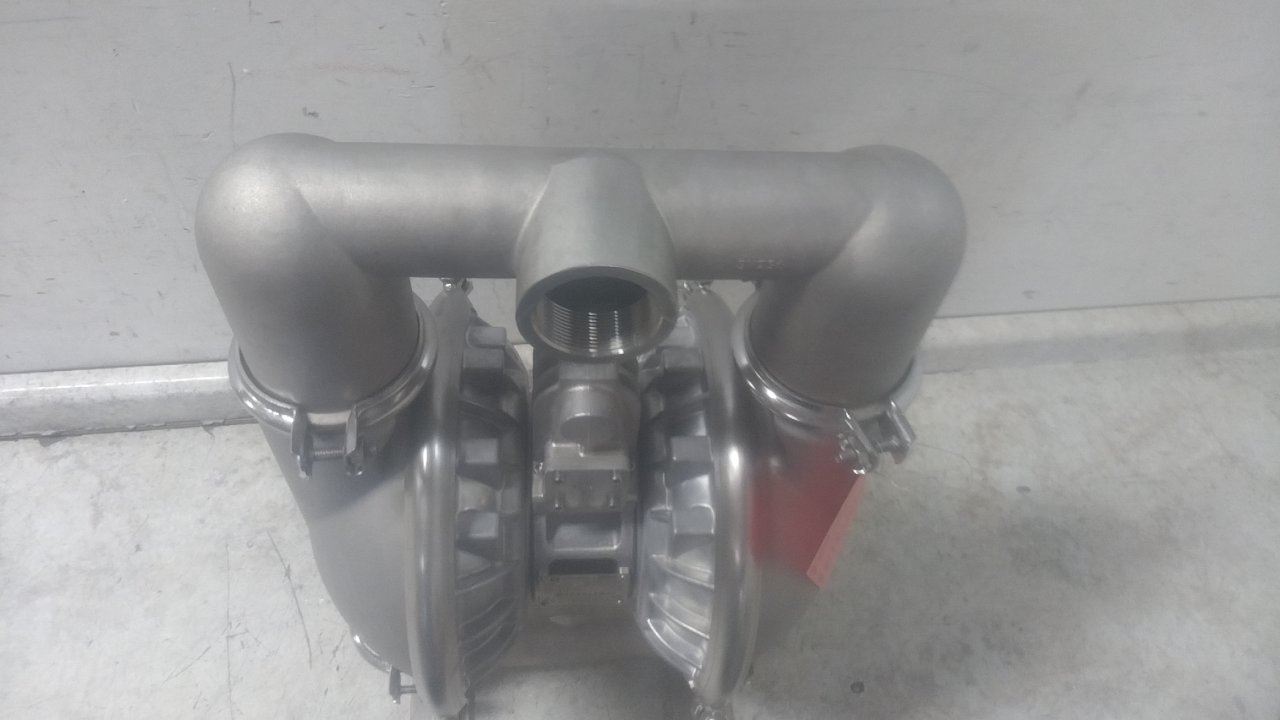

We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Double Diaphragm Pump |

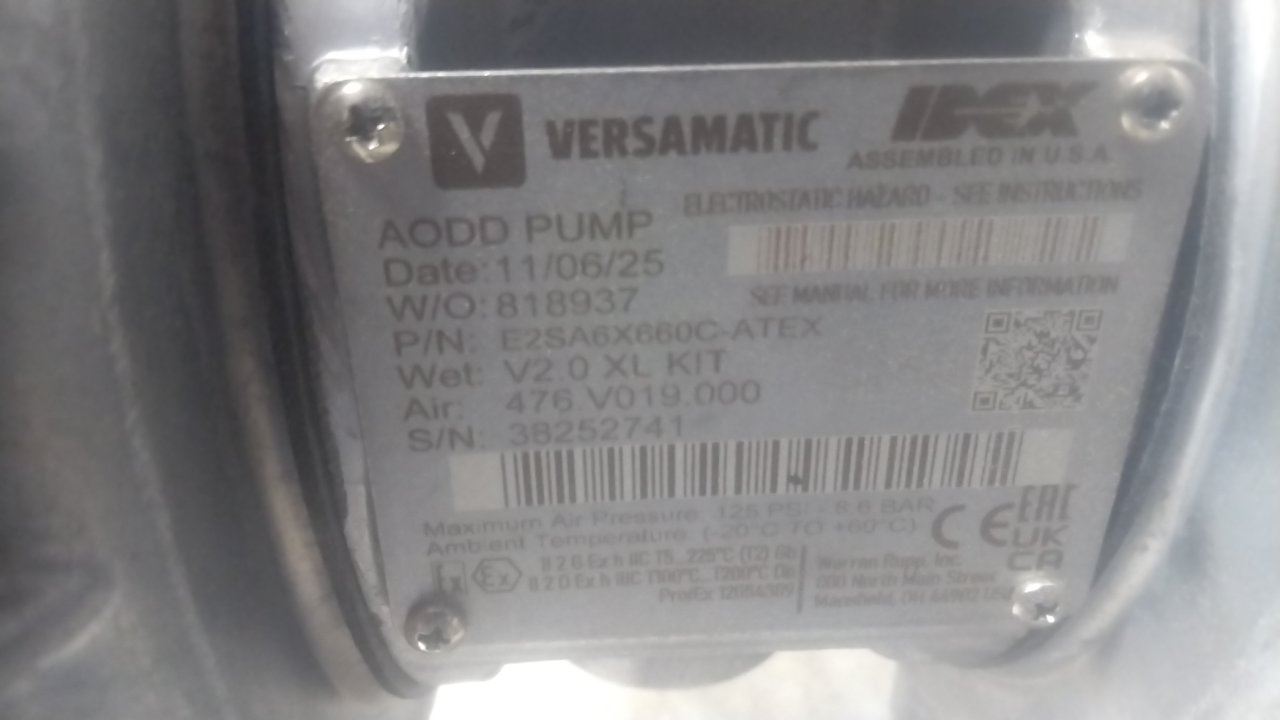

| Manufacturer Part Number | E2SA6X660C-ATEX |
| Power Source | Air |
| Housing Material | 316 Stainless Steel |
| Diaphragm Material | Santoprene |
| Valve Material | Santoprene |
| Check Seat Material | Santoprene |
| Center Section Material | Aluminum |
| Pump Assembly Type | Clamp |
| Manifold Connection | Single Port |

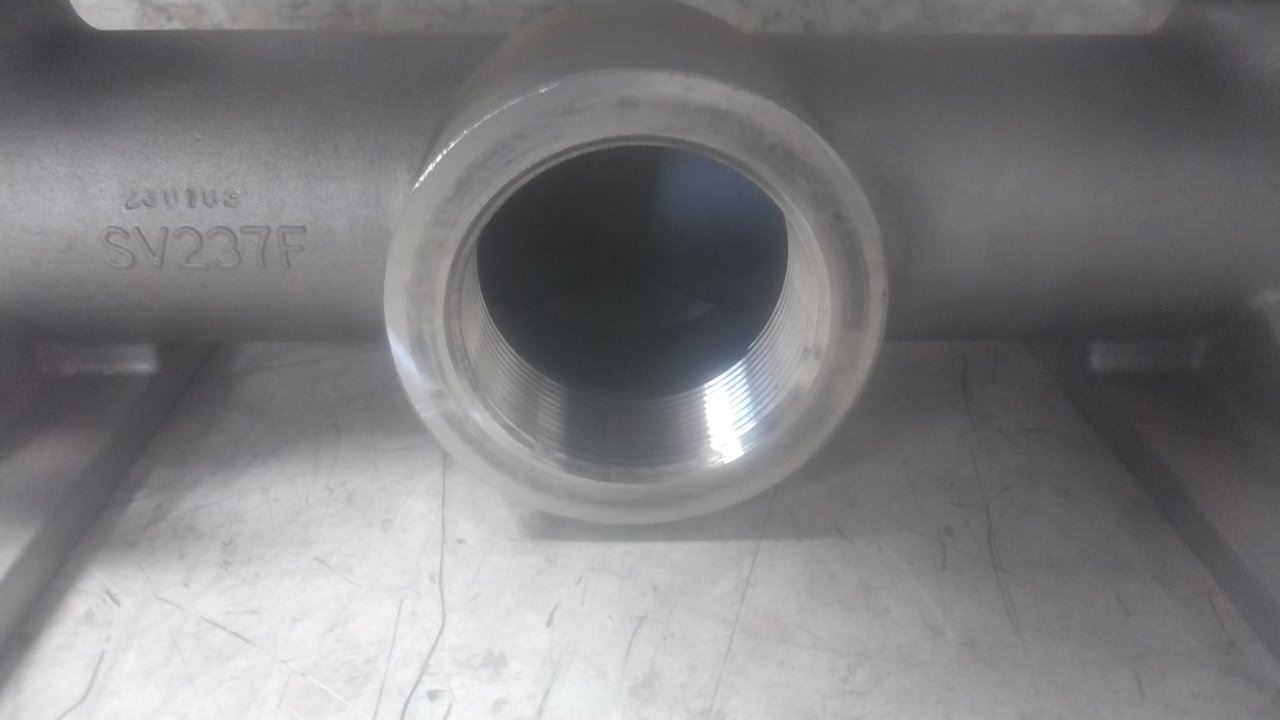

| Fluid Intake Connection | 2 in NPT |
| Fluid Discharge Connection | 2 in NPT |
| Max. Flow Rate | 160 gpm |
| Manifold Connection Type | NPT |
| Flow Rate @ 20 psi | 82.1 gpm |
| Flow Rate @ 40 psi | 108.5 gpm |
| Flow Rate @ 60 psi | 124.1 gpm |
| Flow Rate @ 80 psi | 136.4 gpm |
| Flow Rate @ 100 psi | 146.5 gpm |
| Max. Discharge Pressure | 125 psi |
| Max. Feet of Head | 320 ft |
| Max. Solid Dia. | 0.25 in |
| Max. Media Temperature | 300 °F |
| Chemical Compatibility | Alcohol; Ammonium Hydroxide; Potassium Hydroxide 50%; Sodium Hydroxide 10%; Sodium Hydroxide 20%; Sodium Hydroxide 50%; Sodium Hypochlorite 10%; Sodium Hypochlorite 20%; Sulfuric Acid 10%; Sulfuric Acid 20%; Sulfuric Acid 30%; Sulfuric Acid 40%; Sulfuric Acid 50%; Sulfuric Acid 60%; Sulfuric Acid 70%; Sulfuric Acid 80%; Water |
| Air Consumption | 140 scfm |
| Air Inlet | 1/2 in NPT |
| Rated Air Pressure | 125 psi |
| Valve Type | Ball |
| Priming | Self-Priming |
| Duty Cycle | Continuous |
| Media Intake Location | Bottom; Center |
| Media Discharge Location | Center; Top |
| For Use With Potable Systems | No |
| Overall Height | 26.7 in |
| Overall Length | 13.5 in |
| Overall Width | 17.7 in |
| Series Family | E2 |
