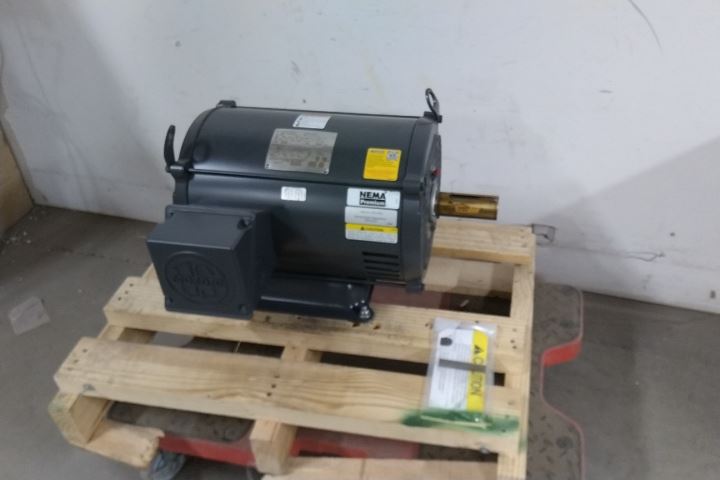

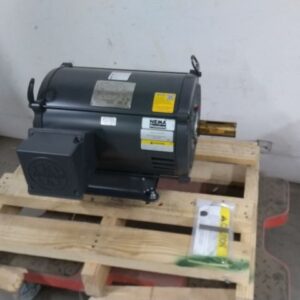

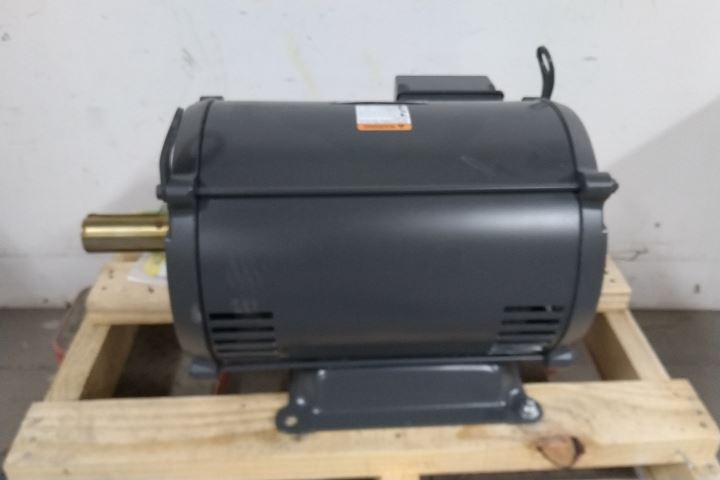

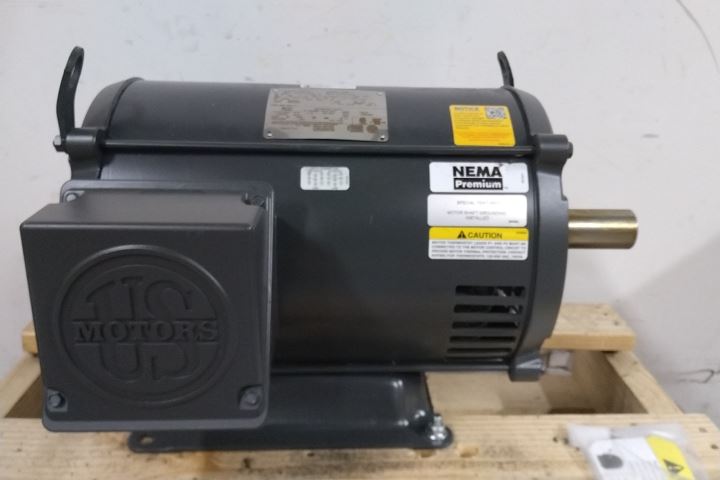

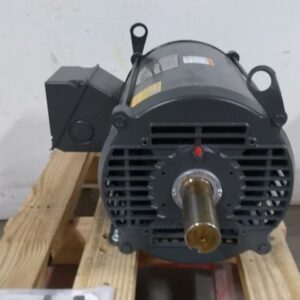

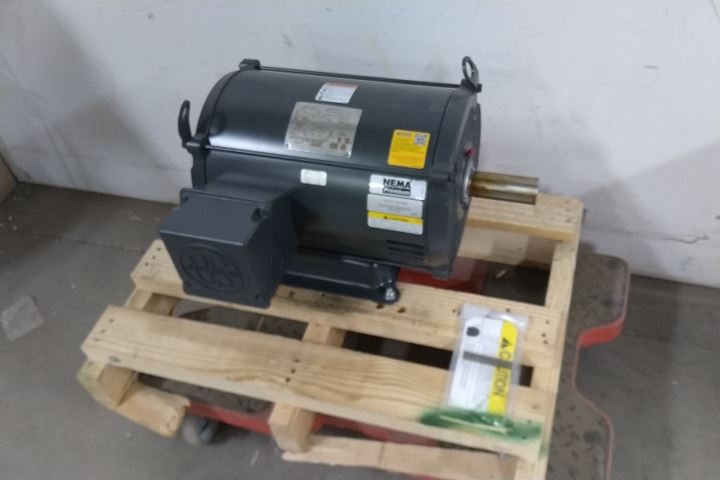

This is a U.S. Motors general purpose motor. Please refer to the technical specifications in the listing for more information.

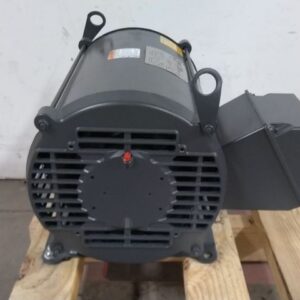

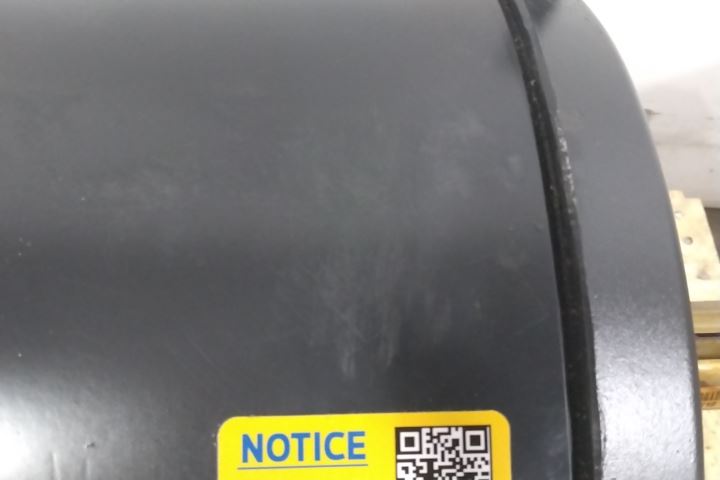

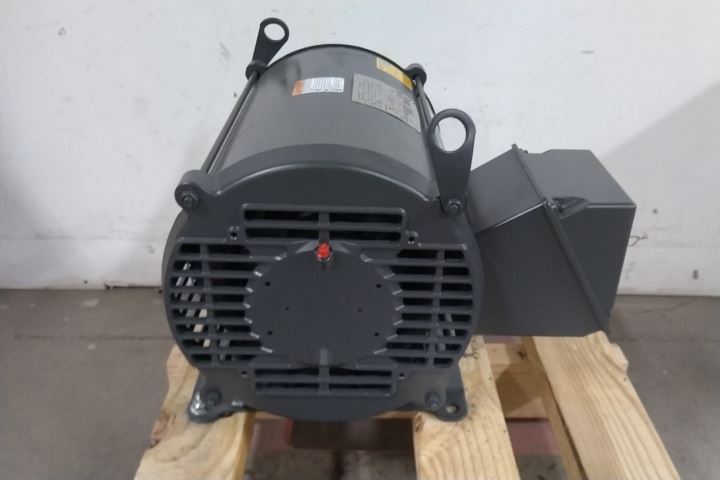

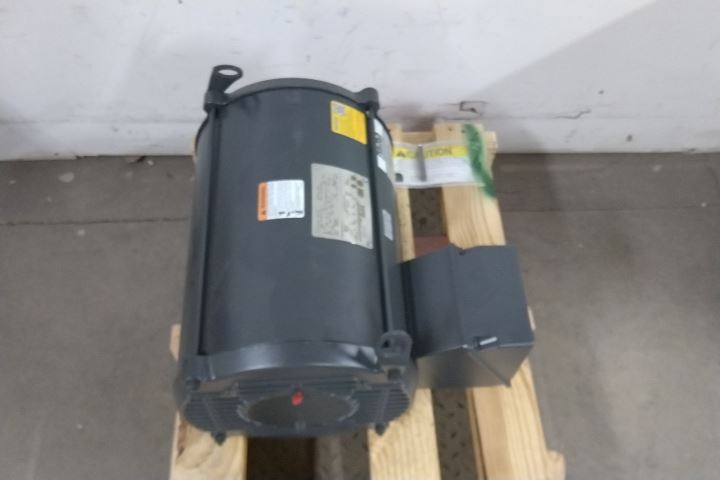

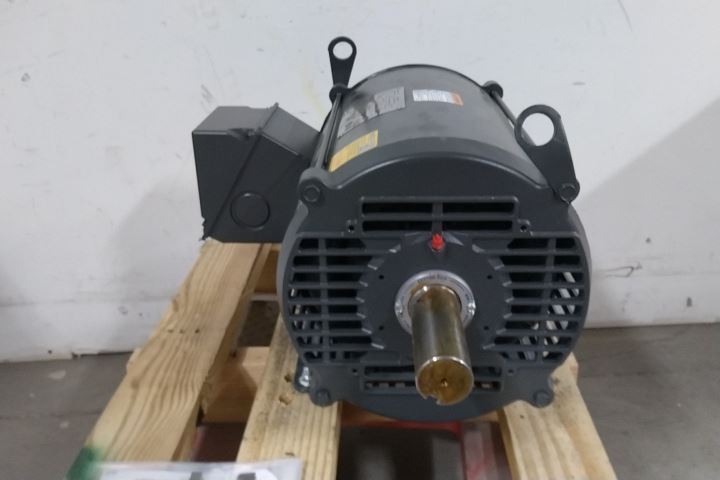

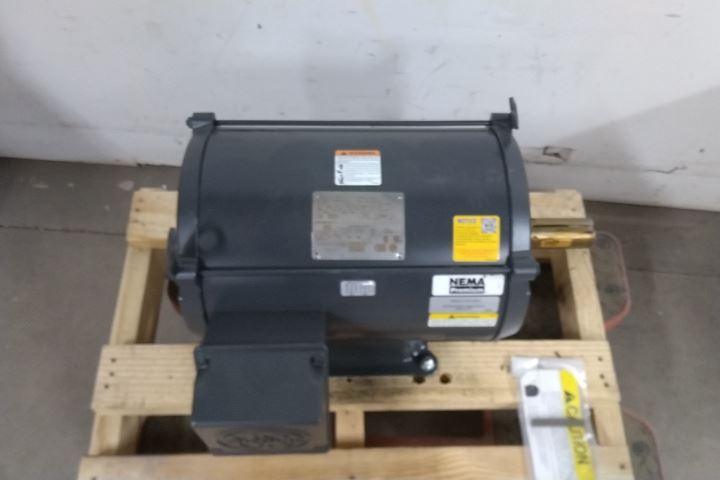

We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. The top hooks are bent. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.

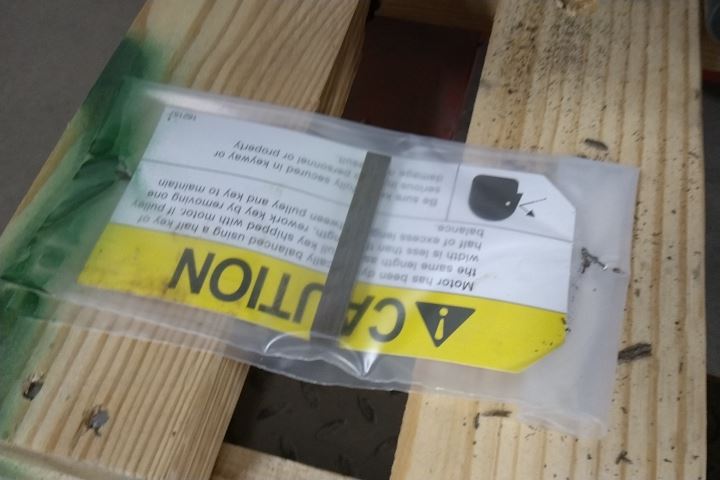

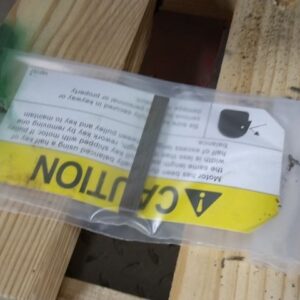

This unit only includes what is photographed in the listing.

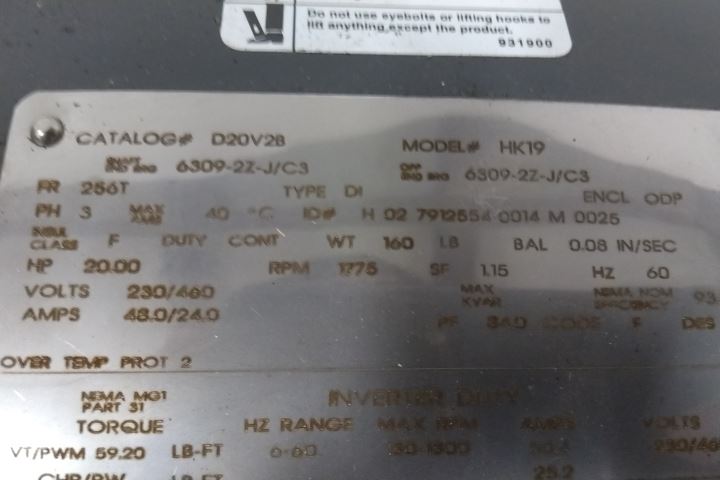

Technical Specs
| Item | General Purpose Motor |
| Manufacturer Part Number | D20V2B |
| Motor Application | General Application |
| Motor Sub Application | Blowers; Fans; Pumps |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| No. of Speeds | 1 |
| HP | 20 hp |
| Nameplate RPM | 1,775 |
| Voltage | 230/460V AC |
| Hz | 60 Hz |
| Full Load Amps | 48.0/24.0 A |
| Phase | Three |
| Duty Cycle | Continuous |
| Frame | 256T |
| Motor Service Factor | 1.15 |
| Max. Ambient Temp. | 40 °C |
| Motor Thermal Protection | None |
| Ins. Class | F |
| NEMA Design | B |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Inverter Rated | Yes |

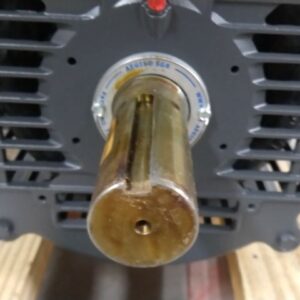

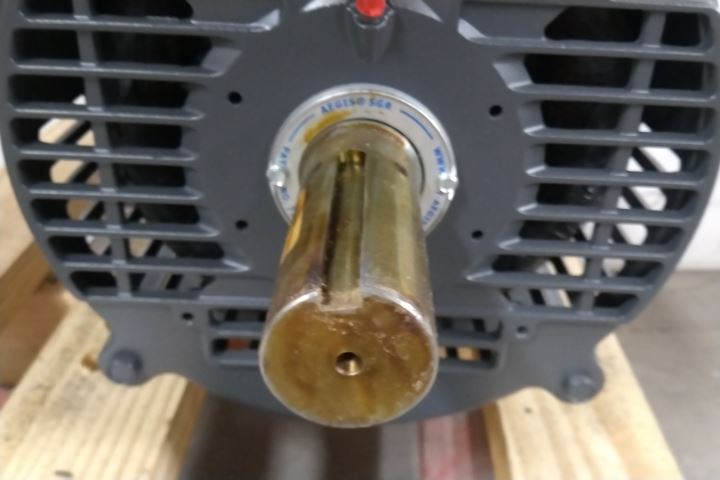

| Motor Shaft Design | Keyed |
| Removable Base | Regreasable Bearings |
| Motor Frame Material | Steel |
| Shaft Dia. | 1-5/8 in |
| Shaft Length | 4 in |
| Bearing Protection | Double Shields |
| Length Less Shaft | 16-3/8 in |
| Overall Length | 20-3/8 in |
| Weight | 160 lb |
| Nominal Efficiency | 93 % |
| CC Number | CC030A |
