Description

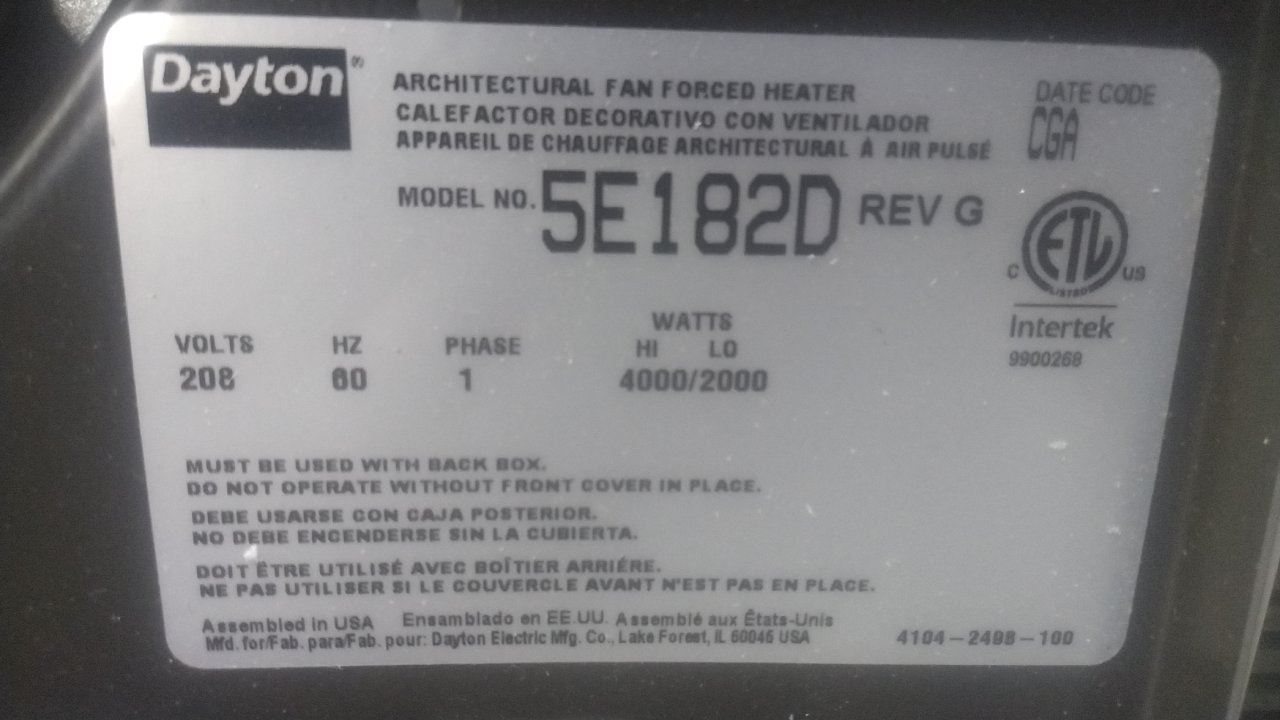

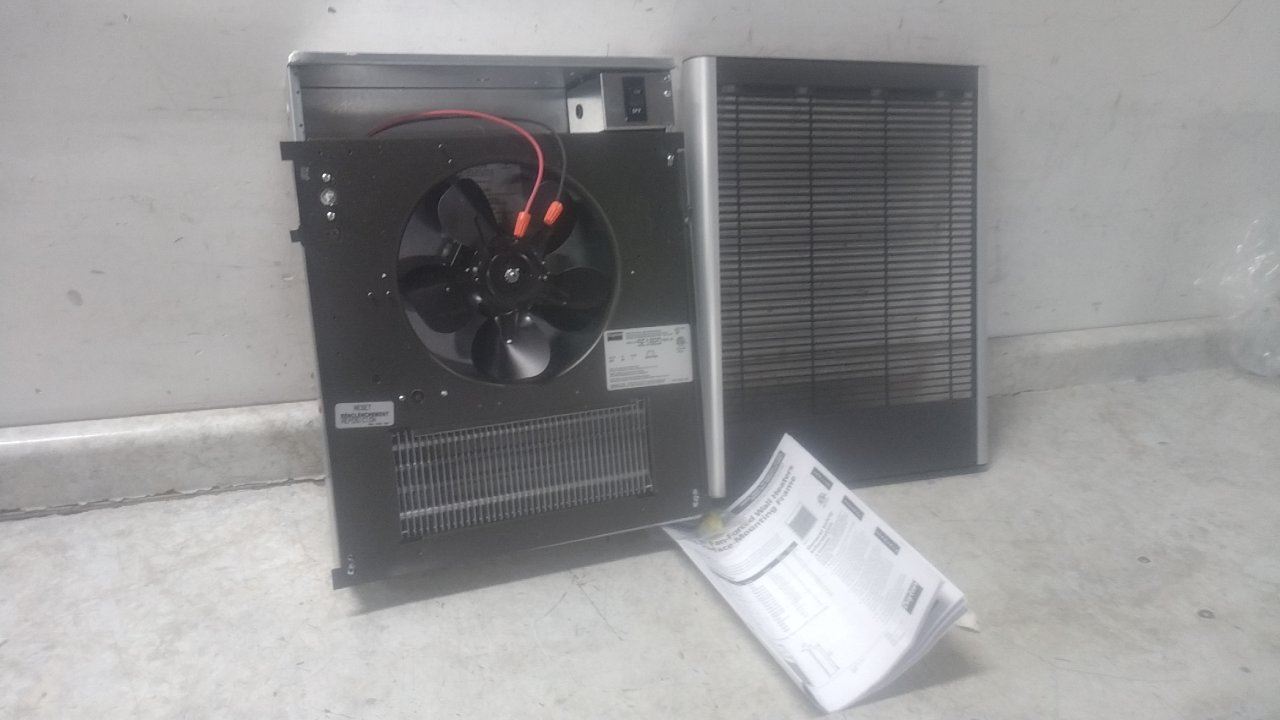

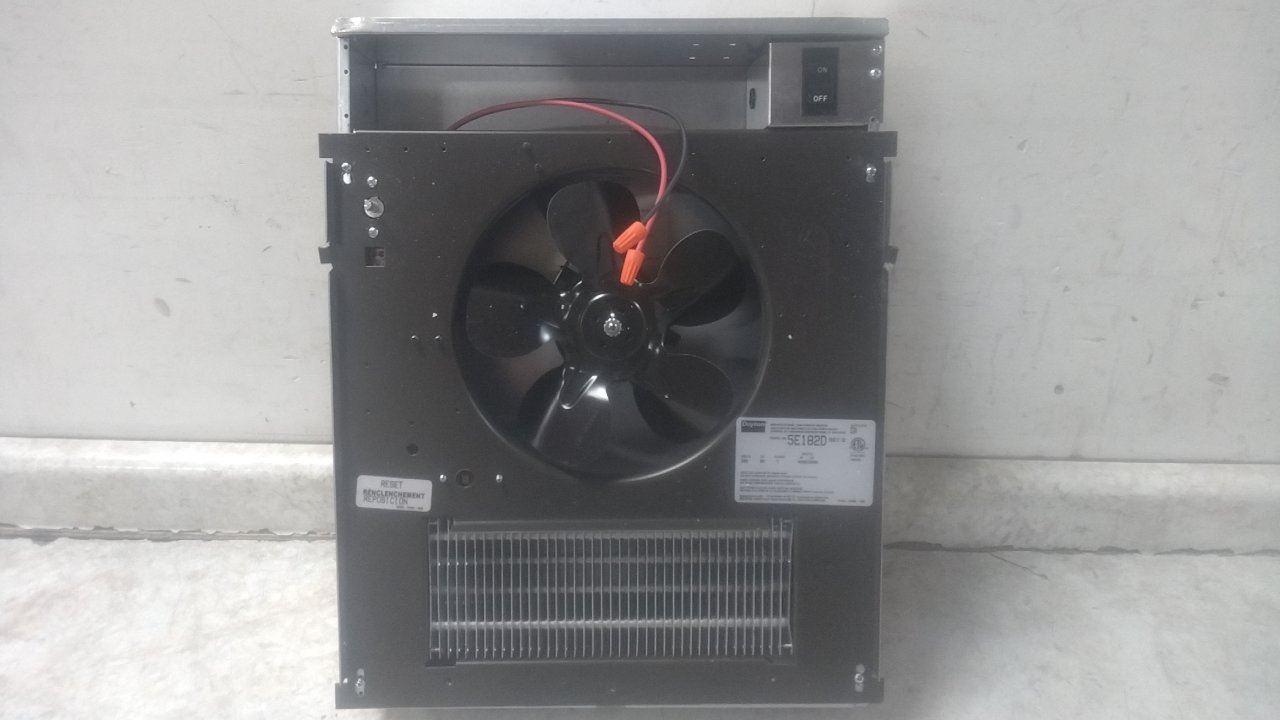

This is a Dayton recessed electric wall-mount heater. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. This unit shows slight signs of wear and may have been used before. It may also be missing pieces/hardware. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Recessed Electric Wall-Mount Heater |
| Rough-In Height | 18-1/4 in |
| Rough-In Width | 14-1/4 in |
| Rough-In Depth | 3-7/8 in |
| Voltage | 208VAC |
| Phase | 1 |
| Wattage Output | 2000 W/4000 W |
| Control Type | Mechanical Selector Dial |
| Programming Capability | Not Programmable |
| Smart Connectivity | No Connectivity |
| Tamper Resistant | Yes |
| Thermal Overheat Protection | Manual Reset |
| Thermostat Contact Type | Double Pole |
| Hold Function | No |
| Automatic Fan Delay (On/Off) | Yes |
| Building Management System Compatible | No |
| Disconnect Switch | Yes |
| Fan Only Operation | No |
| Setback Control | No |
| Remote Control Functions | No Remote Control Included |
| Heating Capacity | 6,824/13,650 BtuH |
| Heating Method | Fan Forced |

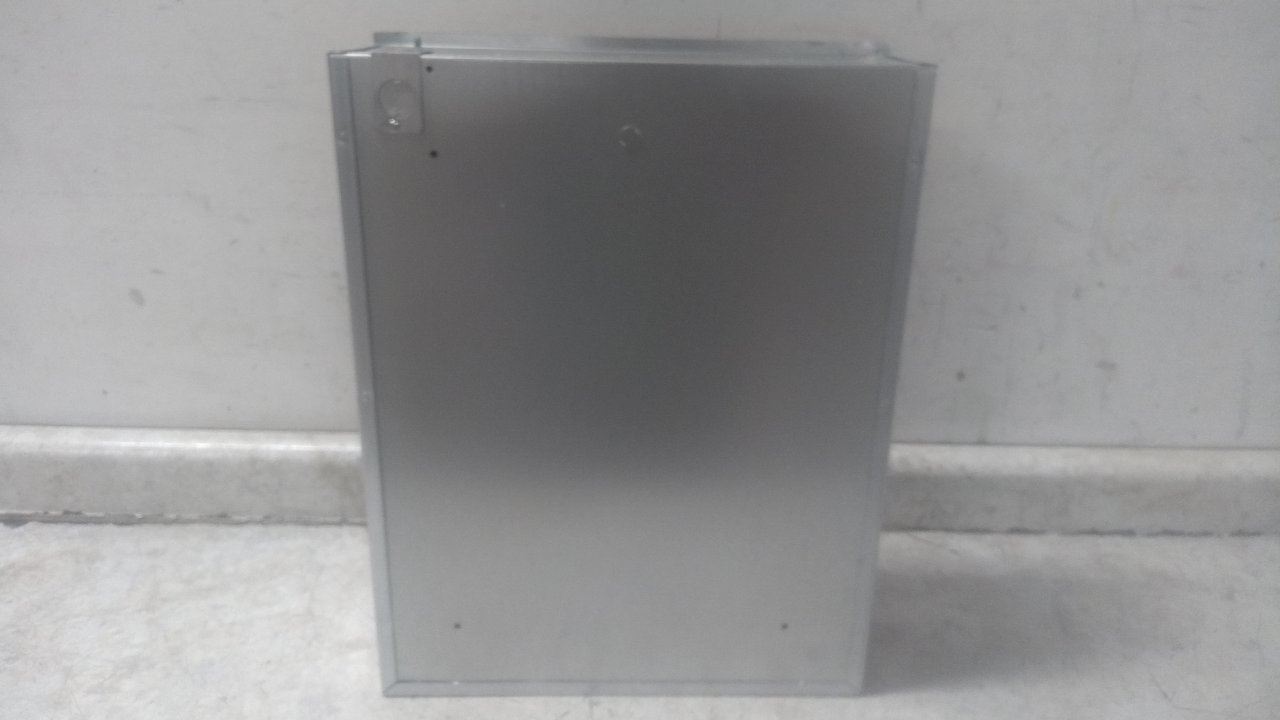

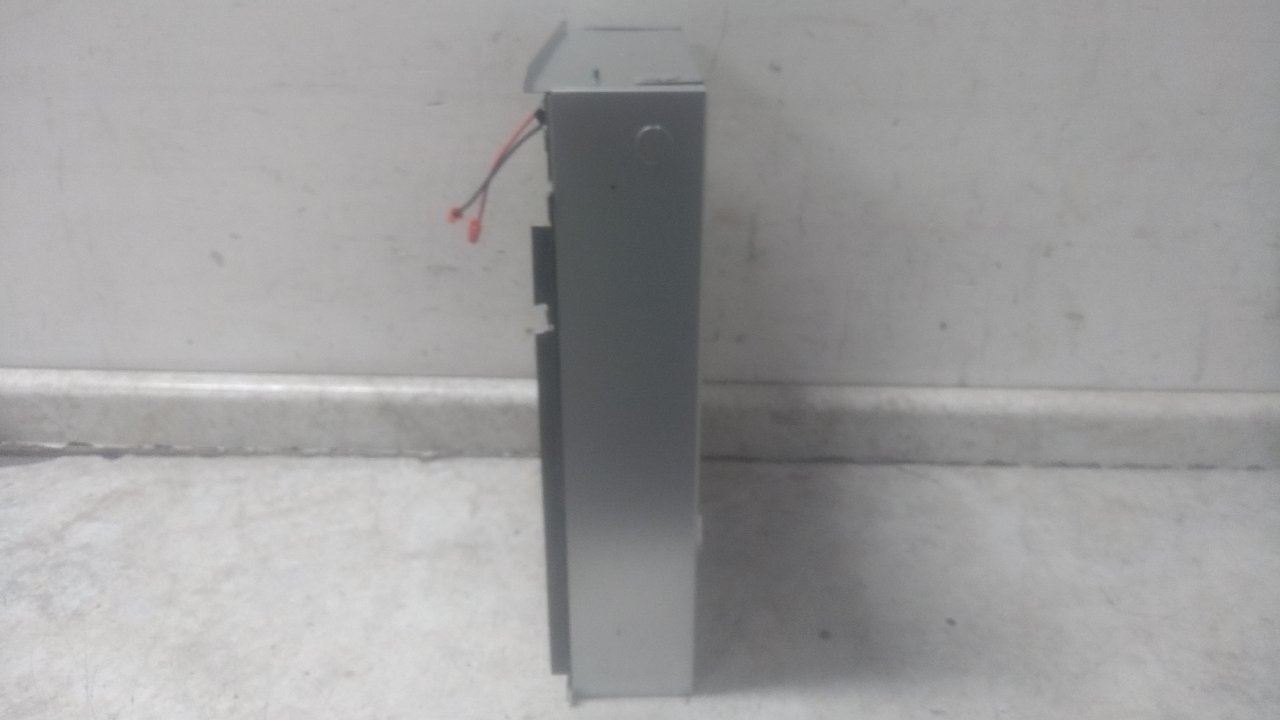

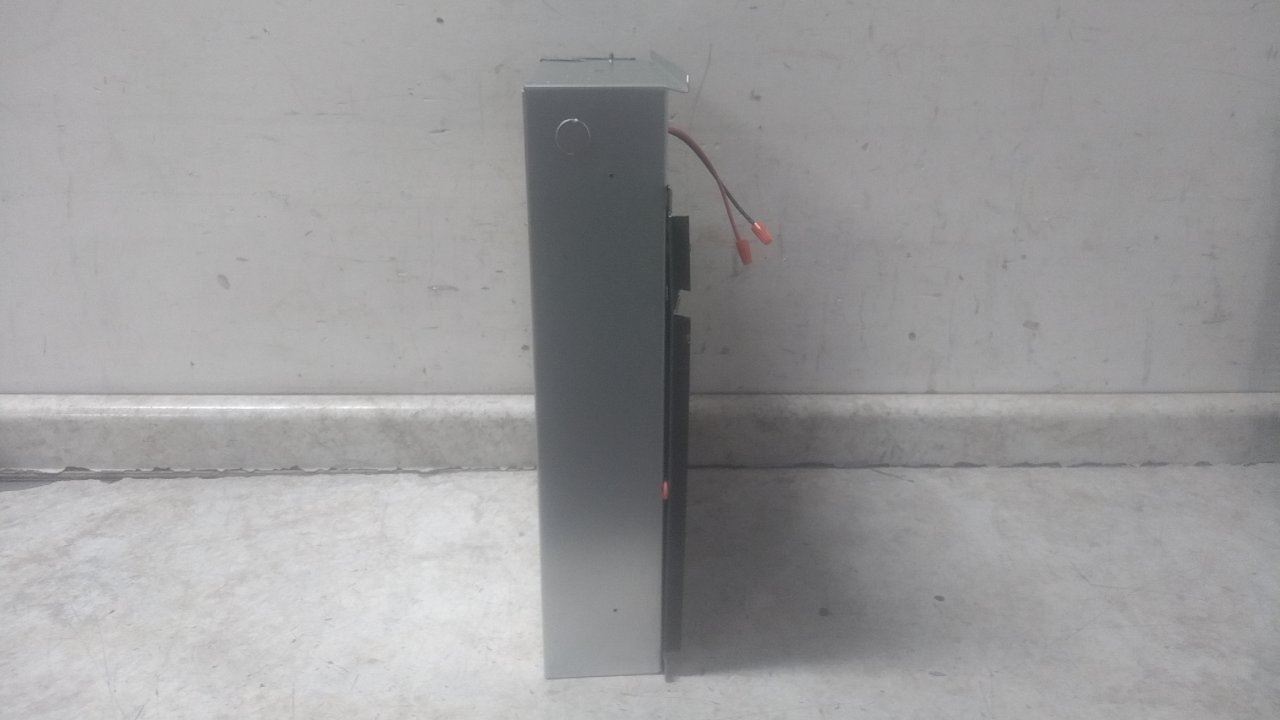

| Housing Depth | 3-7/8 in |
| Housing Height | 18-1/4 in |
| Housing Width | 14-5/16 in |
| Housing Material | Steel |

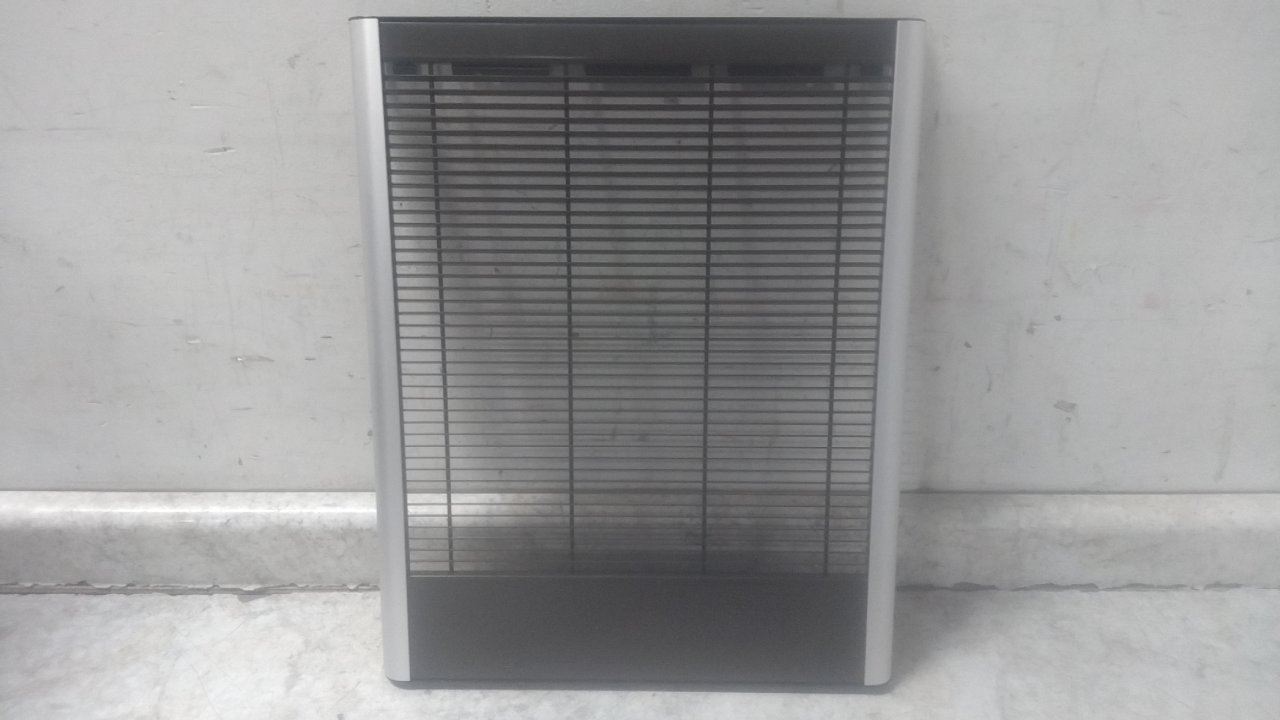

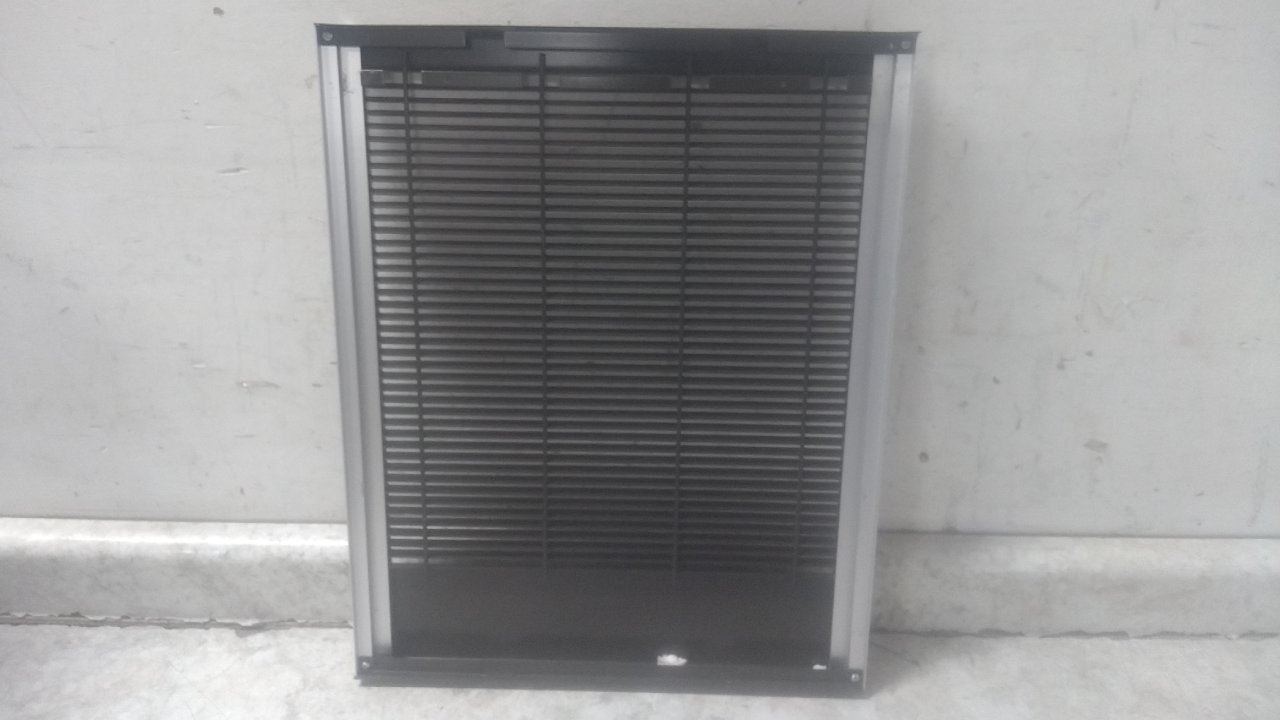

| Grille Depth | 1-1/2 in |
| Grille Height | 19-3/16 in |
| Grille Width | 15-3/4 in |
| Grille Color | Bronze |
| Grille Finish | Enamel |
| Grille Material | Steel |
| Filter Included | No |
| Wattage Field Convertible | Yes |
| Air Flow | 100 cfm |
| Air Temp. Rise | 105 °F |
| Amperage | 9.6 A/19.2 A |
| Frequency | 60 Hz |
| Heater Mounting Position | Horizontal Burn |
| Minimum Mounting Distance from Ceiling | 36 in |
| Minimum Mounting Height from Floor | 8 in |
