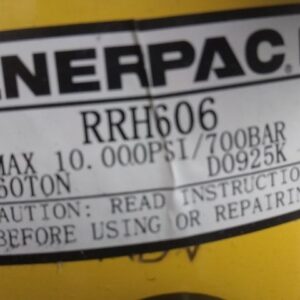

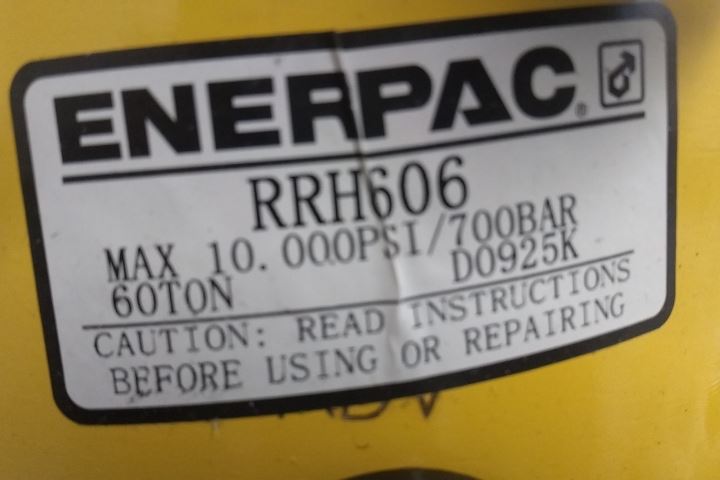

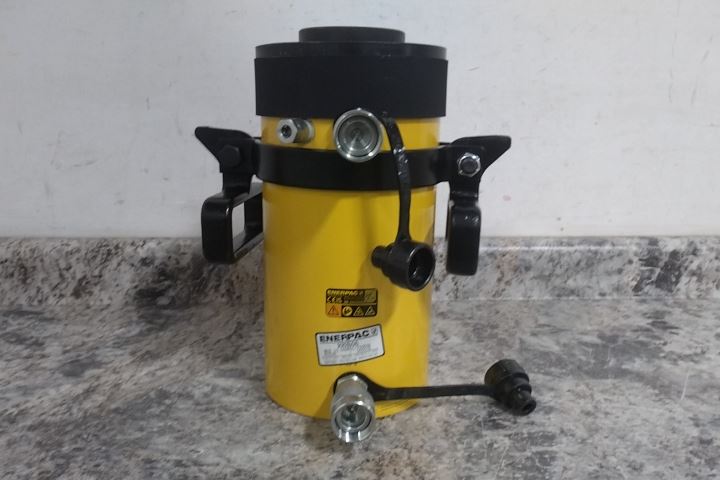

This is an Enerpac general purpose hydraulic ram. Please refer to the technical specifications in the listing for more information.

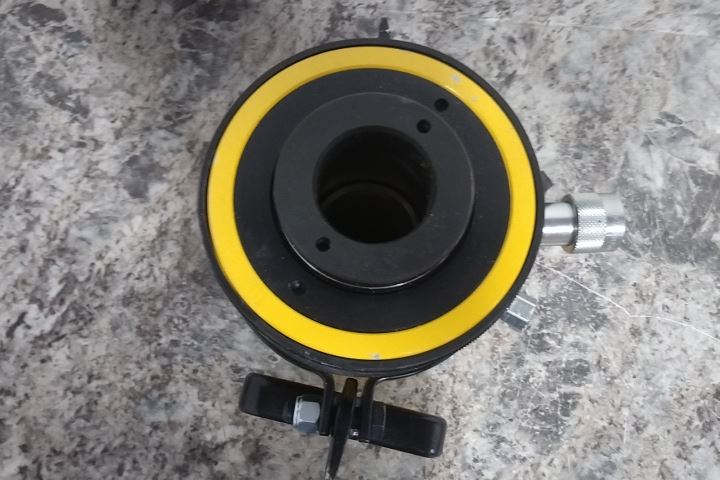

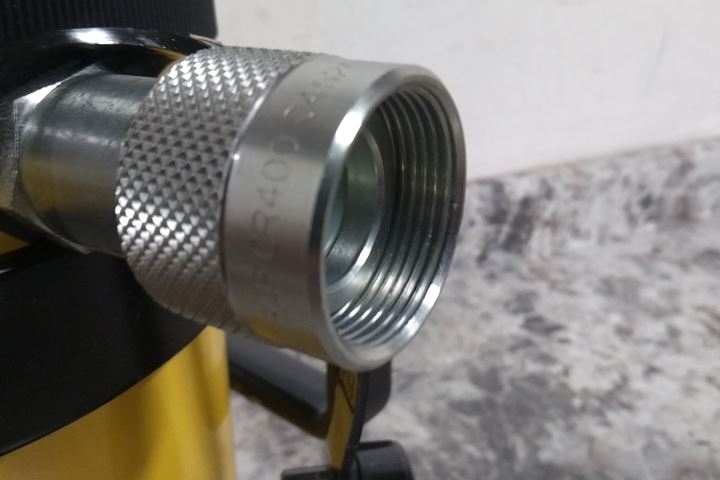

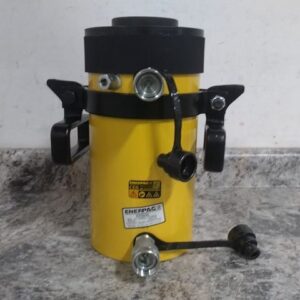

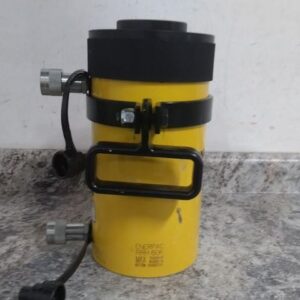

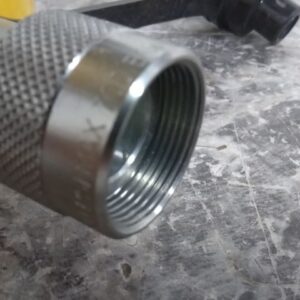

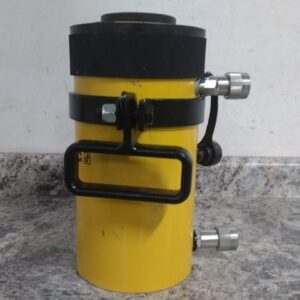

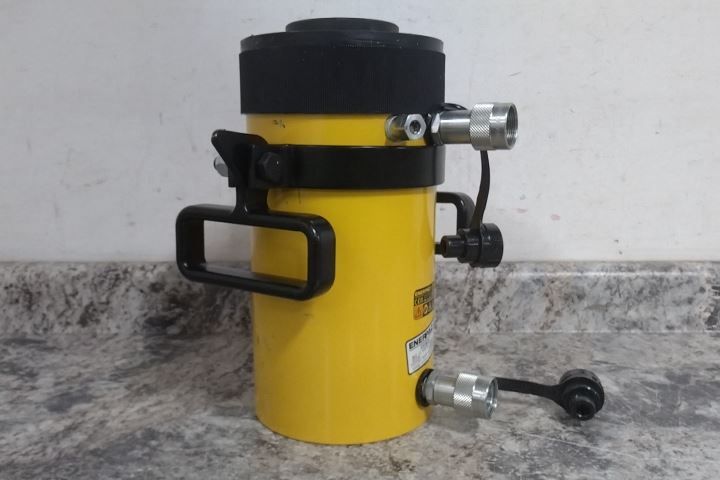

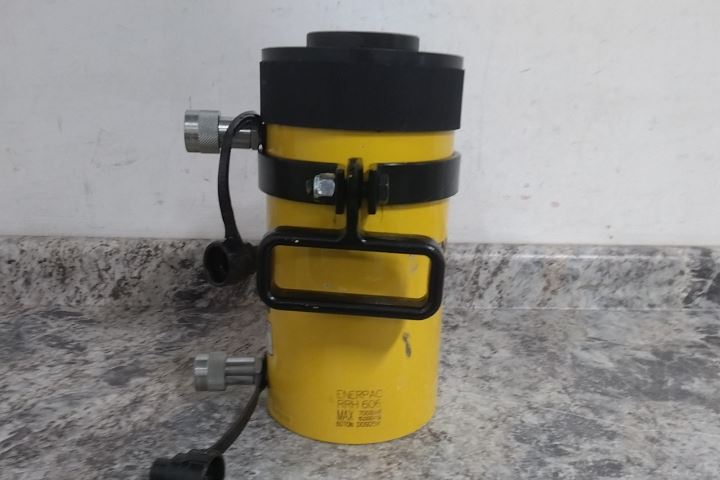

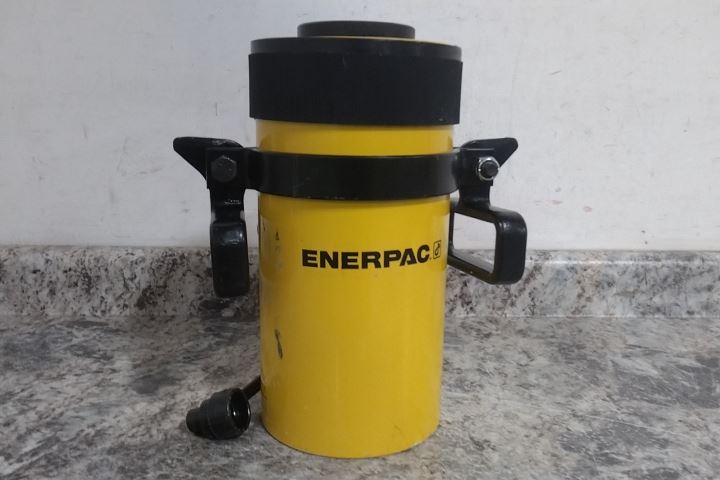

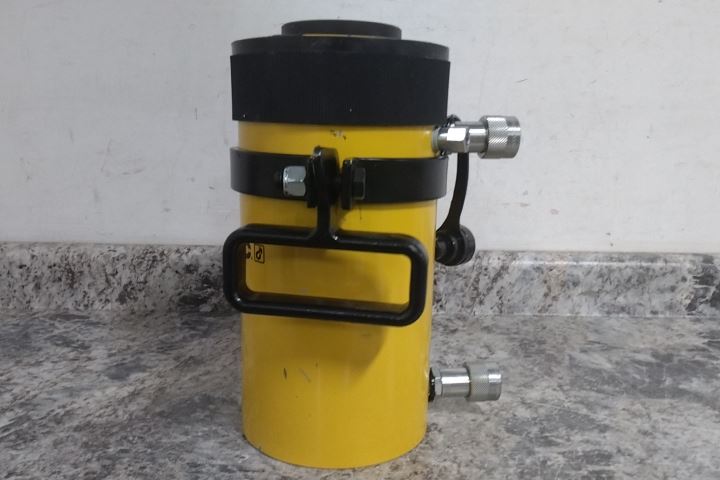

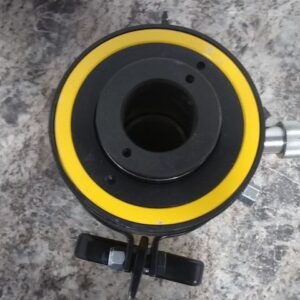

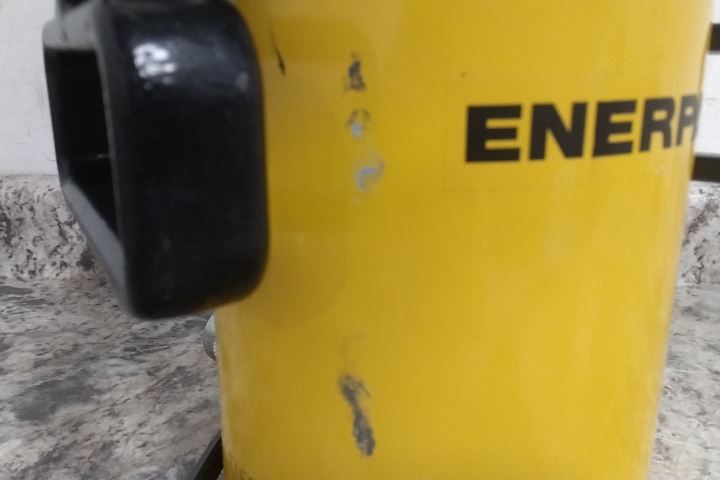

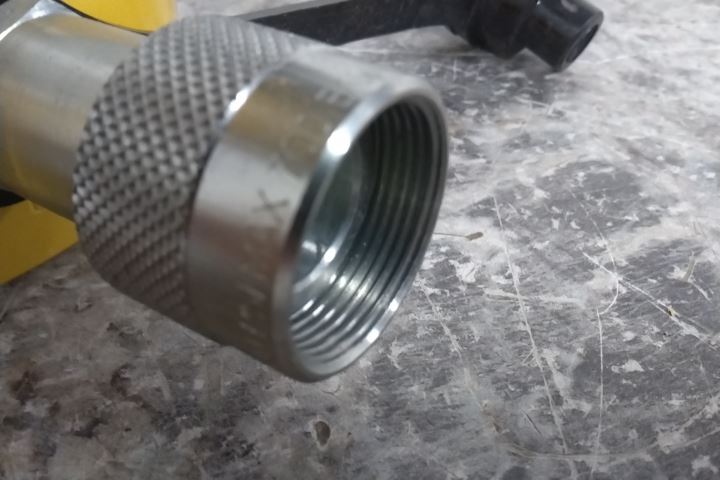

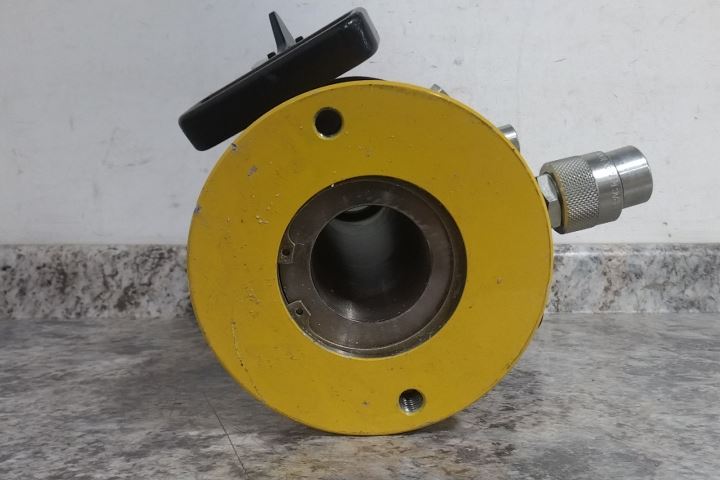

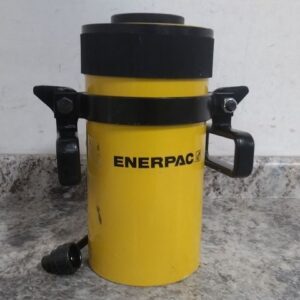

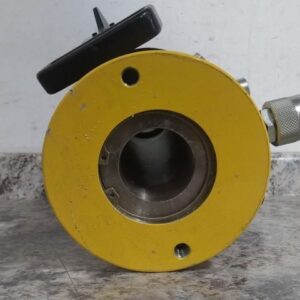

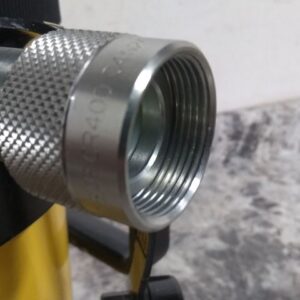

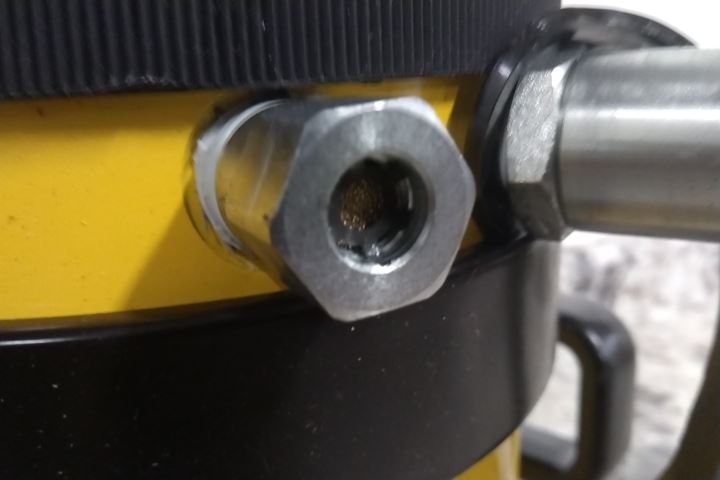

We have inspected this item and we do not have the capability to fully test it. There are some cosmetic scuffs and scratches throughout the unit as well as some paint chipping. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | General Purpose Hydraulic Ram |
| Single Acting/Double Acting | Double Acting |
| Cylinder Type | Hollow Plunger |
| Body Material | Steel |
| Nominal Capacity | 60 ton |
| Max. Push Capacity | 60 ton |
| Stroke Length | 6-1/2 in |
| Nominal Stroke Length | 7 in |
| Effective Push Area | 12.73 sq in |
| Max. Pressure | 10,000 psi |
| Oil Capacity Push | 82.77 cu in |
| Retracted Height | 12.75 in |
| Extended Height | 19.25 in |
| Outside Dia. | 6.25 in |
| Plunger Dia. | 3.63 in |
| Plunger Thread Size | 2-3/4″-16 |
| Collar Thread Size | 6-1/4″-12 |
| Base Bolt Circle Dia. | 5.12 in |
| Base Mounting Thread Size | 1/2″-13 |
| Center Hole Dia. | 2.13 in |
| Series | RRH |
