Description

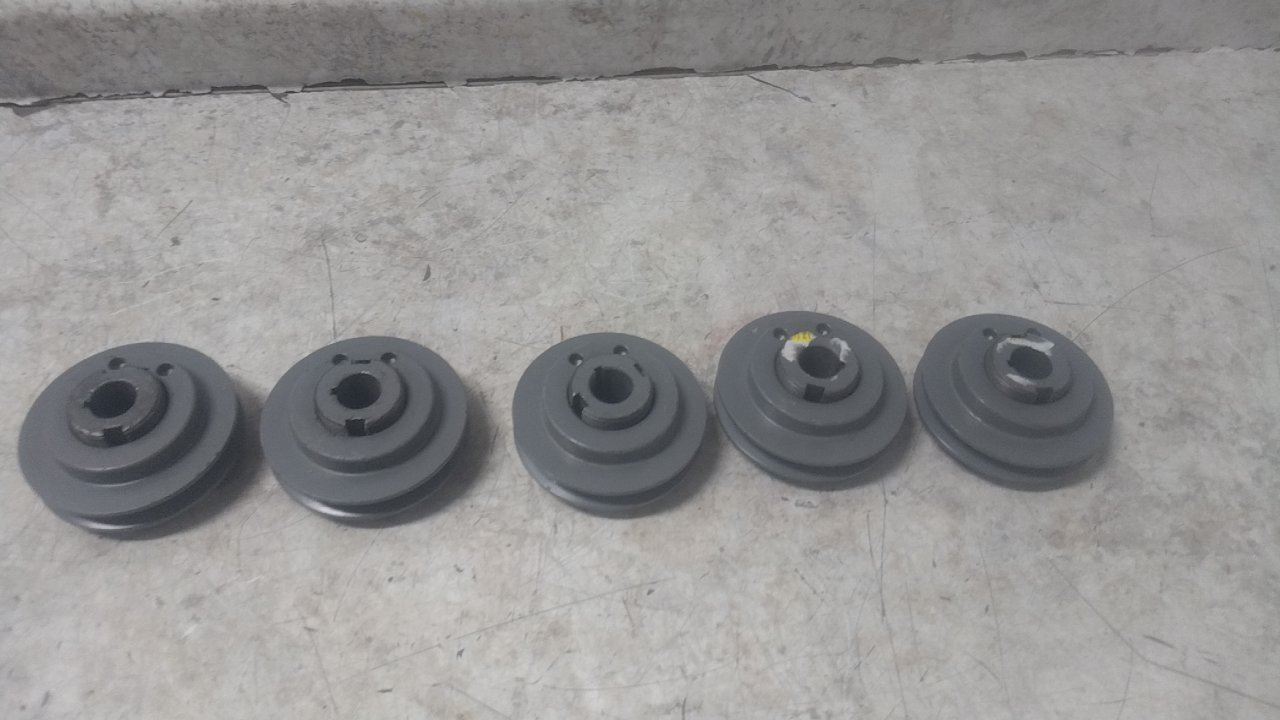

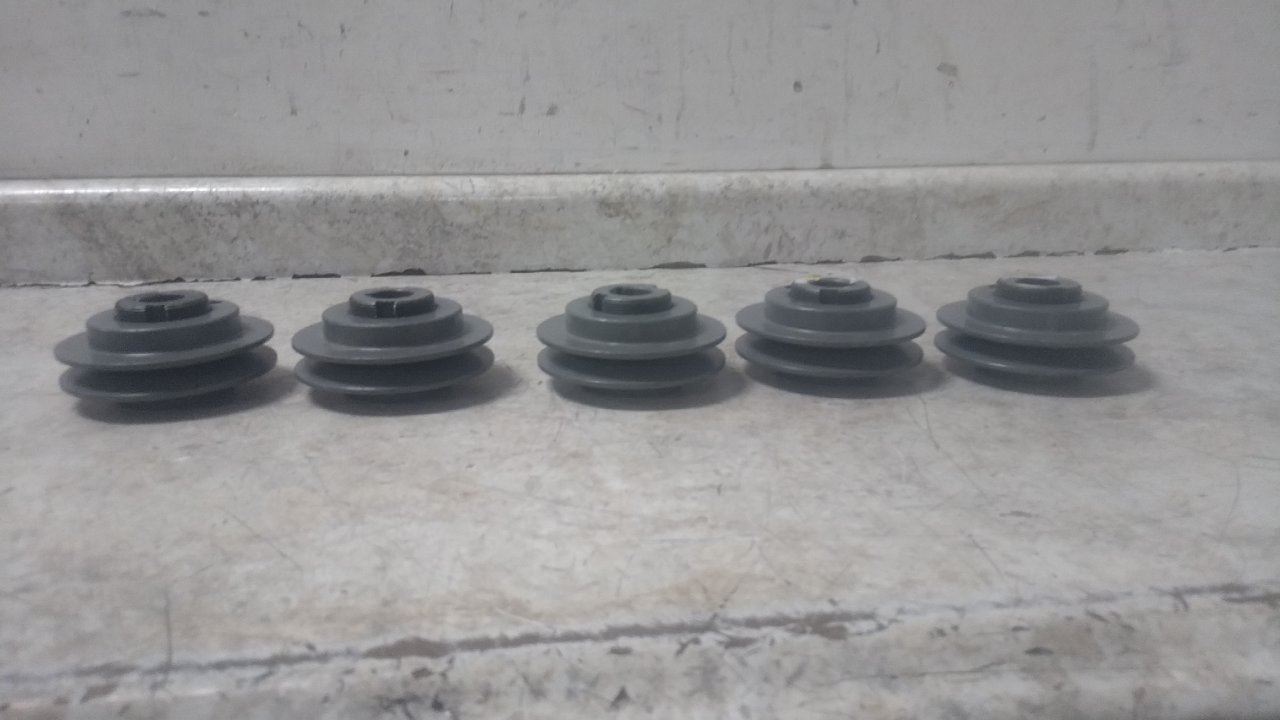

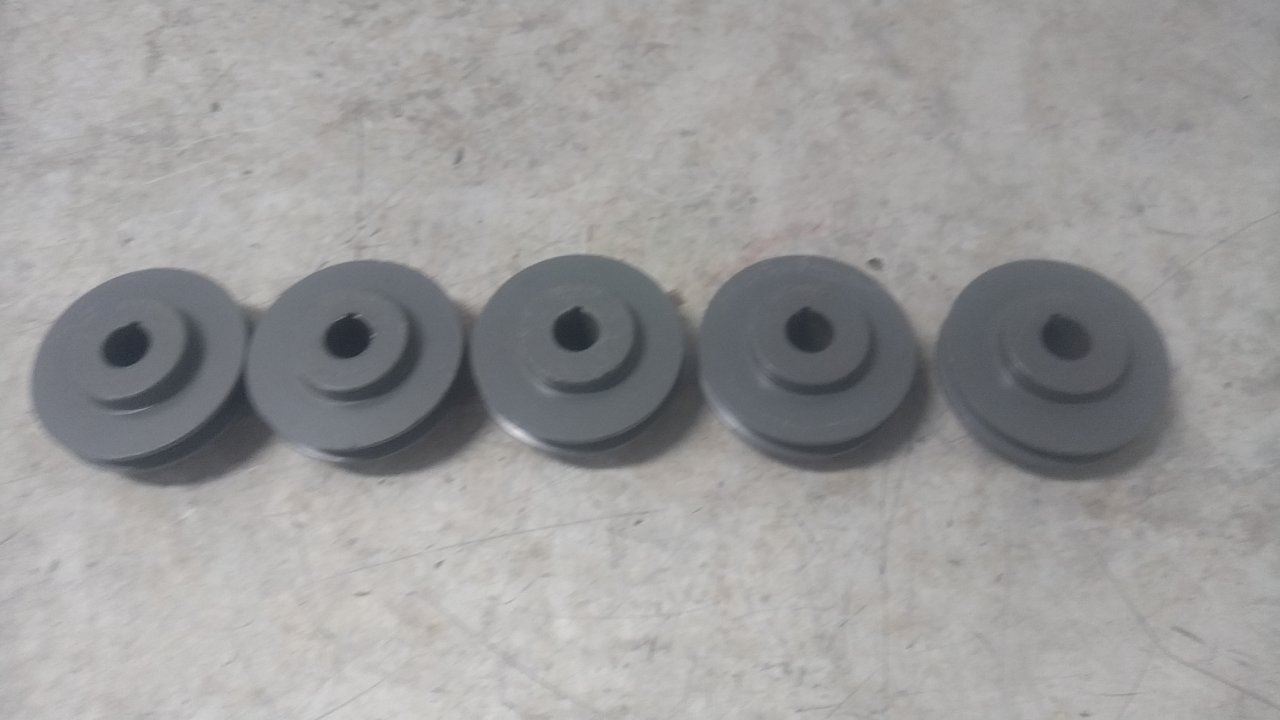

This is a package of 5 Brand Name variable pitch v-belt pulleys. Please refer to the technical specifications in the listing for more information.

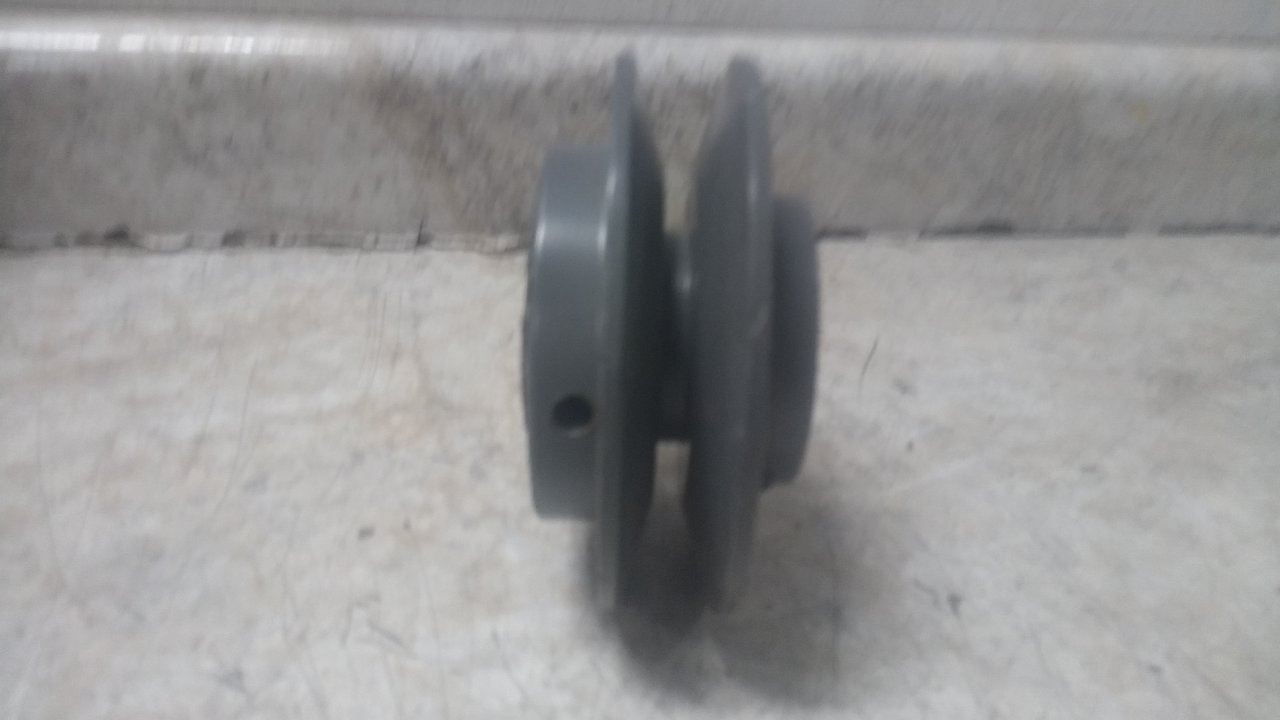

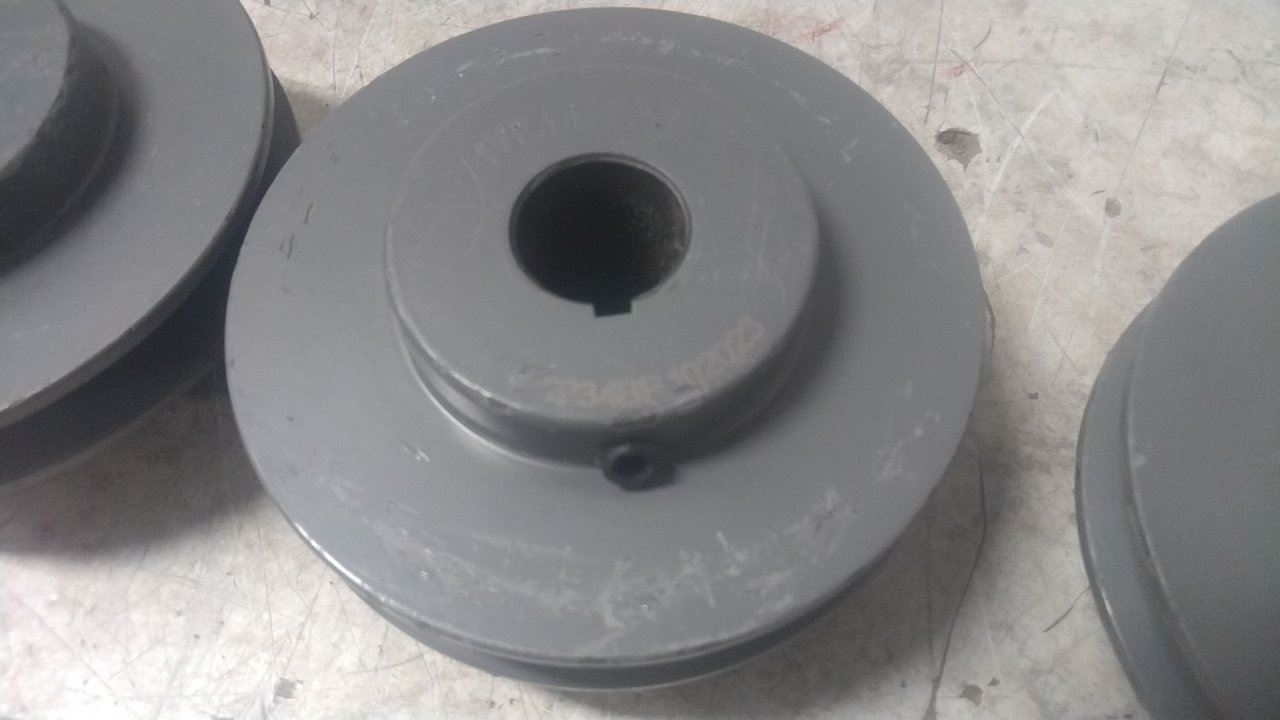

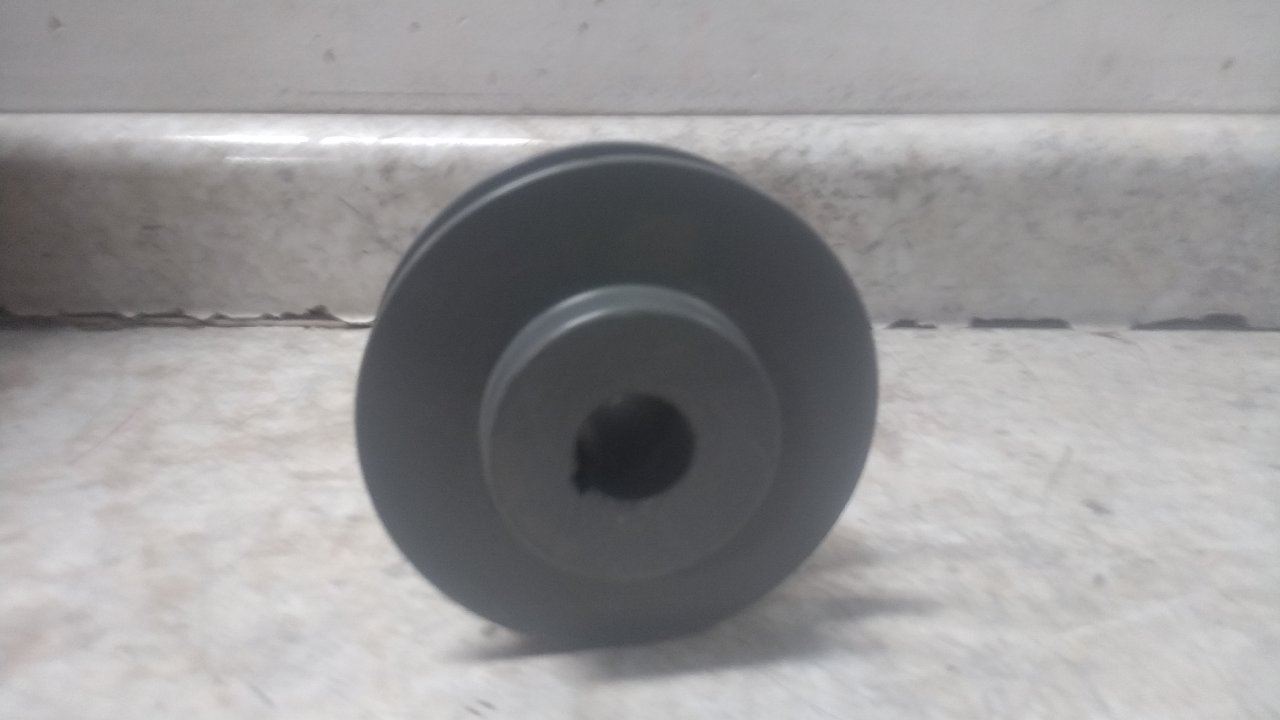

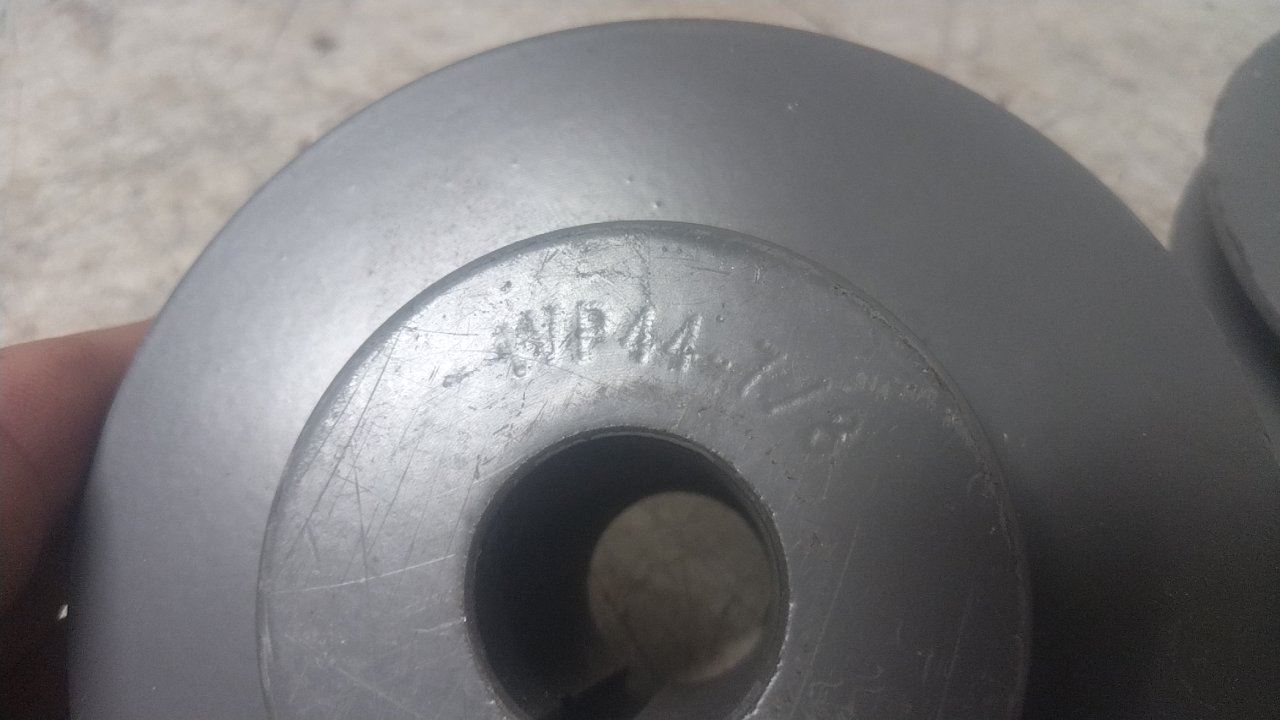

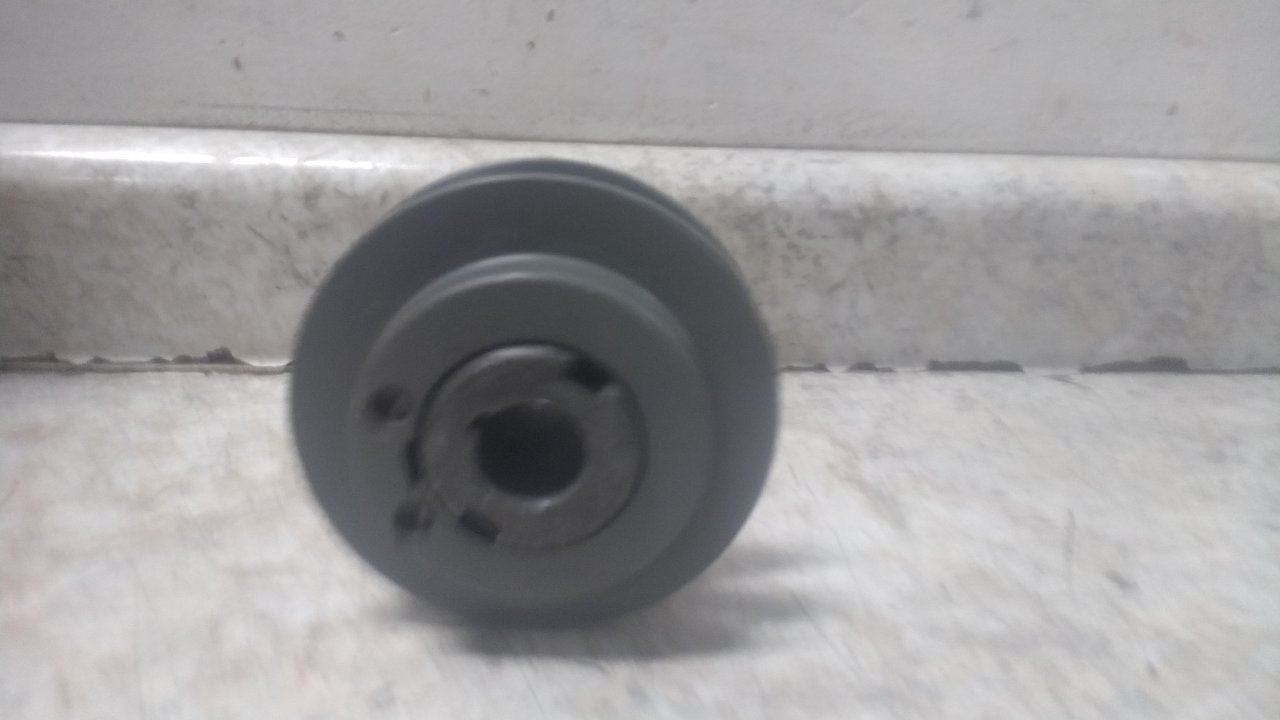

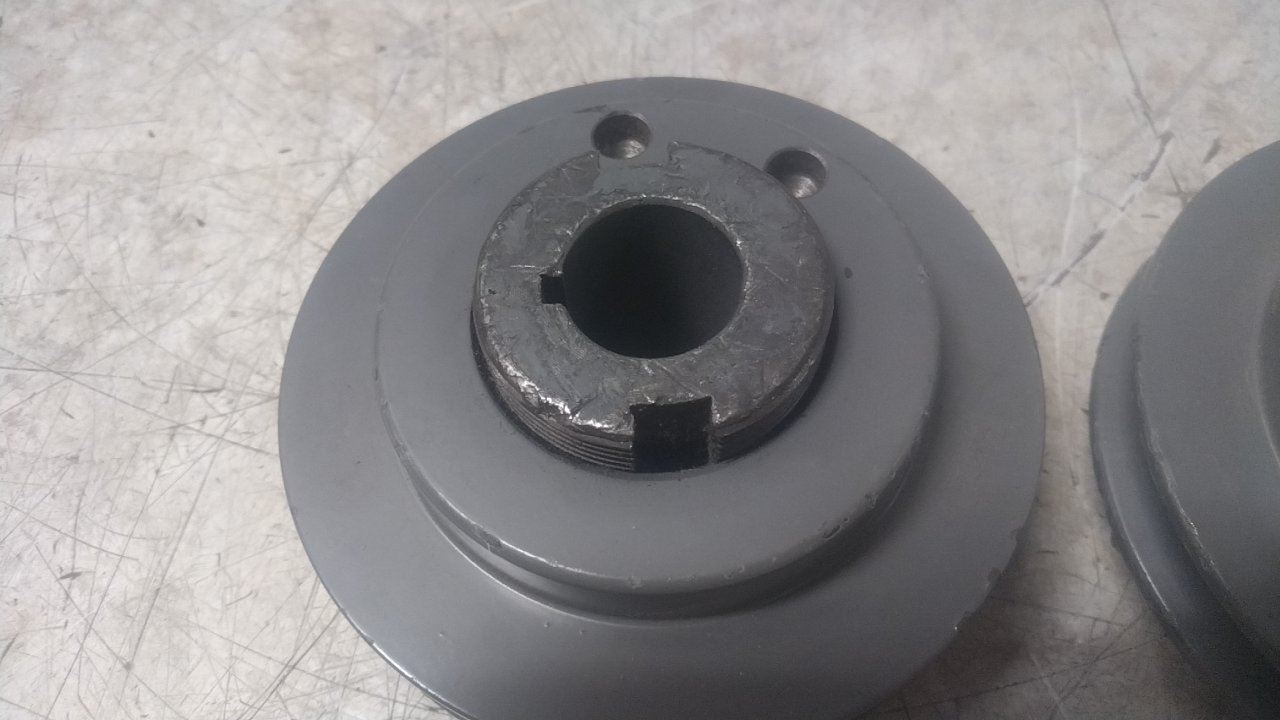

We have inspected this item and we do not have the capability to install the unit to fully test it. This unit shows signs of wear and may have been used before. There are some heavy cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Variable Pitch V-Belt Pulley |
| Manufacturer Part Number | 1VP44X7/8 |
| Pulley Series | VP |
| Pulley Industry Number | 1VP44 |
| Number of Grooves | 1 |
| Number of Turns to Fully Open | 4 (3L); 5 (4L, A); 6 (5L, B) |
| Bore Diameter | 7/8 in |
| Keyway | Yes |
| Keyway Width | 3/16 in |
| Keyway Depth | 3/32 in |
| Length Through Bore | 1-7/8 in |
| For Belt Section | 3L4L5LAAXBBX |
| For V-Belt Type | ClassicalCogged |
| Minimum Pitch Diameter | 2.7 in (3L)2.8 in (4L, A)3.1 in (5L, B) |
| Maximum Pitch Diameter | 3.5 in (3L)3.8 in (4L, A)4.1 in (5L, B) |
| 3L Pitch Diameter (Minimum) | 2.7 in |
| 3L Pitch Diameter (Maximum) | 3.5 in |
| 4L Pitch Diameter (Minimum) | 2.8 in |
| 4L Pitch Diameter (Maximum) | 3.8 in |
| 5L Pitch Diameter (Minimum) | 3.1 in |
| 5L Pitch Diameter (Maximum) | 4.1 in |
| A Pitch Diameter (Minimum) | 2.8 in |
| A Pitch Diameter (Maximum) | 3.8 in |
| AX Pitch Diameter (Minimum) | 2.8 in |
| AX Pitch Diameter (Maximum) | 3.8 in |
| B Pitch Diameter (Minimum) | 3.1 in |
| B Pitch Diameter (Maximum) | 4.1 in |
| BX Pitch Diameter (Minimum) | 3.1 in |
| BX Pitch Diameter (Maximum) | 4.1 in |
| Outside Diameter | 4.15 in |
| Minimum Face Width | 0.75 in |
| Maximum Face Width | 1.125 in |
| Overall Width | 1-7/8 in |
| Material | Cast Iron |
| Material Fabrication | Cast |
| Pulley Construction | Plain |
| Weight | 2.4 lb |
