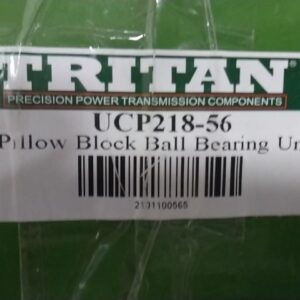

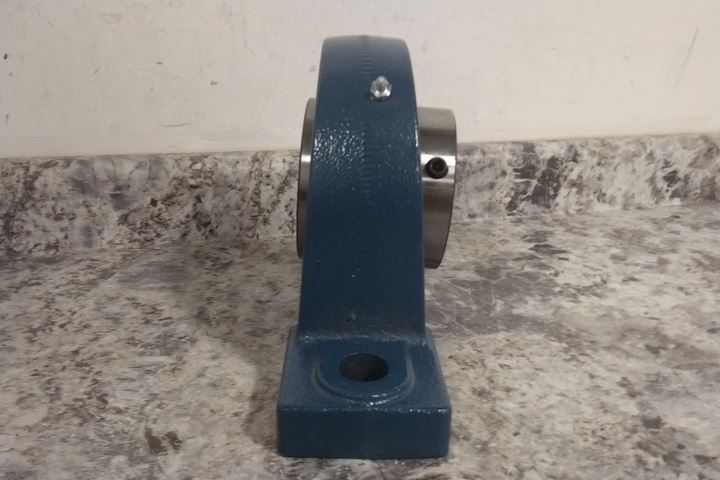

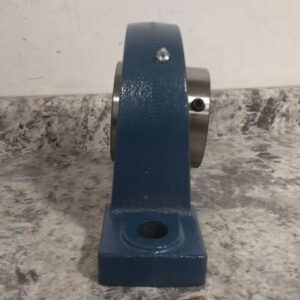

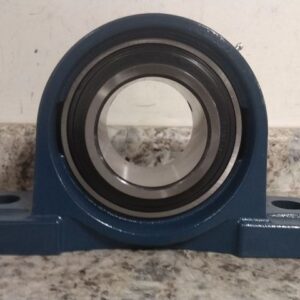

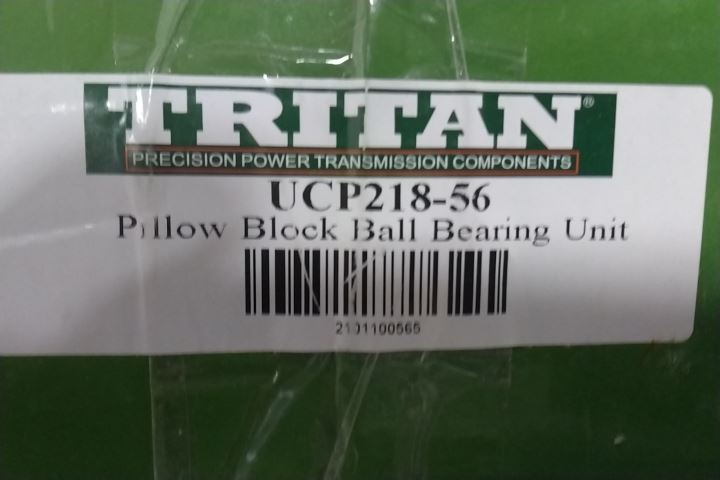

This is a Tritan pillow block bearing. Please refer to the technical specifications in the listing for more information.

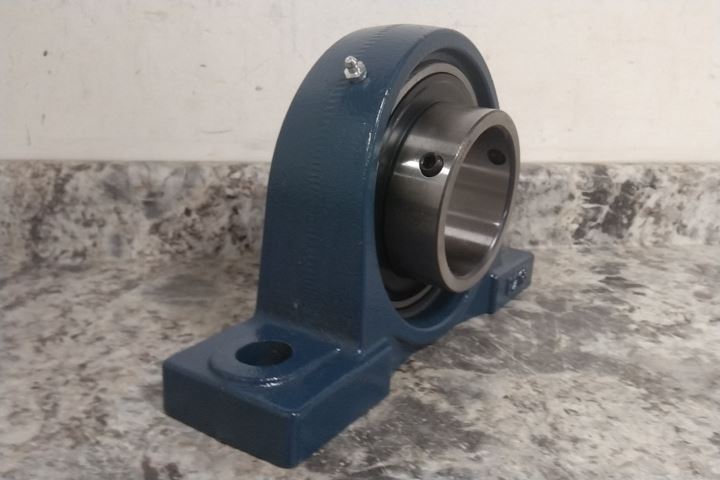

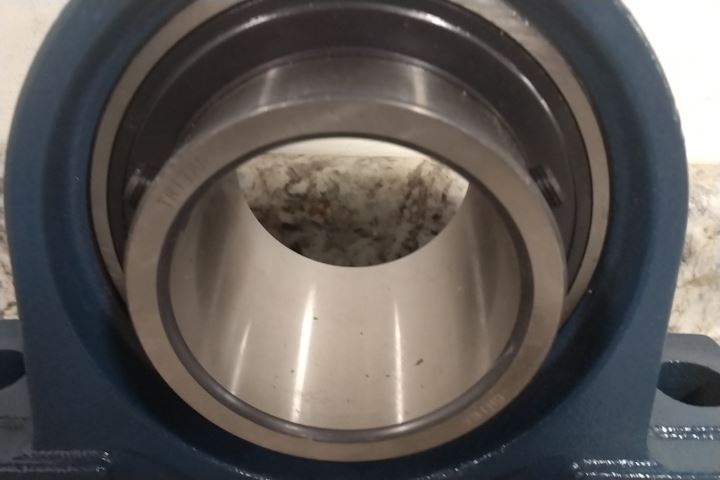

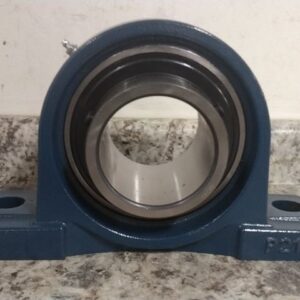

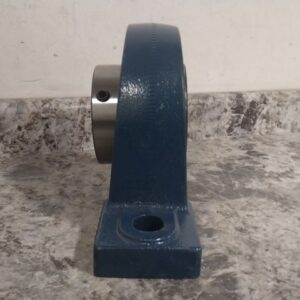

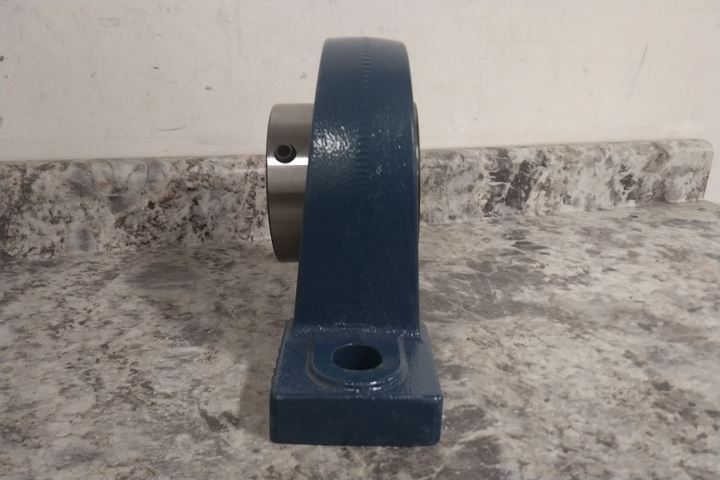

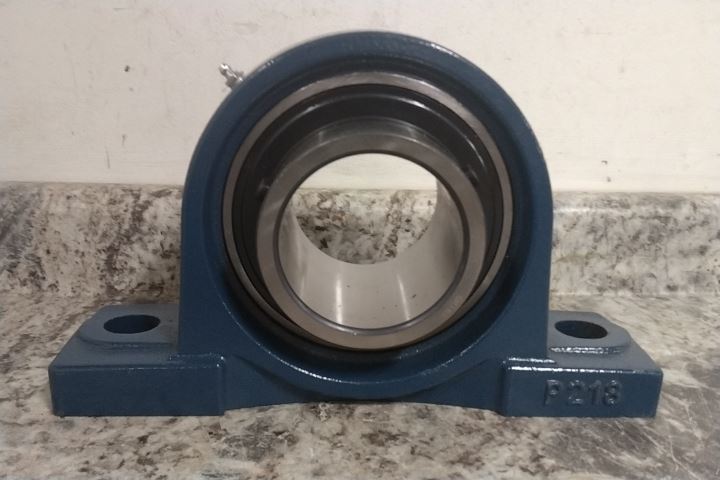

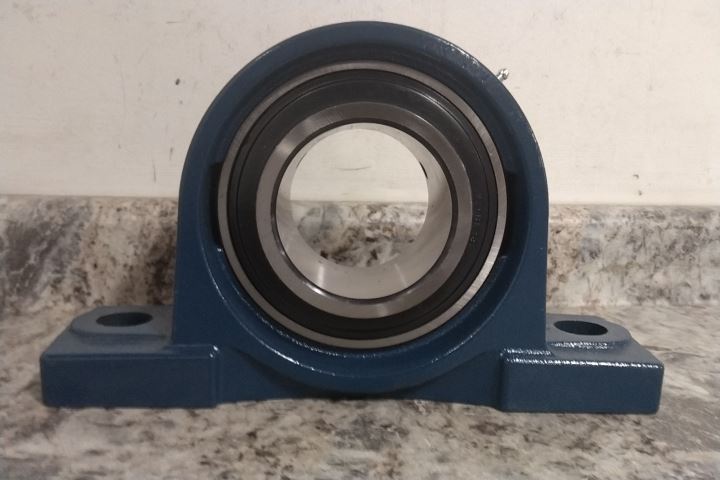

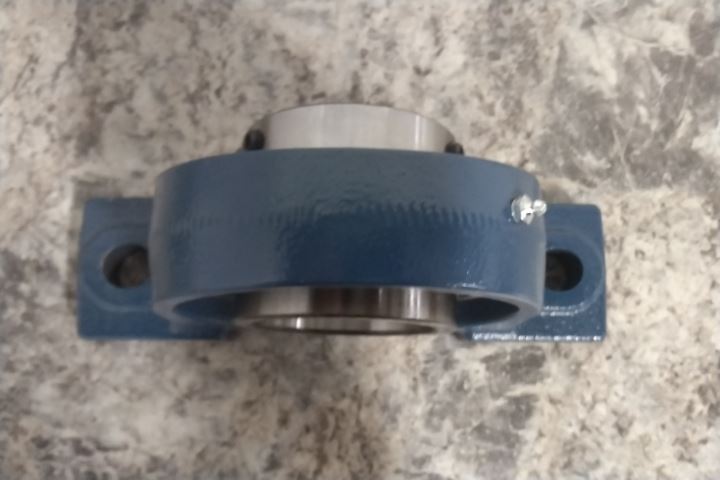

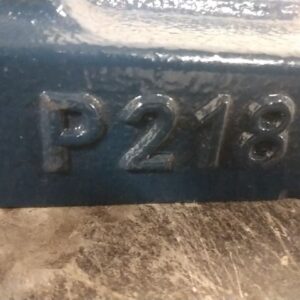

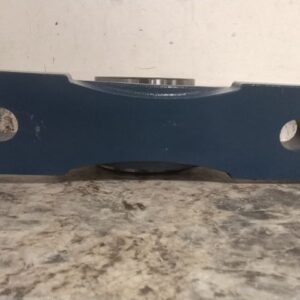

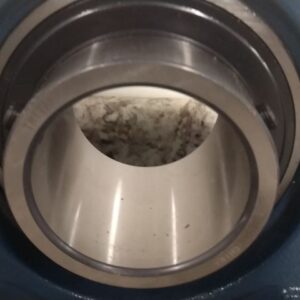

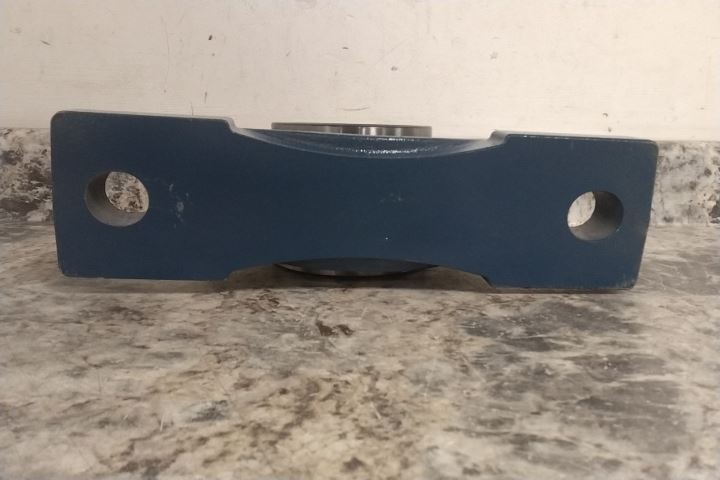

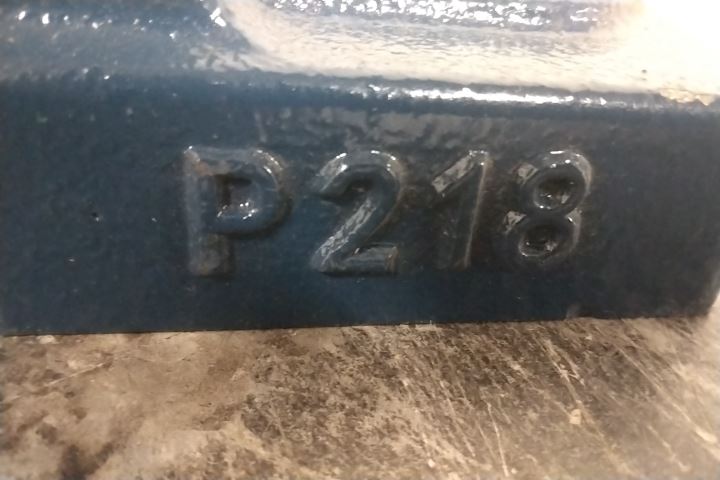

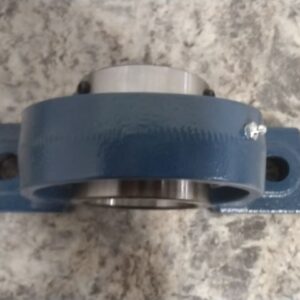

We have inspected this item and we do not have the capability to assemble/install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Pillow Block Bearing |
| Manufacturer Part Number | UCP218-56 |
| Bearing Insert Type | Radial Ball |
| Bearing Insert Material | Alloy Steel |
| Bearing Material Grade | 52100 |
| Shaft Locking Type | Set Screws |
| Bore Diameter | 3-1/2 in |
| Bore Diameter Tolerance | +/- 0.0011 in |
| Mounting Surface to Shaft Center Height | 3-63/64 in |
| Mount Hole Center-to-Center Length | 10-5/16 in |
| Mount Hole Center-to-Center Width | 10-5/16 in |
| Base Height | 1.299 in |
| Base Width | 3.464 in |
| Mount Type | Bolt-Through |
| Number of Mount Holes | 2 |
| Mounting Bolt Size | 7/8 in |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Overall Length | 12.874 in |
| Overall Width | 3.779 in |
| Overall Height | 7.795 in |
| Static Radial Load Capacity | 16,073 lbf |
| Dynamic Radial Load Capacity | 21,581 lbf |
| Closure | Double Sealed |
| Seal Type | Contact |
| Seal Material | Synthetic Rubber |
| Lubrication Openings | Grease Fitting |
| Lubricant Material | Grease |
| Maximum Temperature | 250 °F |
| Minimum Temperature | -40 °F |
| Resistance Properties | Corrosion Resistant; Rust Resistant; Wear Resistant |
