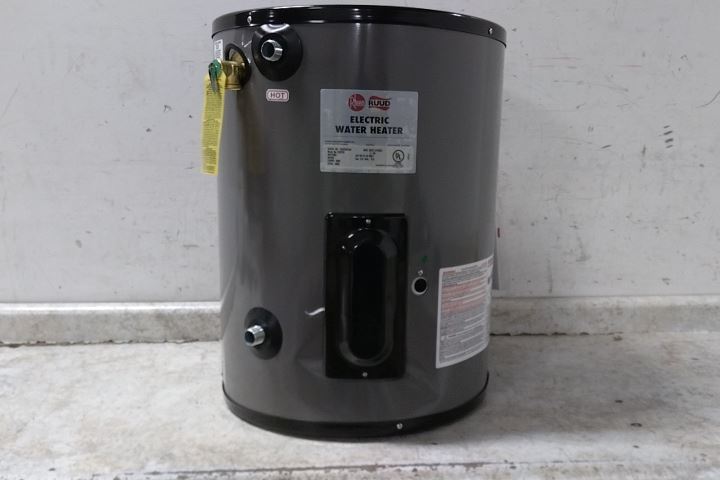

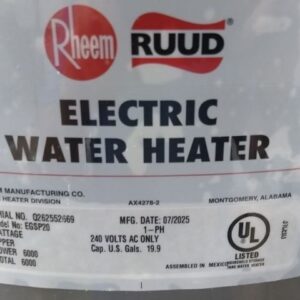

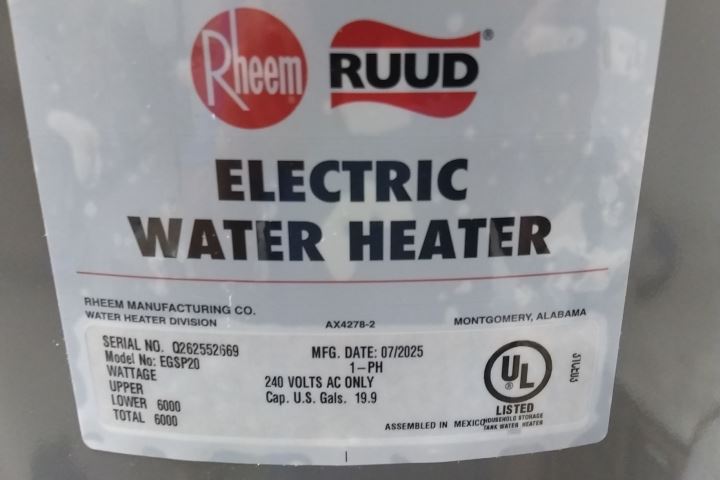

This is a Rheem electric water heater. Please refer to the technical specifications in the listing for more information.

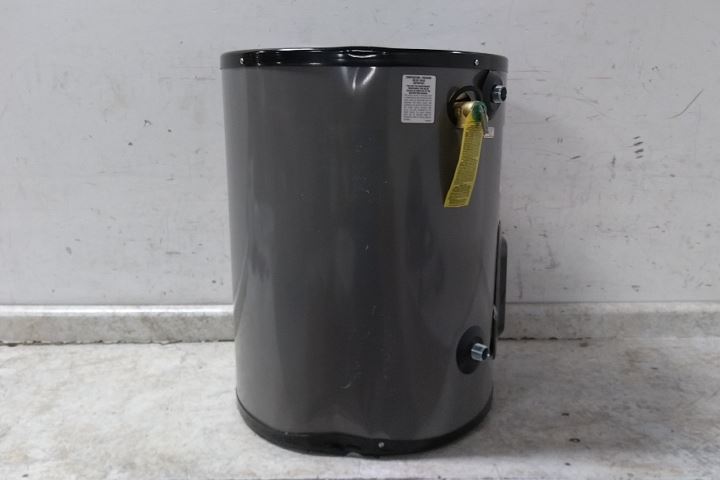

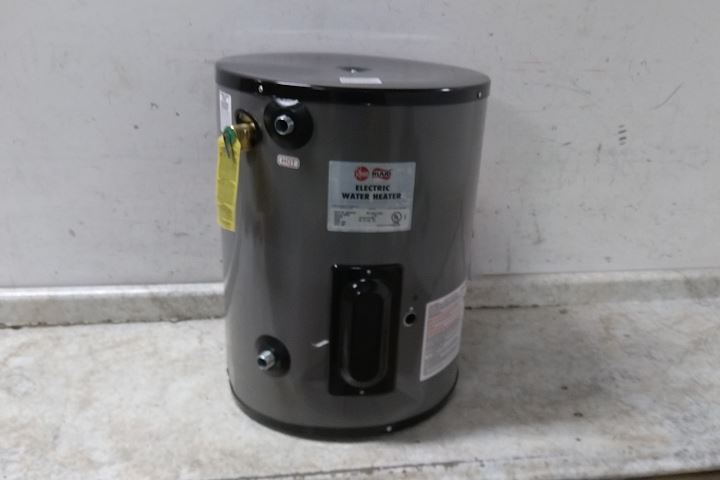

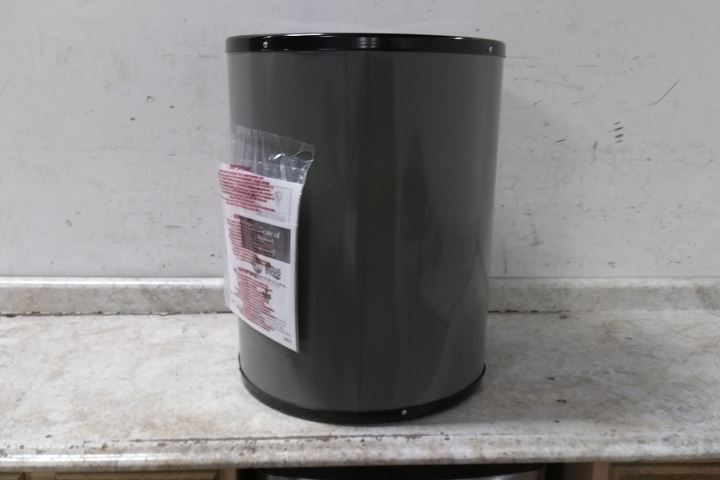

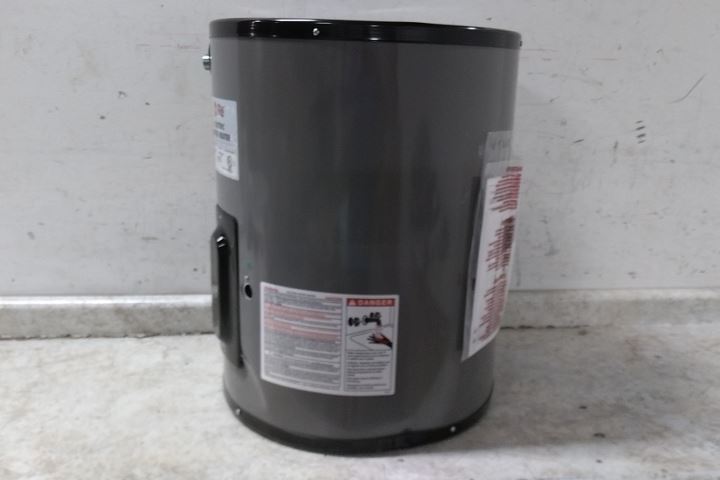

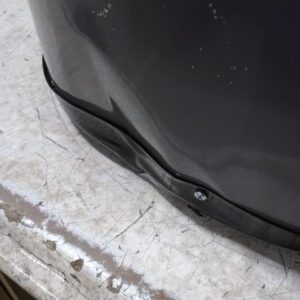

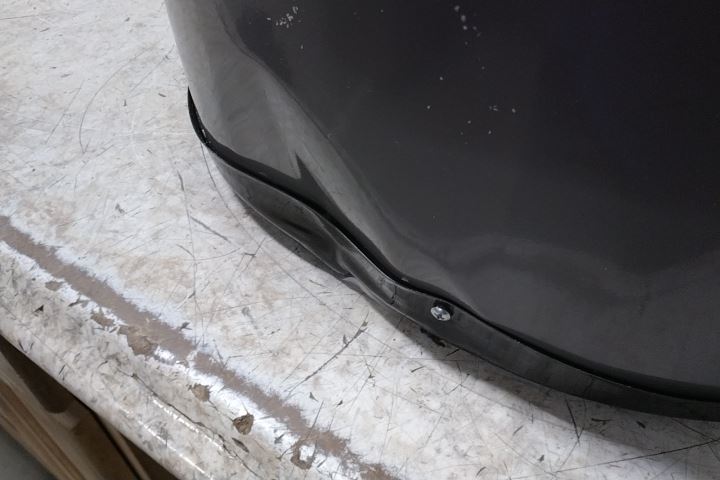

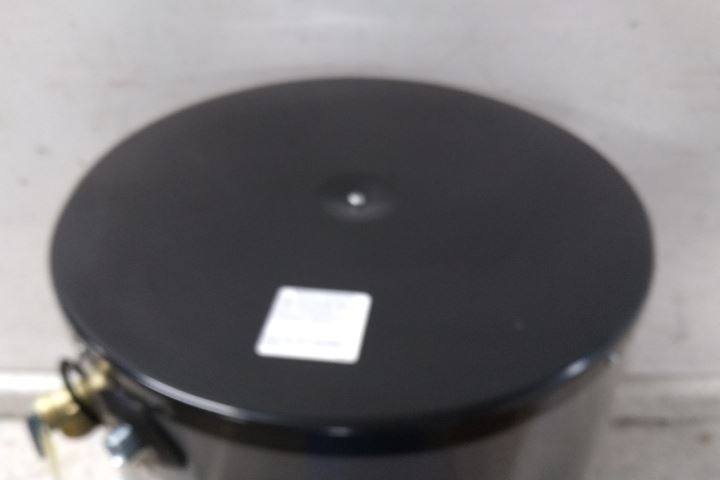

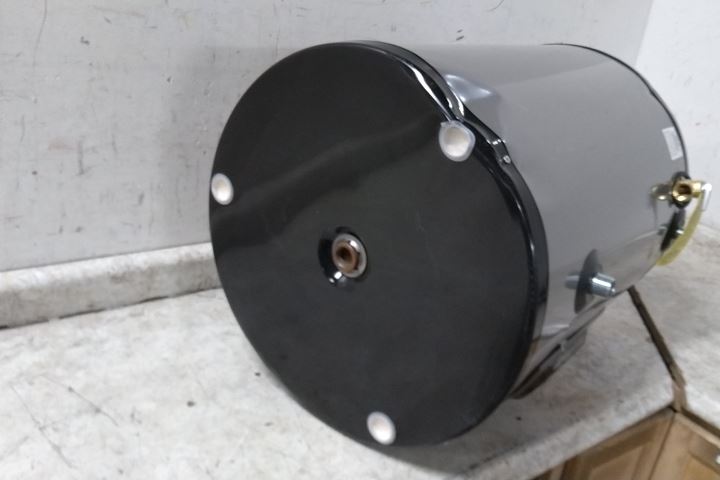

We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some dents around the tank including the top and bottom. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.

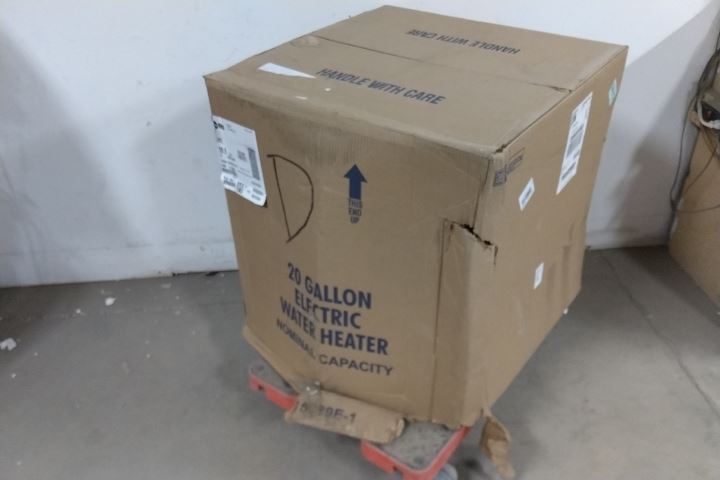

This unit only includes what is photographed in the listing.
Technical Specs
| Item | Electric Water Heater |
| Sub-brand | Point of Use |
| Manufacturer Part Number | EGSP20 |
| Market | Commercial |
| Operating Voltage | 240V |
| Maximum Delivered Temperature | 170 °F |
| Maximum Recovery Flow Rate | 61 gph @ 40°F |
| Number of Elements | 1 |
| Tank Capacity | 19.9 gal |
| Maximum Water Pressure | 150 psi |
| Overall Width | 19.75 in |
| Overall Depth | 19.75 in |
| Overall Height | 25.12 in |
| Power Consumption | 6,000 W |
| Water Connection Location | Side |
| Current | 25 A |
| Phase | Single |
| Recovery Rate @ Rise | 17 gph @ 140°F; 20 gph @ 120°F; 24 gph @ 100°F; 30 gph @ 80°F; 41 gph @ 60°F; 61 gph @ 40°F |
| Thermal Efficiency | Not Rated |
| Tank Diameter | 19.75 in |
| Environment | Indoor |
| Tank Outer Shell Material | Steel |
| Tank Outer Shell Finish | Porcelain Enamel |
| Cold Inlet Size | 3/4 in |
| Hot Outlet Size | 3/4 in |
| Automatic Thermostat | Yes |
| Thermostat Mounting | Surface |
| Overheat Protection | Yes |
| Minimum Delivered Temperature | 110 °F |
| Height to Hot Outlet | 22.62 in |
| Height to Cold Inlet | 5.12 in |
| Tank Insulation Material | Polyurethane |

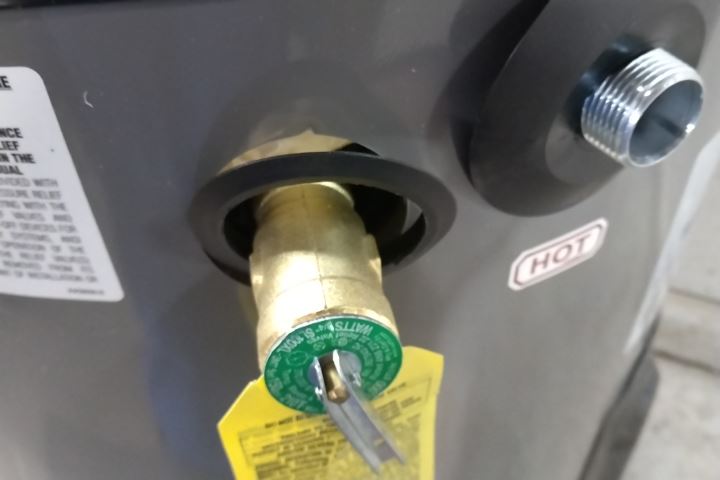

| Height to T and P Valve | 19.62 in |
| Cold Inlet Type | NPT |
| Hot Outlet Type | NPT |
| Mounting Type | Wall Mounting |
