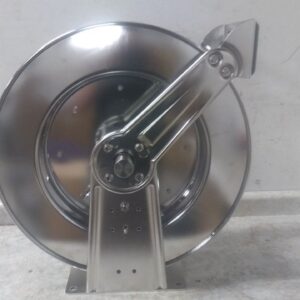

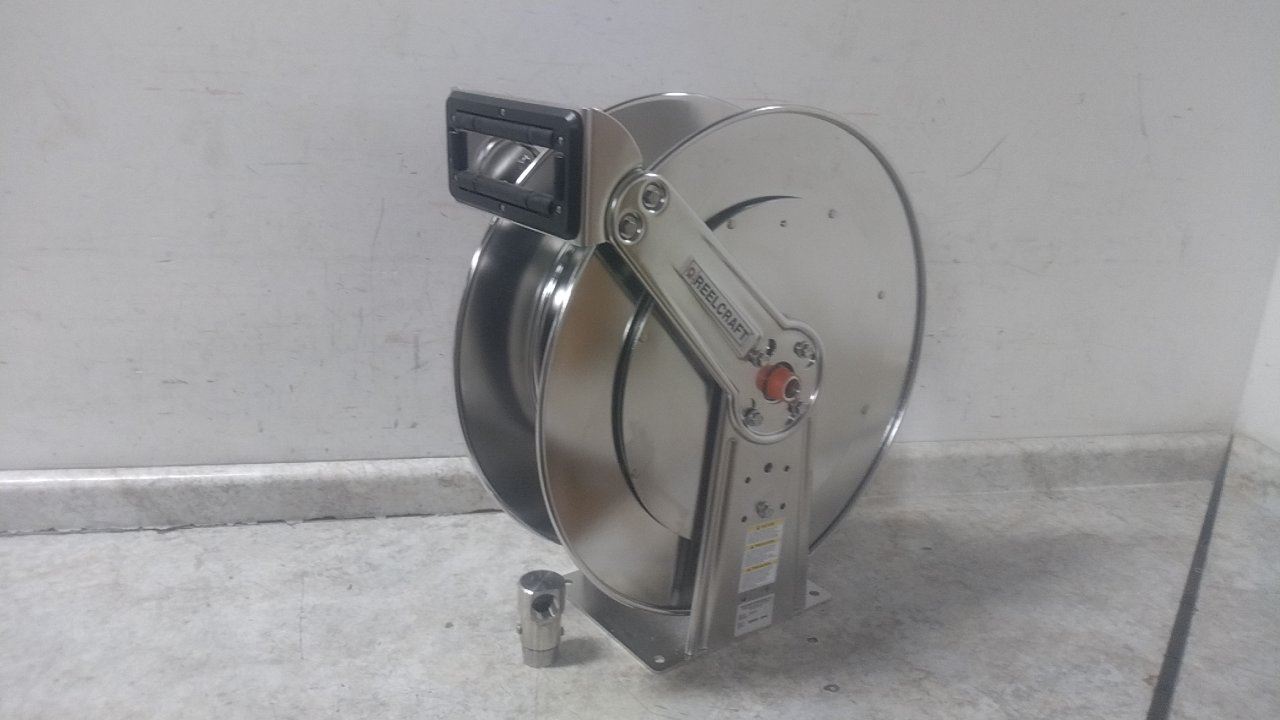

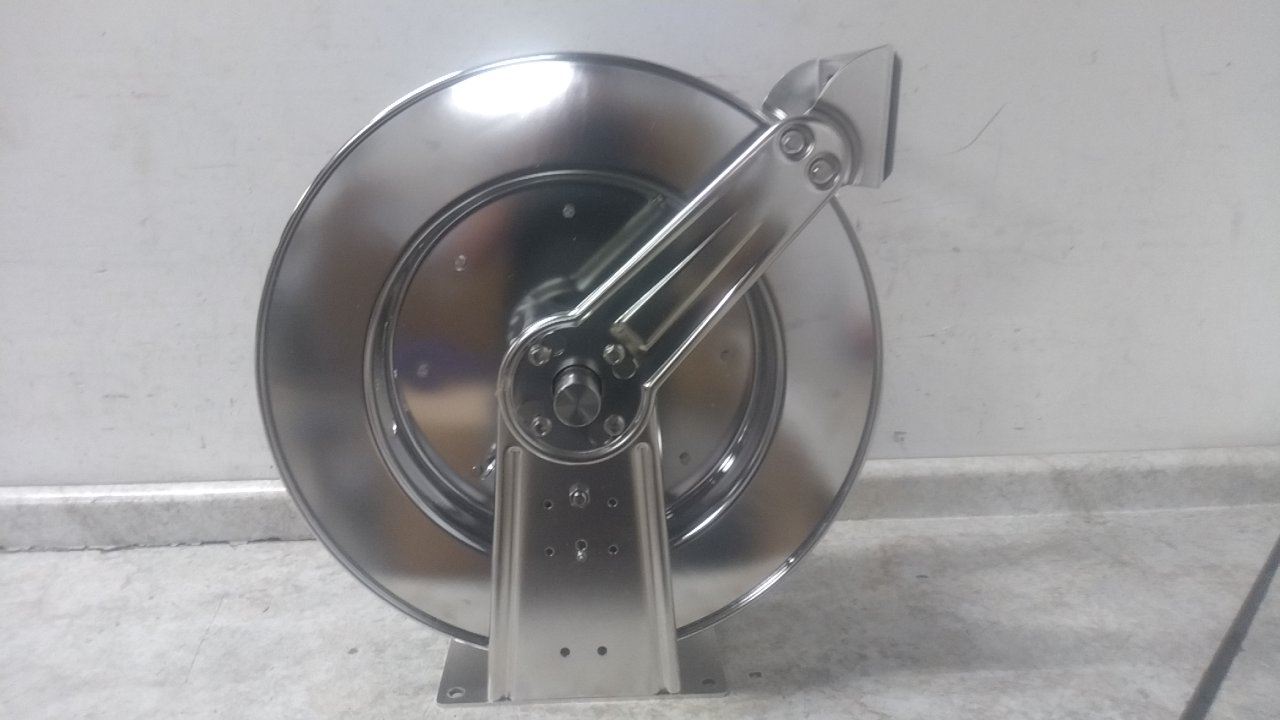

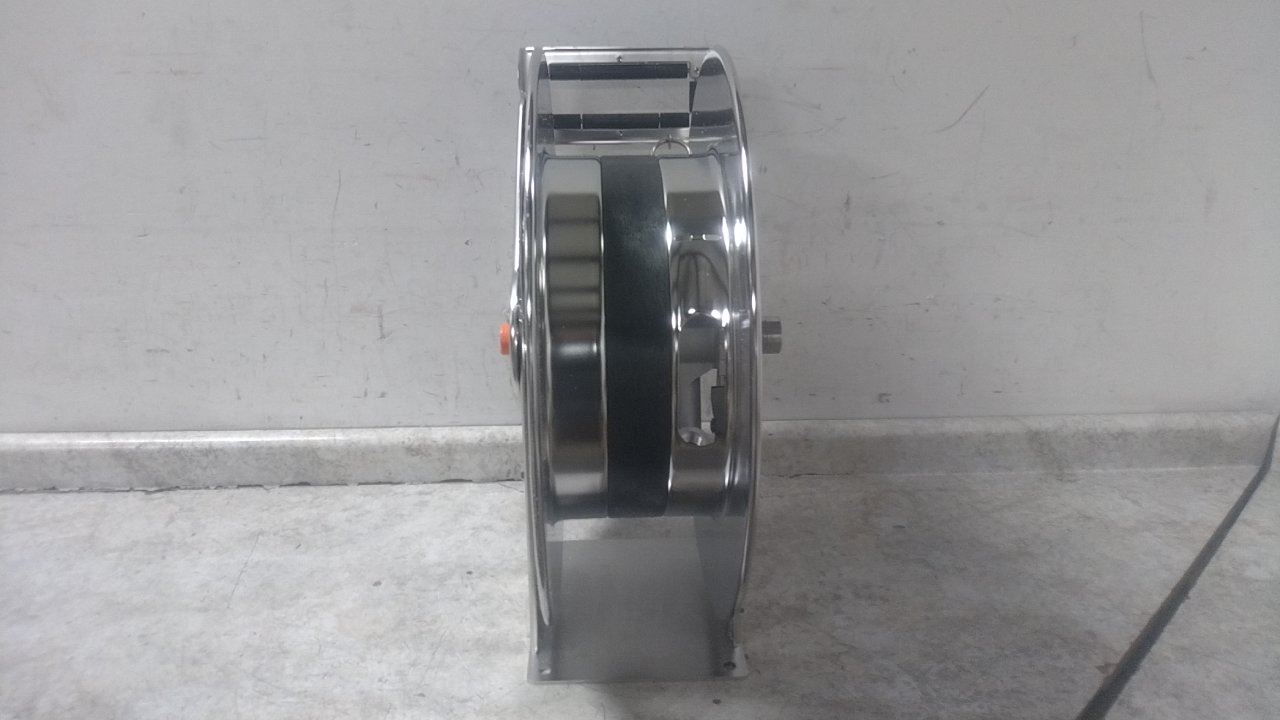

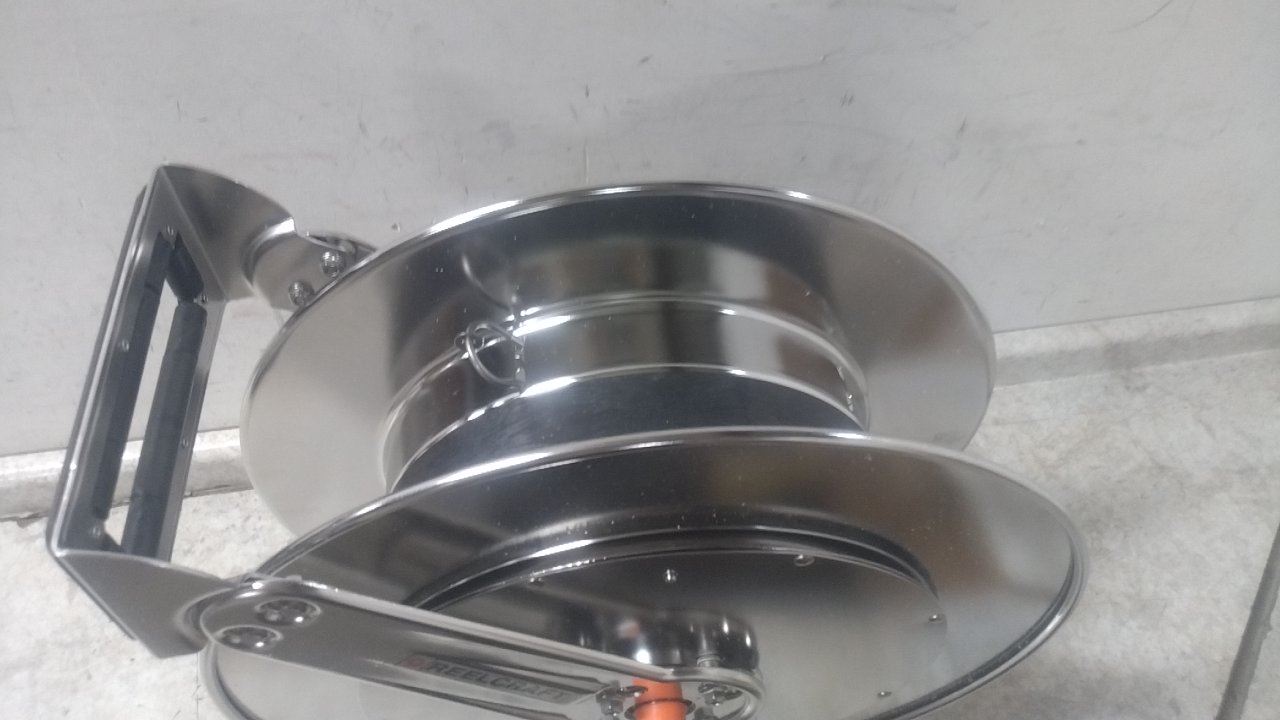

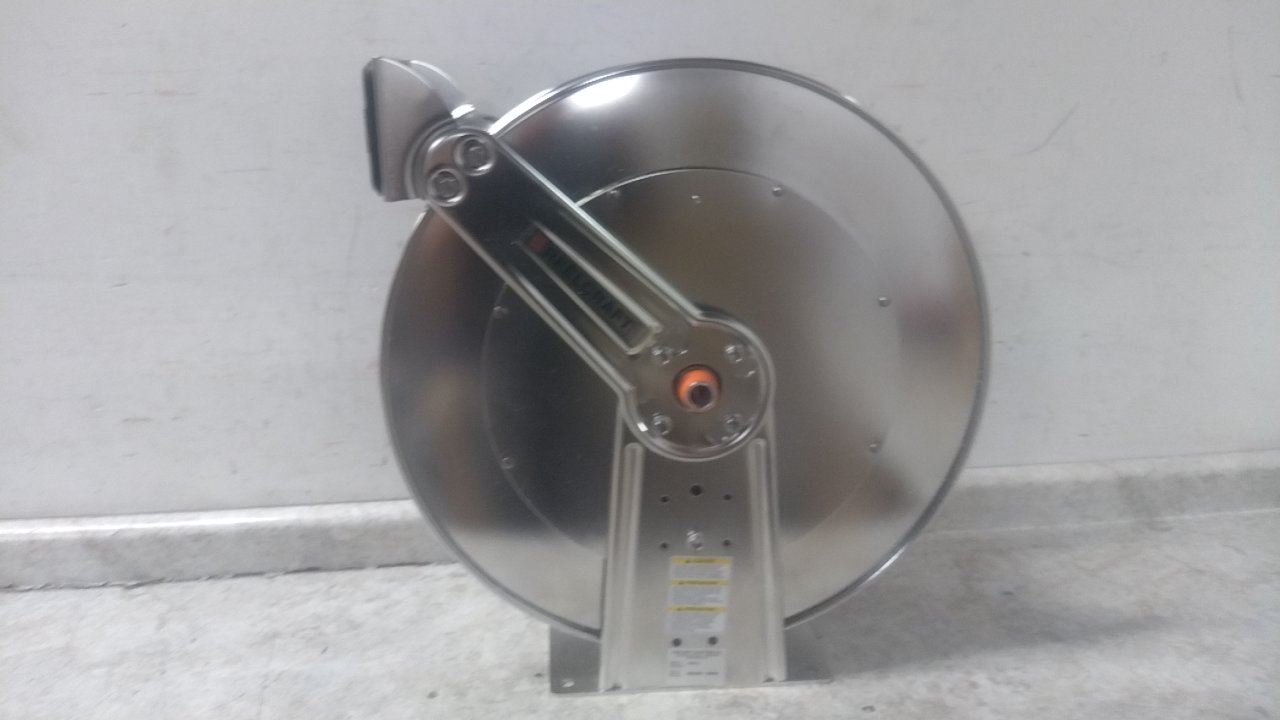

This is a Reelcraft stainless steel spring return hose reel. Please refer to the technical specifications in the listing for more information.

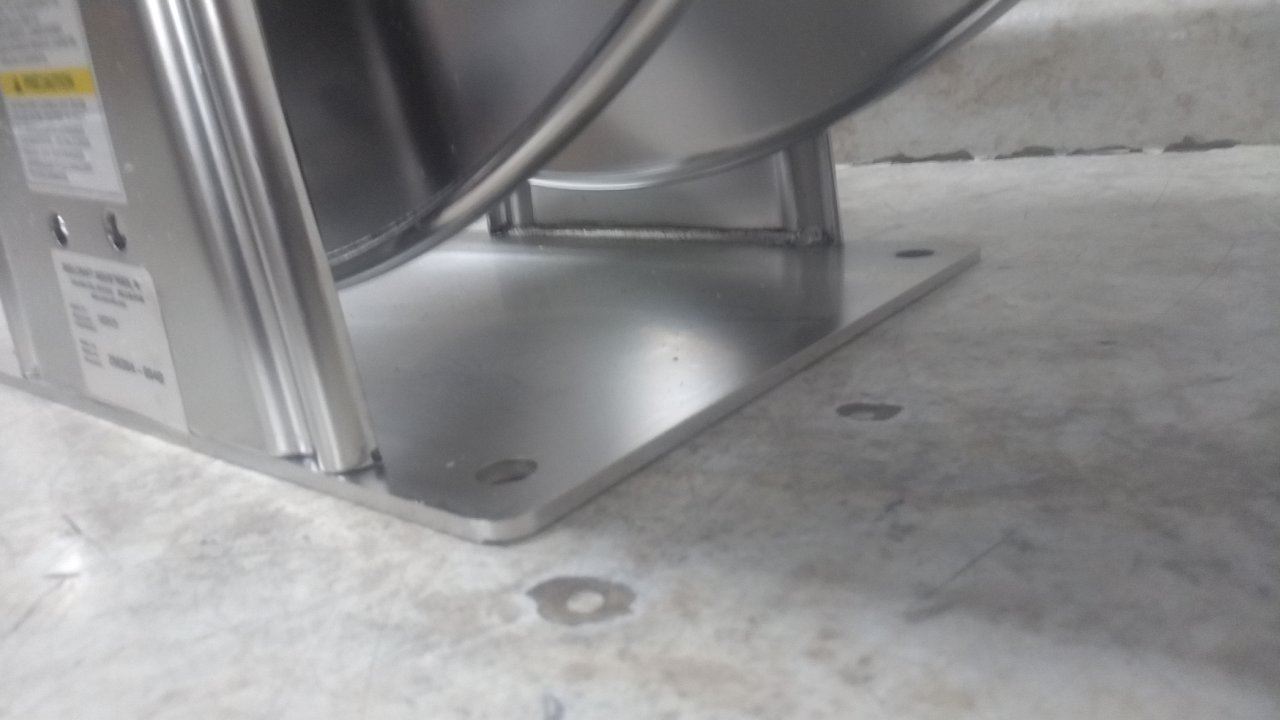

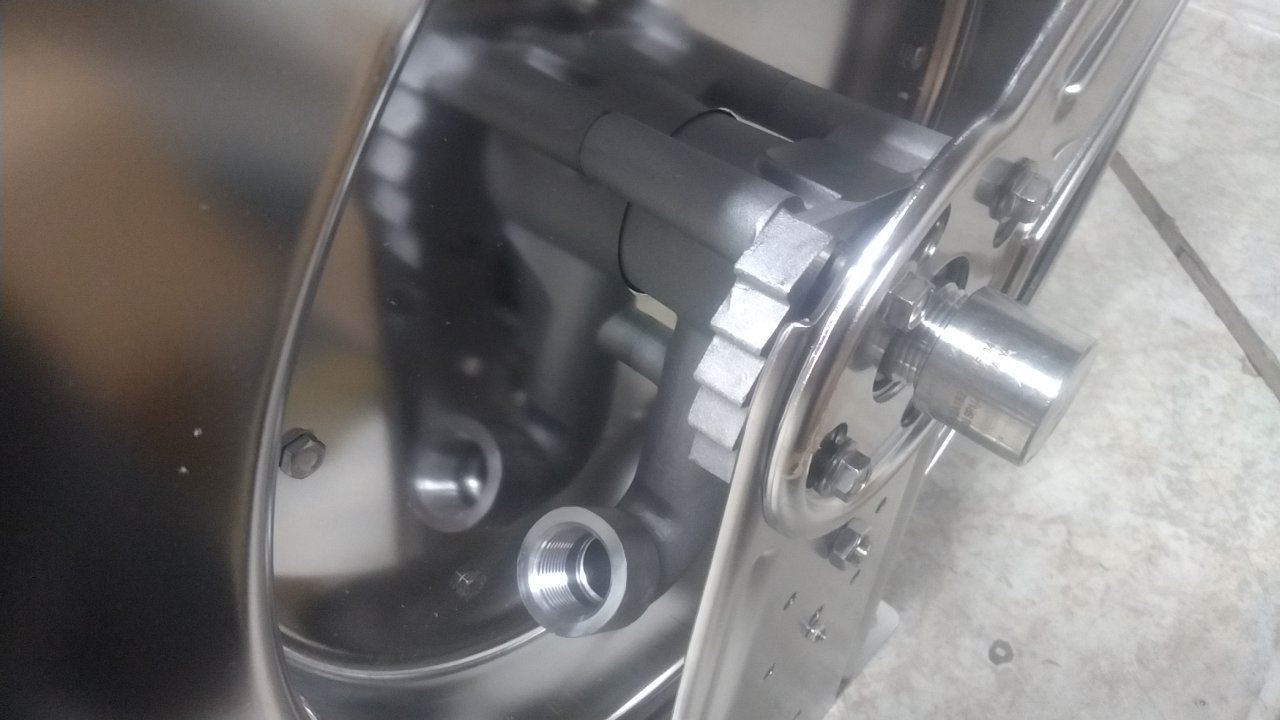

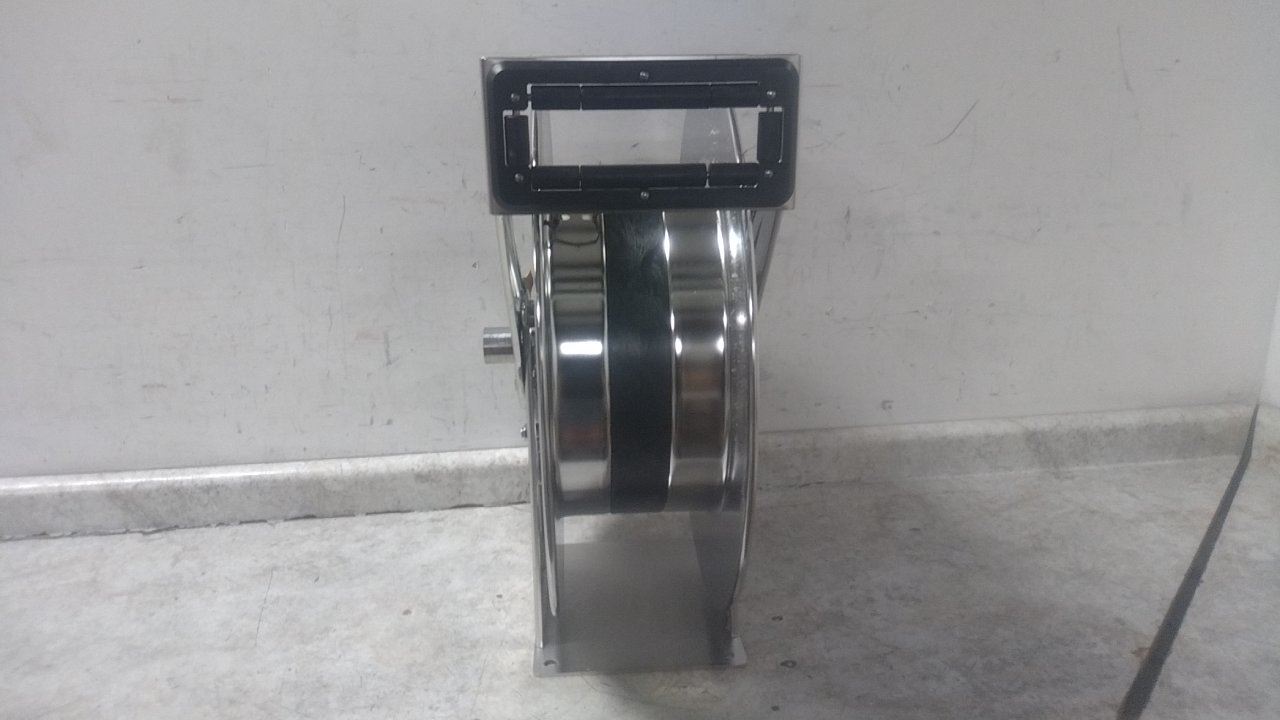

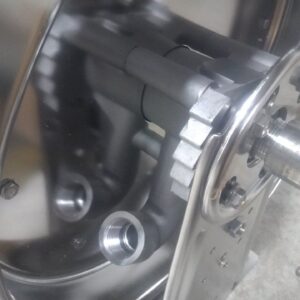

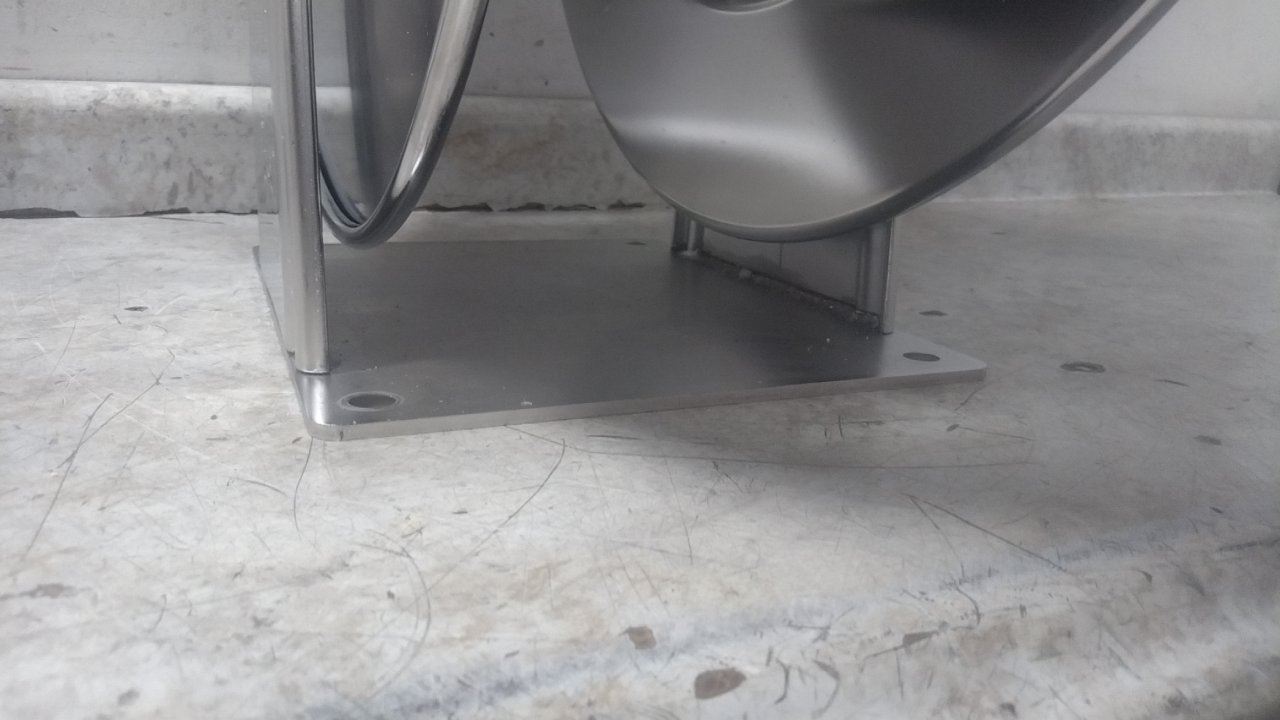

We have inspected this item and the reel spins/retracts. We do not have the capability to test the unit any further. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | Spring Return Hose Reel |
| Hose Reel Primary Application | Washdown |
| Maximum Operating Pressure | 500 psi |
| Hose Capacity | 50 ft (1 in I.D.) |
| Drive Type | Spring Return |
| Corrosion-Resistant | Yes |
| Enclosed | No |
| For Dual Hose | No |
| Hose Reel Type | Free Standing Hose Reel; Vehicle; Wall Mount Hose Reel |
| Includes Hose | No |
| Pedestal Type | Dual Pedestal |
| Number of Guide Arms | Double Arm |
| Overall Height | 25-3/8 in |
| Overall Length | 24 in |
| Overall Width | 15-3/4 in |
| Reel Material | Stainless Steel |
| Reel Finish | Polished |
| Speed Limited Retraction | No |
| Reel Color | Silver |

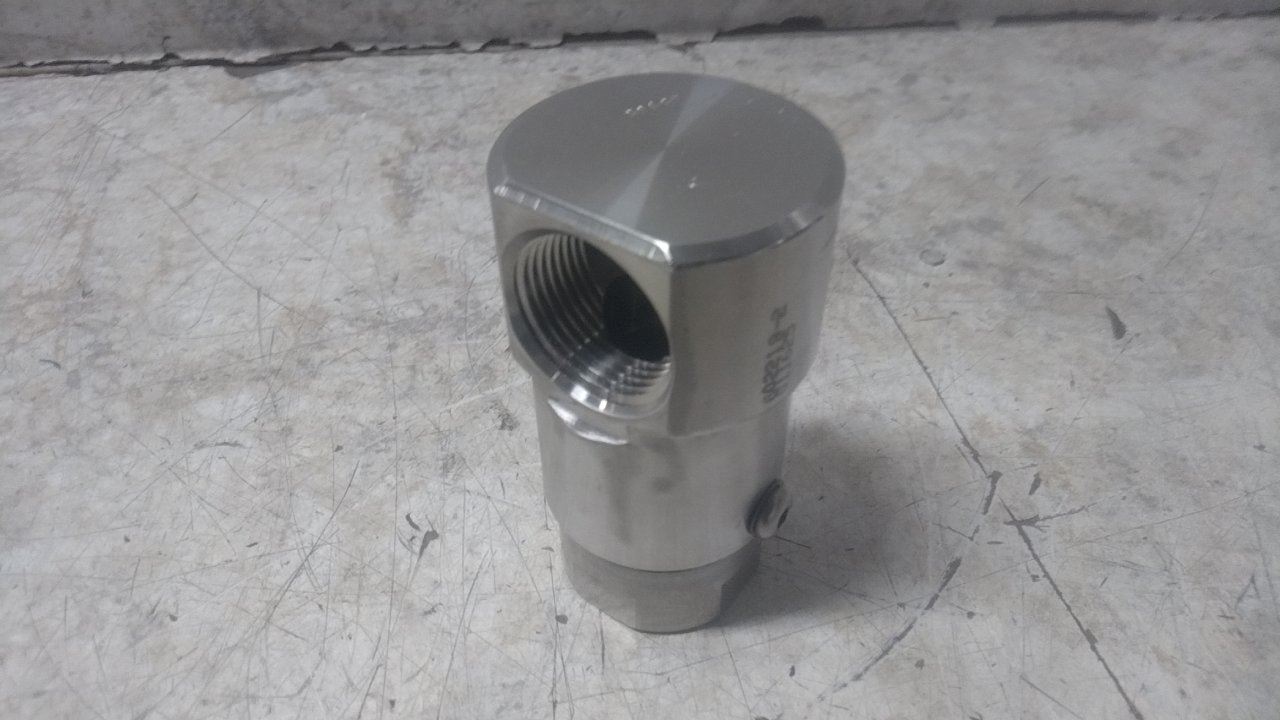

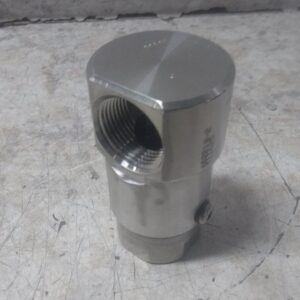

| Swivel Material | Stainless Steel |
| Swivel Outlet Size | 1 in |
| Swivel Outlet Thread Size | 1 in – 11-1/2 |
| Swivel Outlet Type | NPT |
| Swivel Outlet Gender | Female |

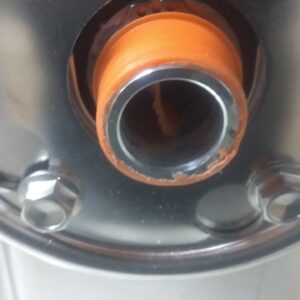

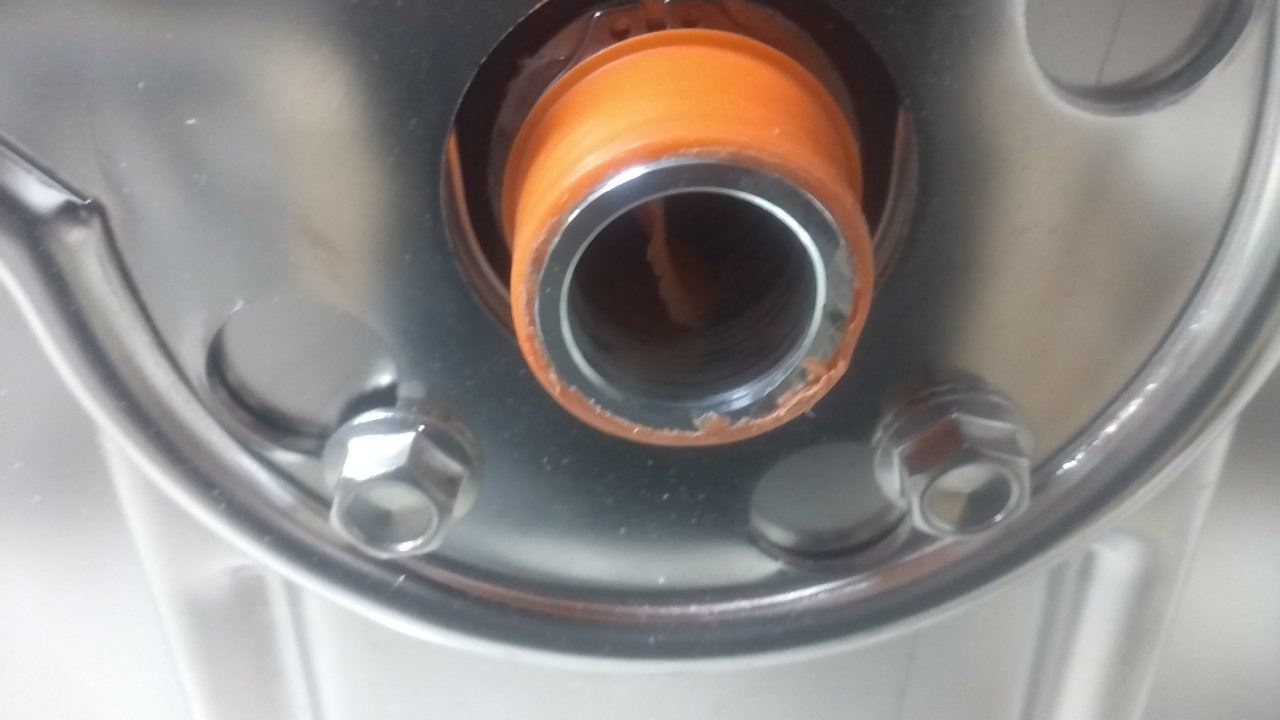

| Swivel Inlet Size | 1 in |
| Swivel Inlet Thread Size | 1 in – 11-1/2 |
| Swivel Inlet Type | NPT |
| Swivel Inlet Gender | Female |
| Latch Type | Spring Loaded |
| Bearing Construction | Ball |
| Includes Leader Hose | No |
| Maximum Operating Temperature | 210 °F |
| Minimum Operating Temperature | -25 °F |
| Mount Base Height | 12 in |
| Mount Base Width | 9-3/8 in |
| Mounting Hole Center to Center Width | 10-1/2 in |
| Base Motion Type | Stationary |
| Mounting Hole Center to Center Height | 7-7/8 in |
| Mount Hole Diameter | 1/2 in |
| Number of Mount Holes | 4 |
| Reel Diameter | 15-1/2 in |
| Reel Width | 15-3/4 in |
| Twin Hose Compatible | No |
| Weight | 92 lb |
| Fasteners Included | No |
| Overall Dimensions | 24 in L x 15-3/4 in W x 25-3/8 in H |
