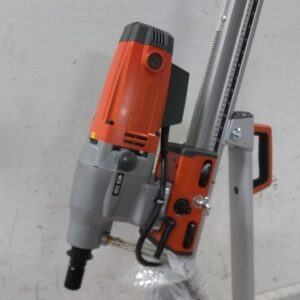

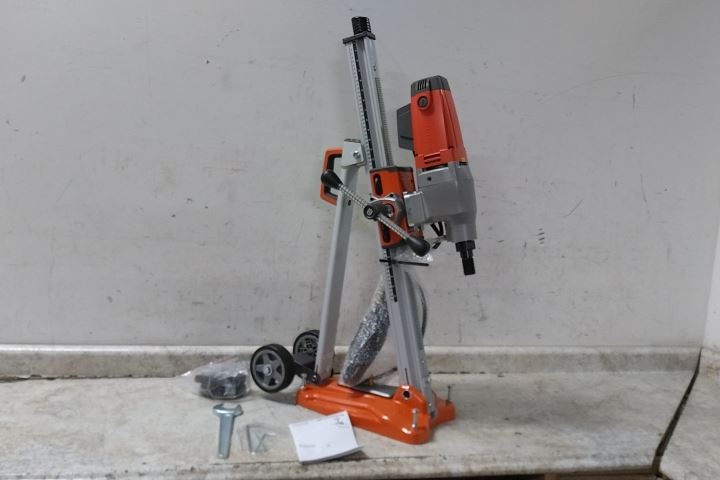

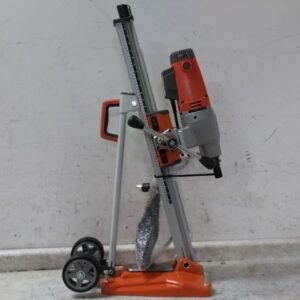

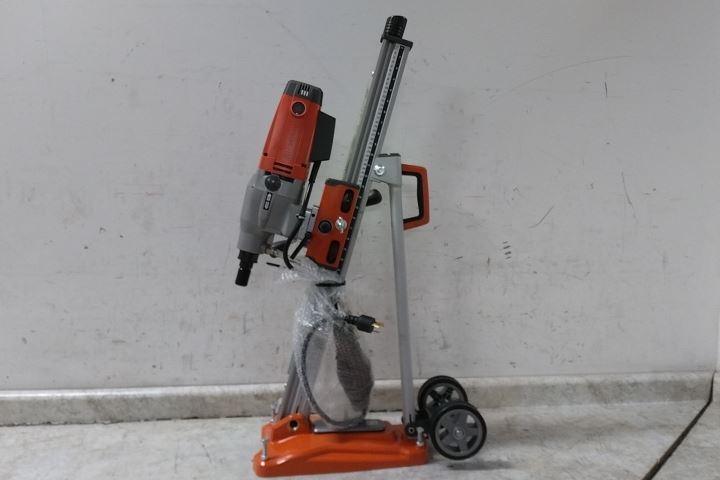

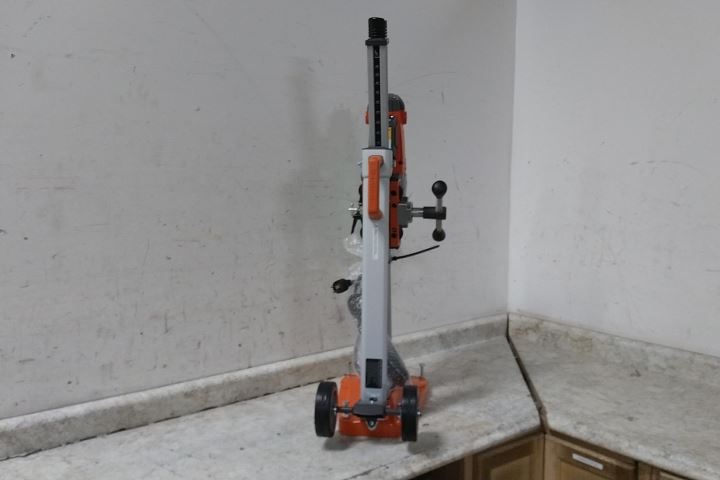

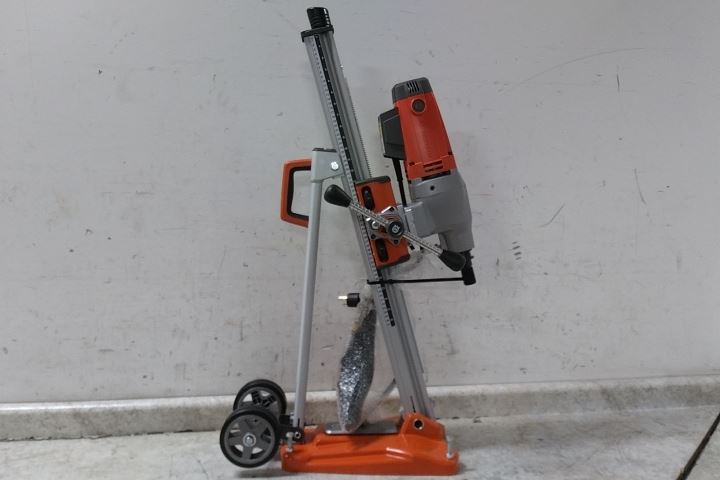

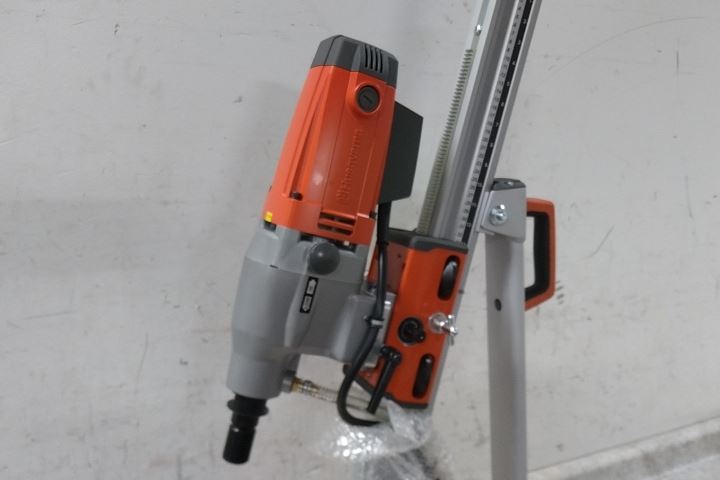

This is a Husqvarna diamond coring rig. Please refer to the technical specifications in the listing for more information.

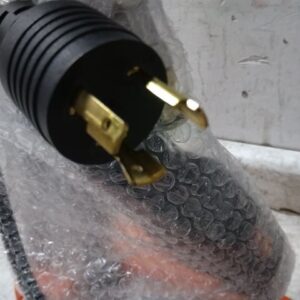

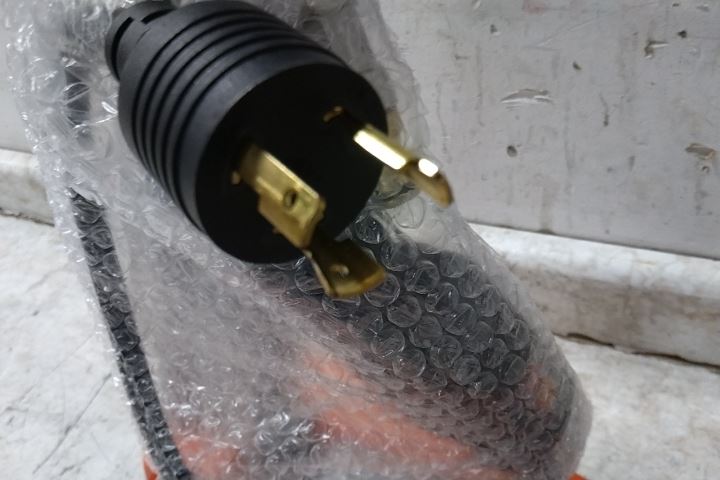

We have inspected this item and we do not have the proper outlet on site to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.

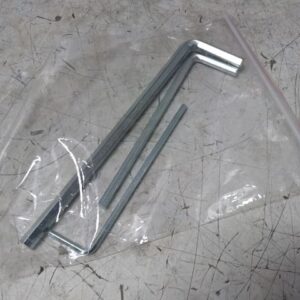

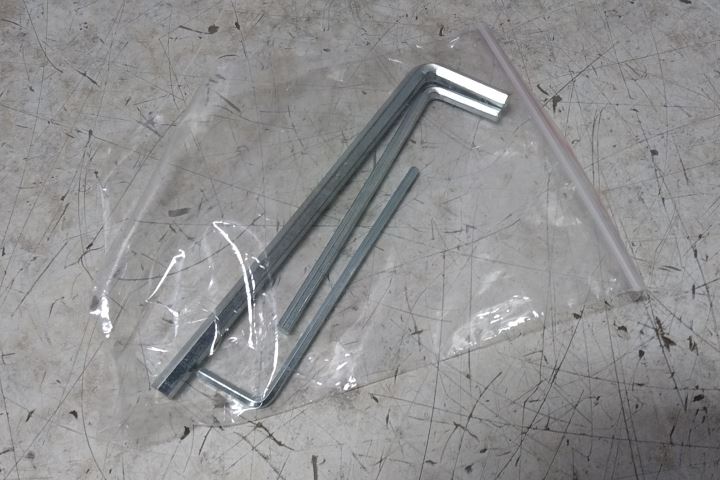

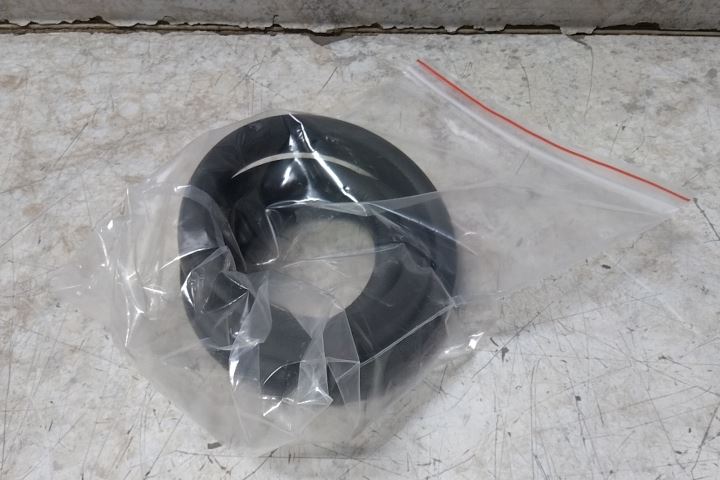

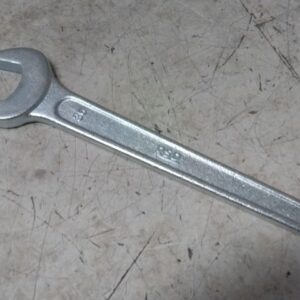

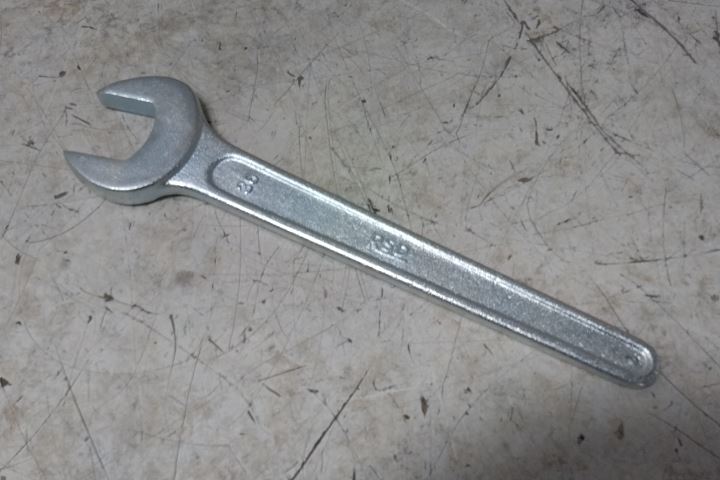

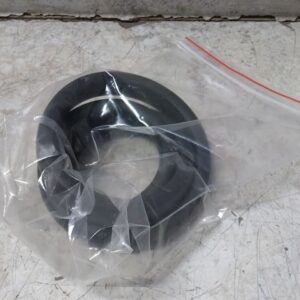

Bit not included. This unit only includes what is photographed in the listing.
Technical Specs
| Item | Diamond Coring Rig |
| Core Drill Type | Core Drill Rig |
| Voltage | 100 to 120V AC |
| Horsepower | 2.9 hp |
| Coring Capacity in Concrete | 10 in |
| Current | 10 A |
| Column Height | 39 in |
| Drilling Angles | 60° |
| Max. Spindle Speed | 890 RPM |
| Speed Setting | Variable Speed |
| Anti-Kickback Clutch Type | Mechanical |
| Phase | Single-Phase |
| Tool Weight | 51 lb |
| Adjustable Angle | Yes |
| Application | Core Drilling in Walls, Floors and Roofs Up to 250 mm Diameter |
| Base Length | 21-1/2 in |
| Base Width | 10-1/2 in |
| Column Diameter | 2-1/2 in |
| Core Bit Cap Concrete | 10 in |
| Maximum Core Bit Compatibility | 10 in |
| Maximum Speed | 890 RPM |
| Minimum Spindle Speed | 390 RPM |
| Number of Pieces | 2 |
| Number of Speed Settings | 2 |
| Overall Depth | 24 in |
| Overall Height | 40 in |
| Overall Width | 10-1/2 in |
| Overload Protection Clutch | Yes |
| Power Source | Corded |
| Series | DMS |
| Spindle Decimal Equivalent Screw Size | 1.25 in |
| Spindle Screw Size | 1-1/4 in |
| Spindle Thread Size | 1-1/4″-7 UNC |
| Spindle Travel | 27 in |
| Water Inlet Port | Yes |
