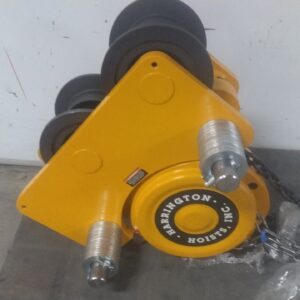

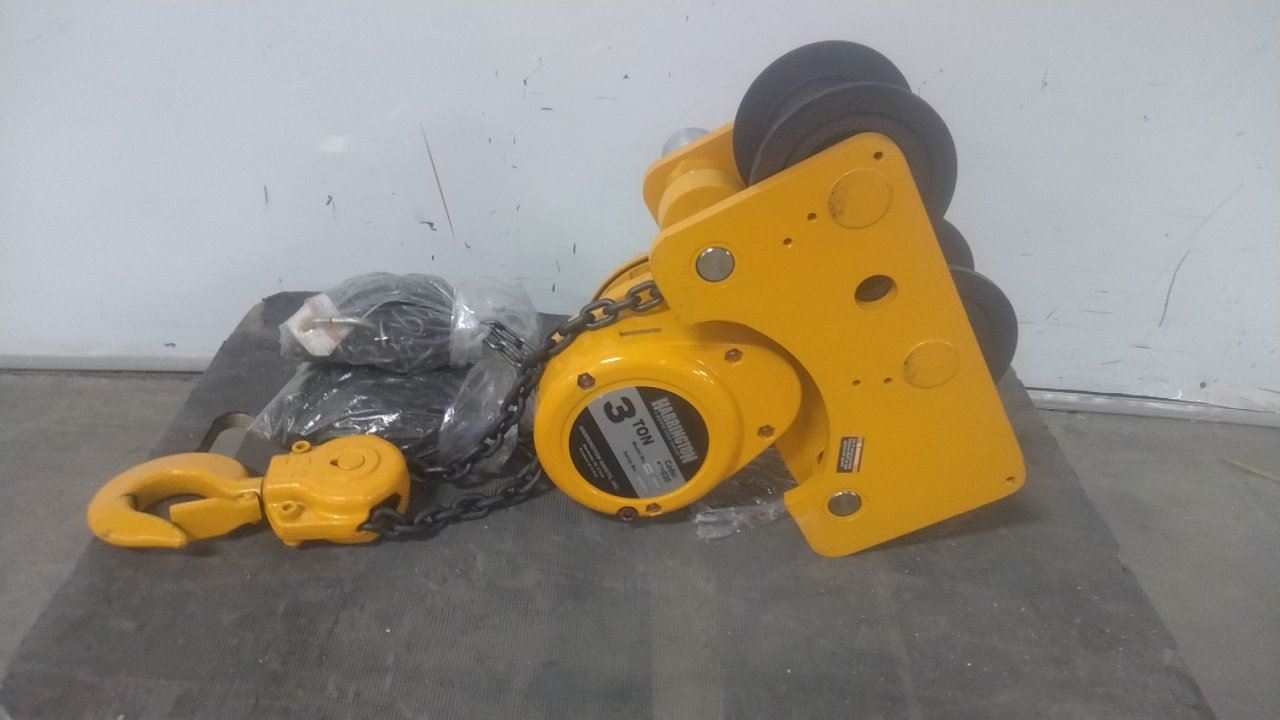

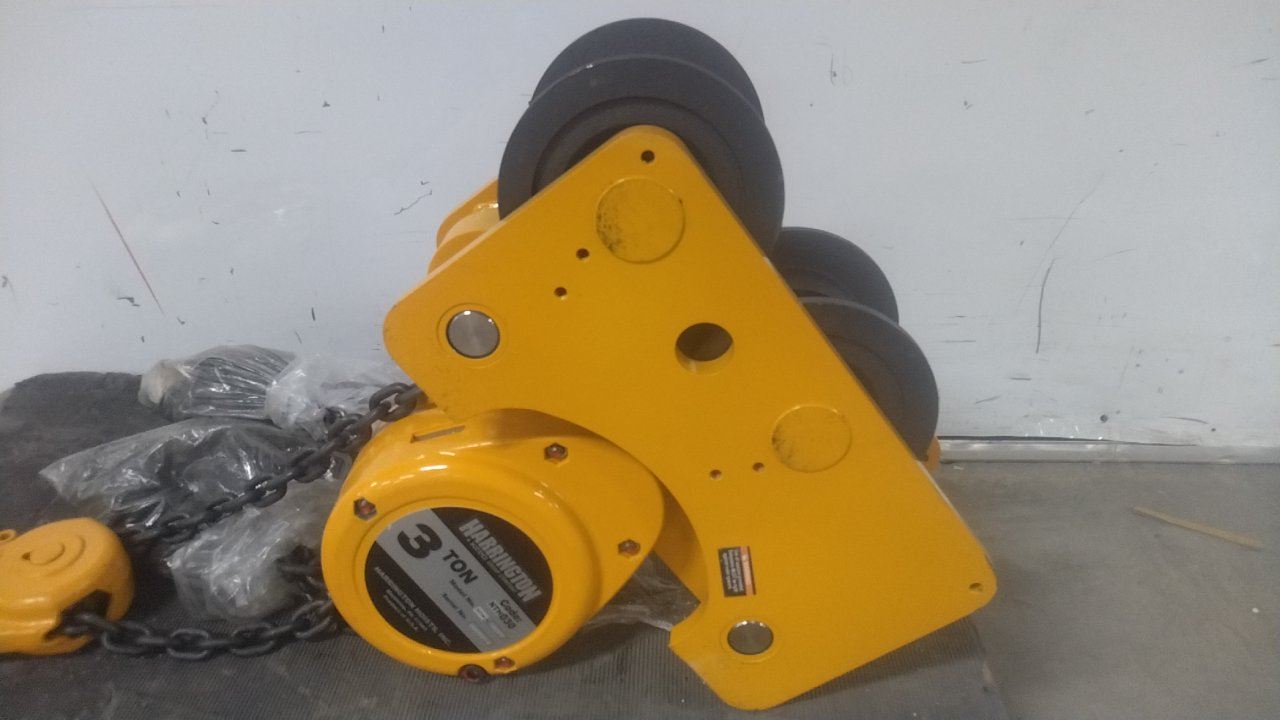

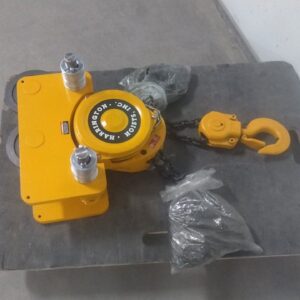

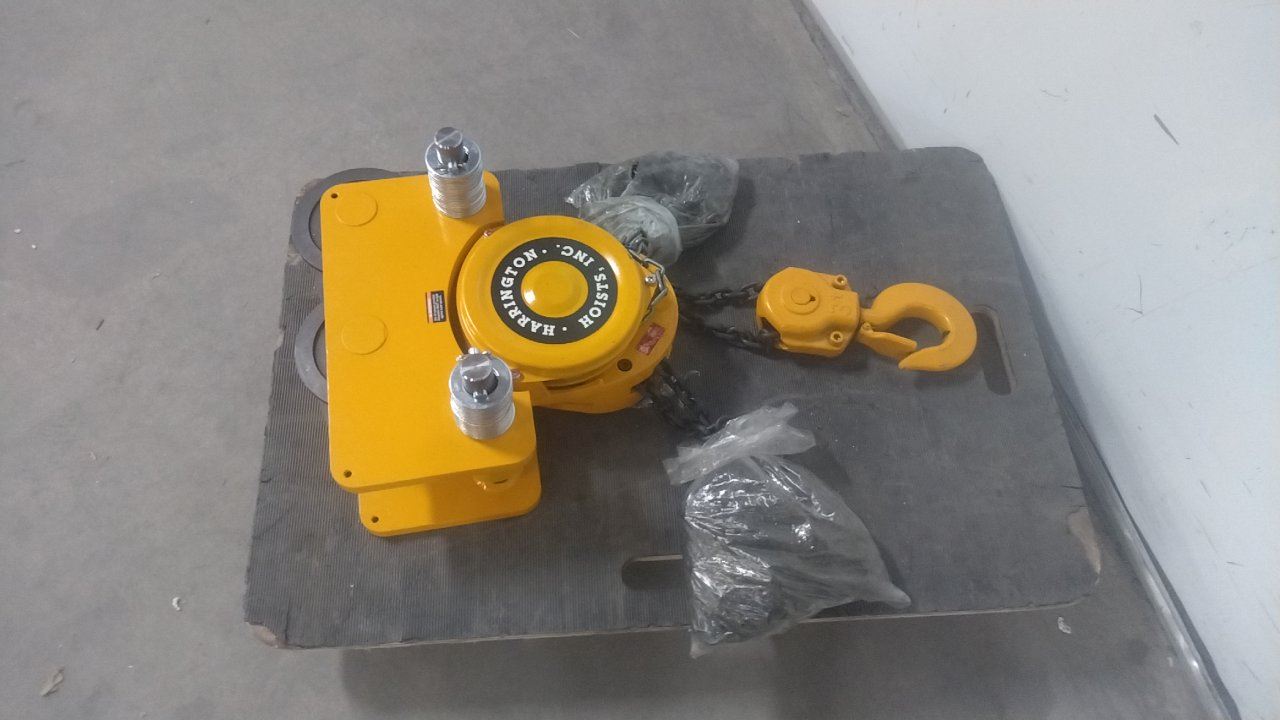

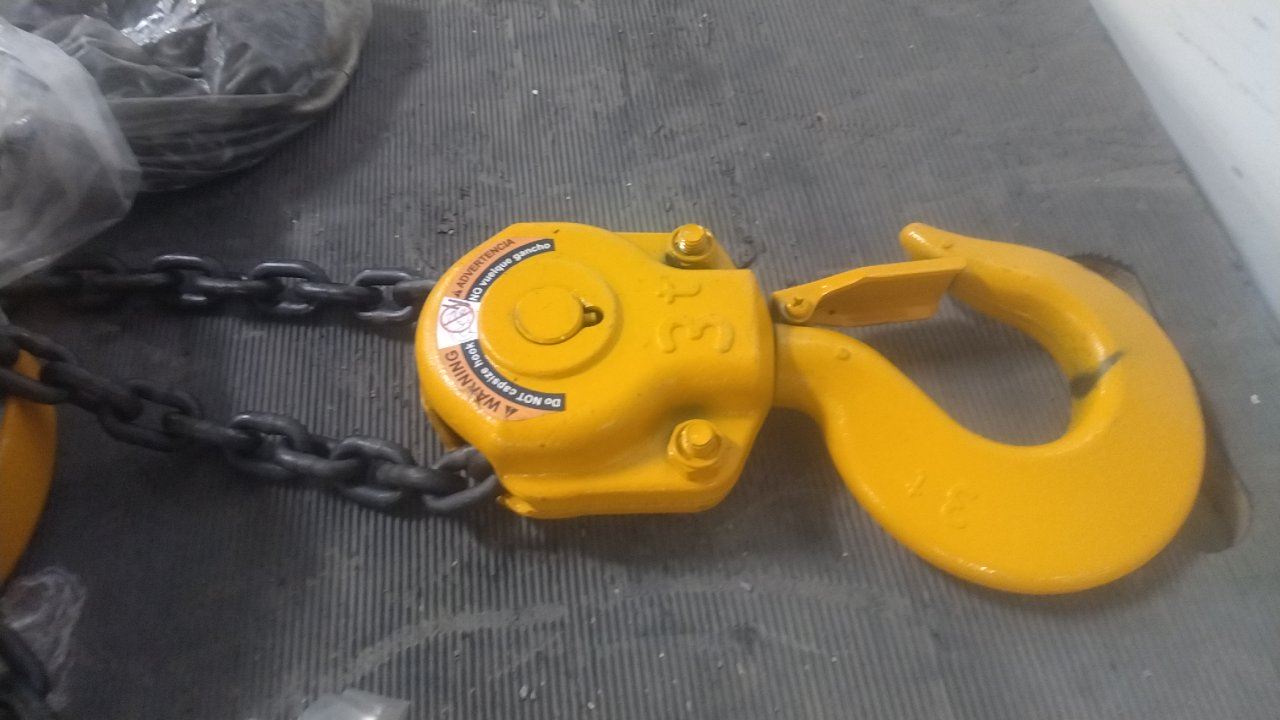

This is a Harrington manual chain hoist. Please refer to the technical specifications in the listing for more information.

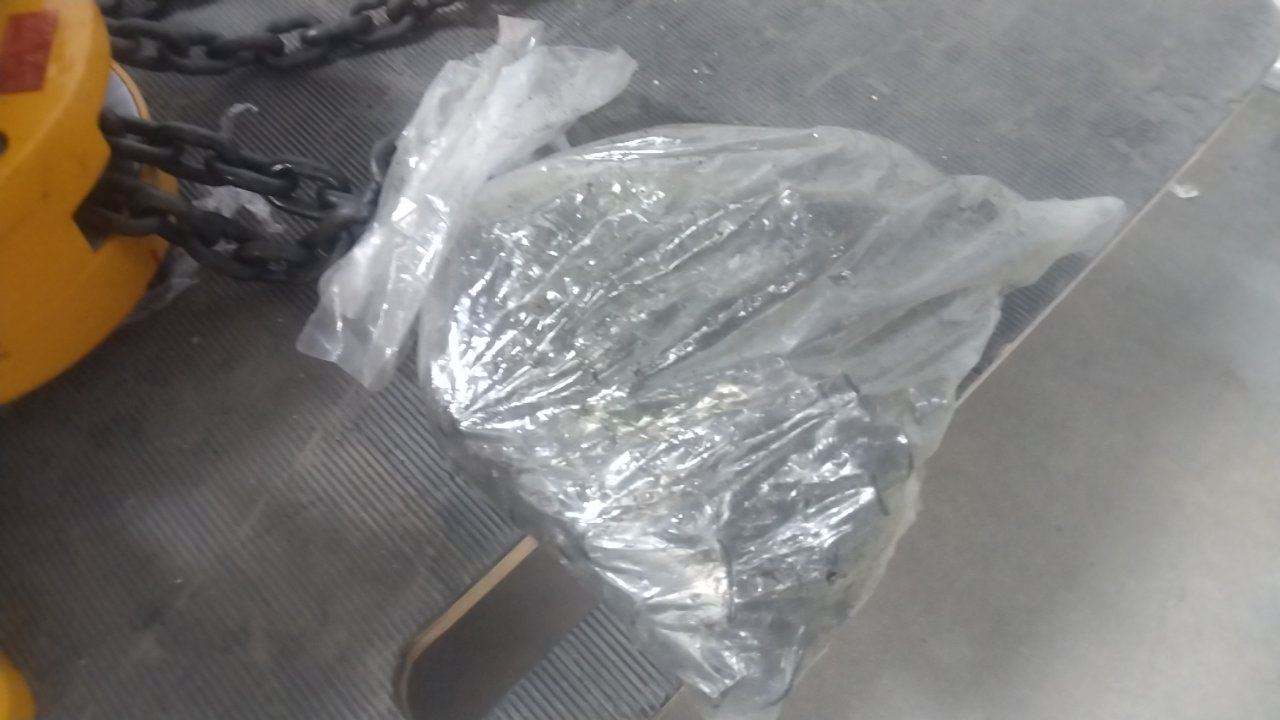

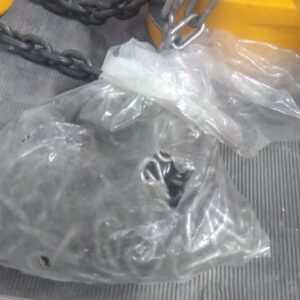

We have inspected this item and we do not have the capability to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.

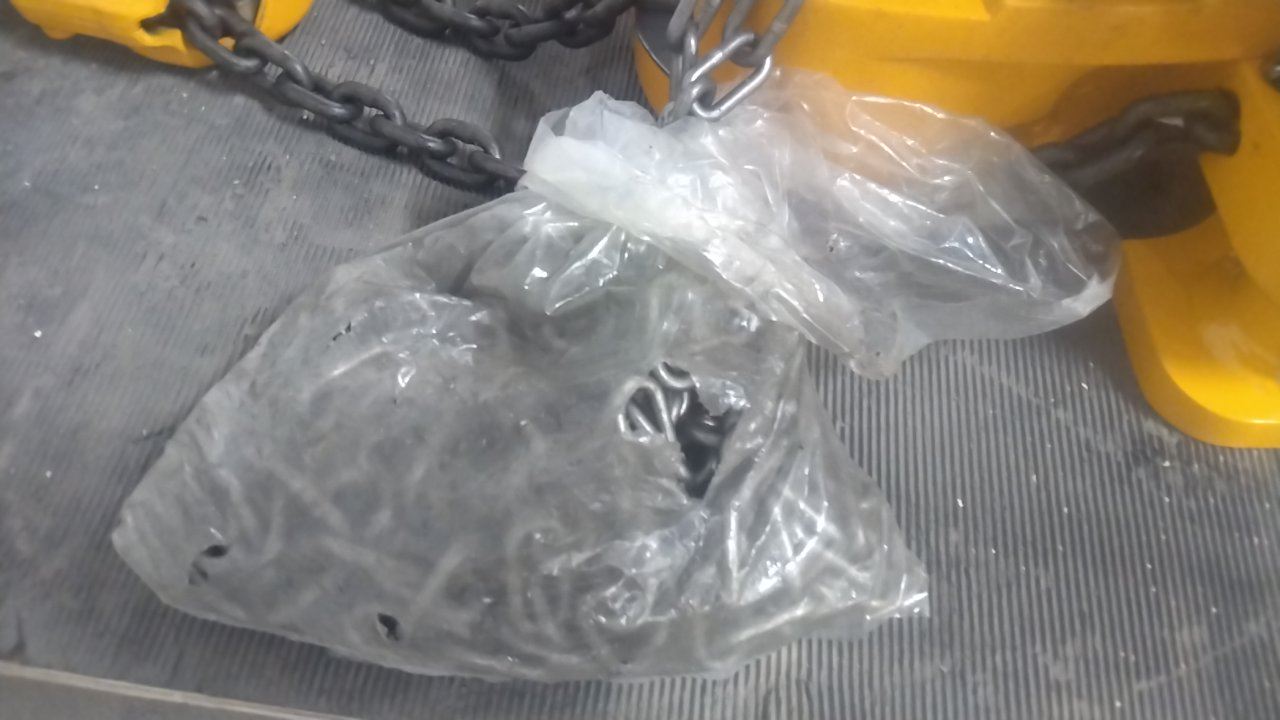

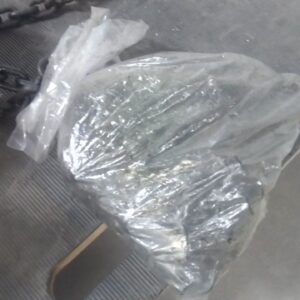

This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | Manual Chain Hoist |

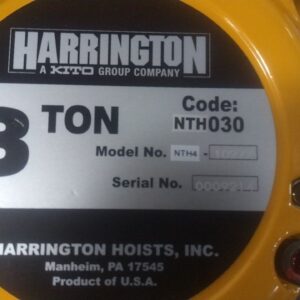

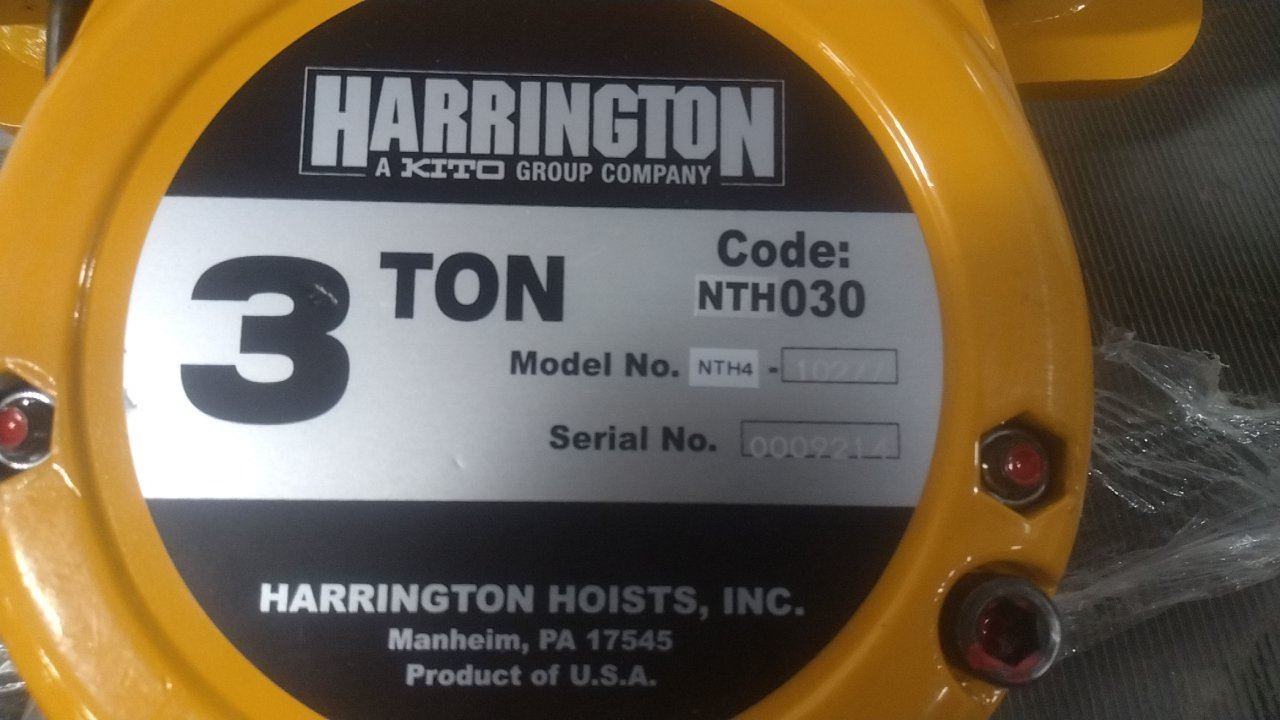

| Manufacturer Part Number | NTH030-10 |

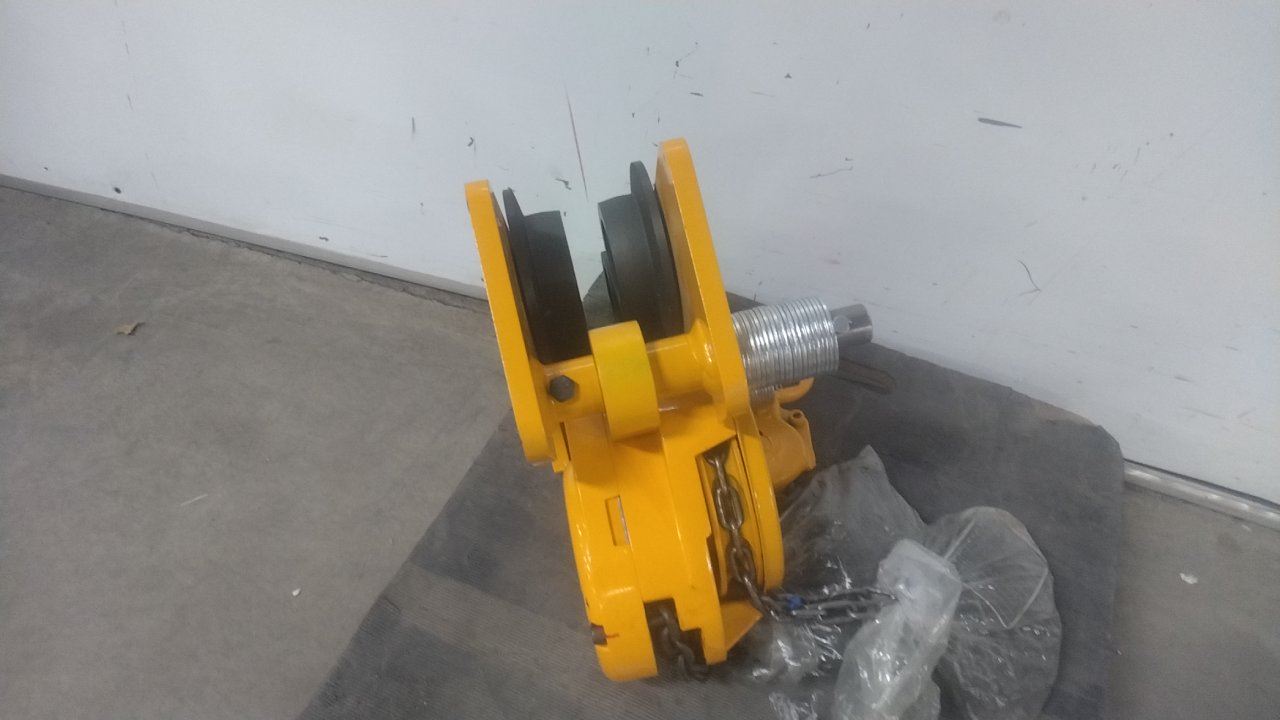

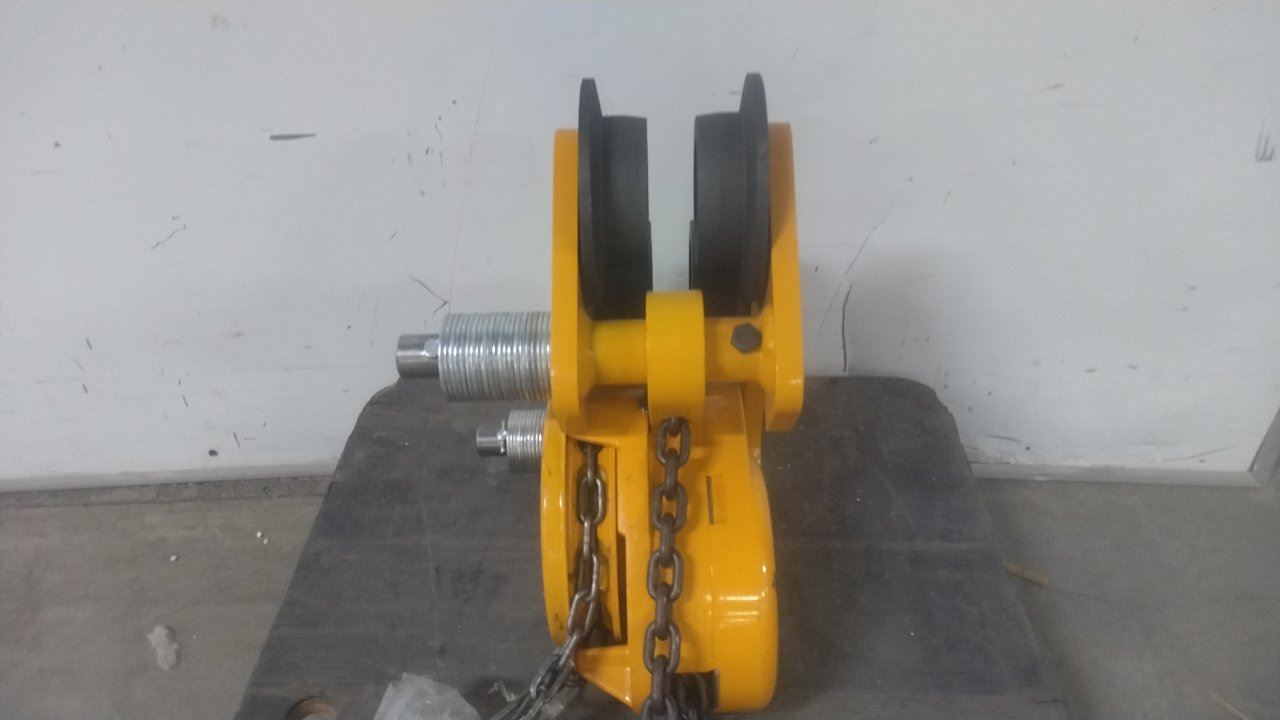

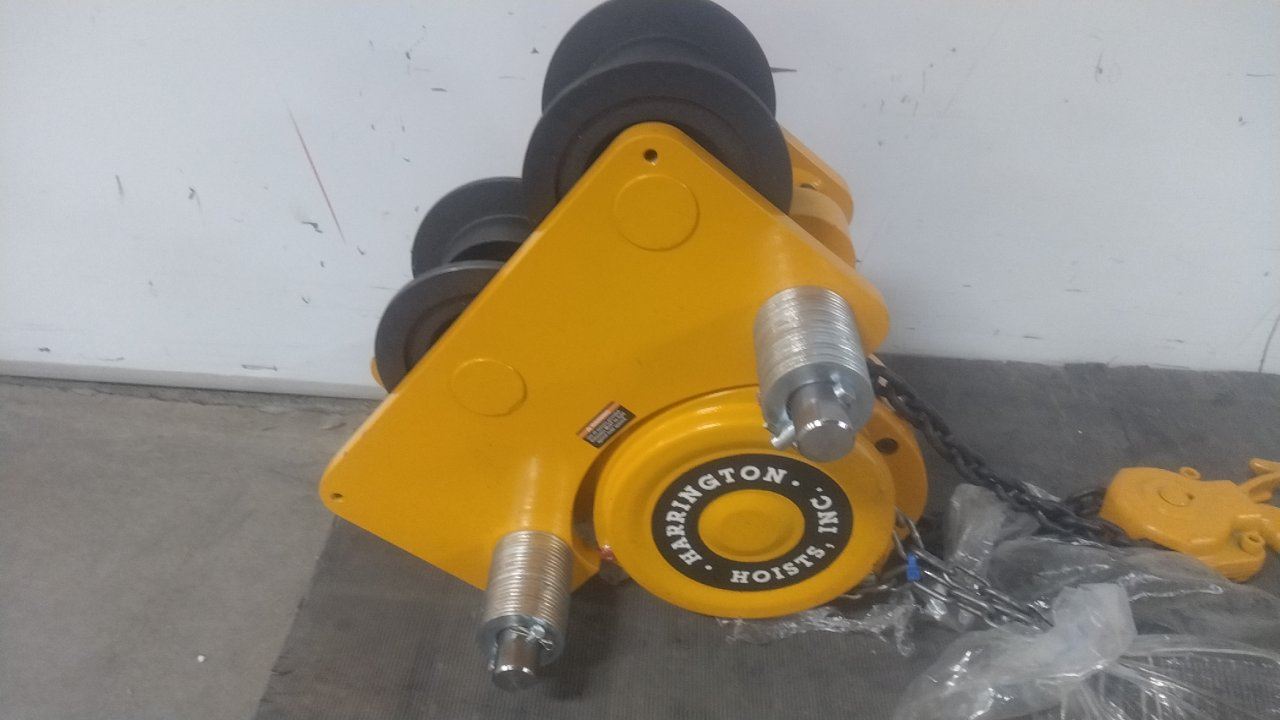

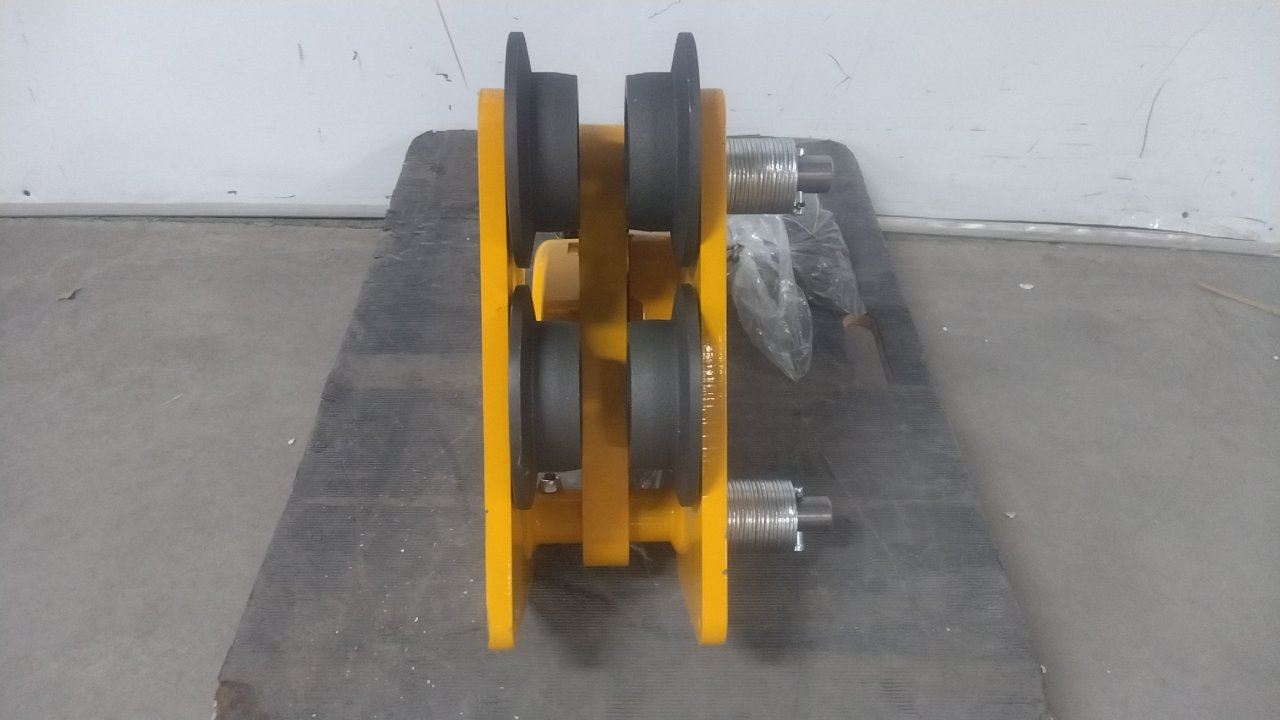

| Mount Type | Push Trolley |
| Lifting Capacity | 6,000 lb |
| Tonnage – Lifting Capacity | 3 Ton |
| Lift Length | 10 ft |
| Pull Force to Lift Rated Load | 101 lb |
| For Beam Flange Width | 3-5/8 in – 6-1/4 in |
| For Minimum Beam Flange Width | 3-5/8 in |
| For Maximum Beam Flange Width | 6-1/4 in |
| For Minimum Beam Flange Height | 4-29/32 in |
| Headroom | 19 in |
| Minimum Retracted Length | 19 in |
| Number of Reeves | 2 |
| Number of Load Chains | 1 |
| Lifting Hook Opening Width | 1-11/16 in |

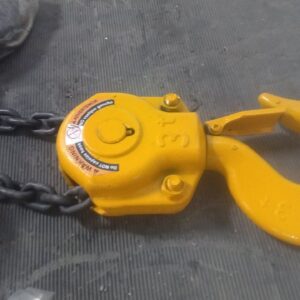

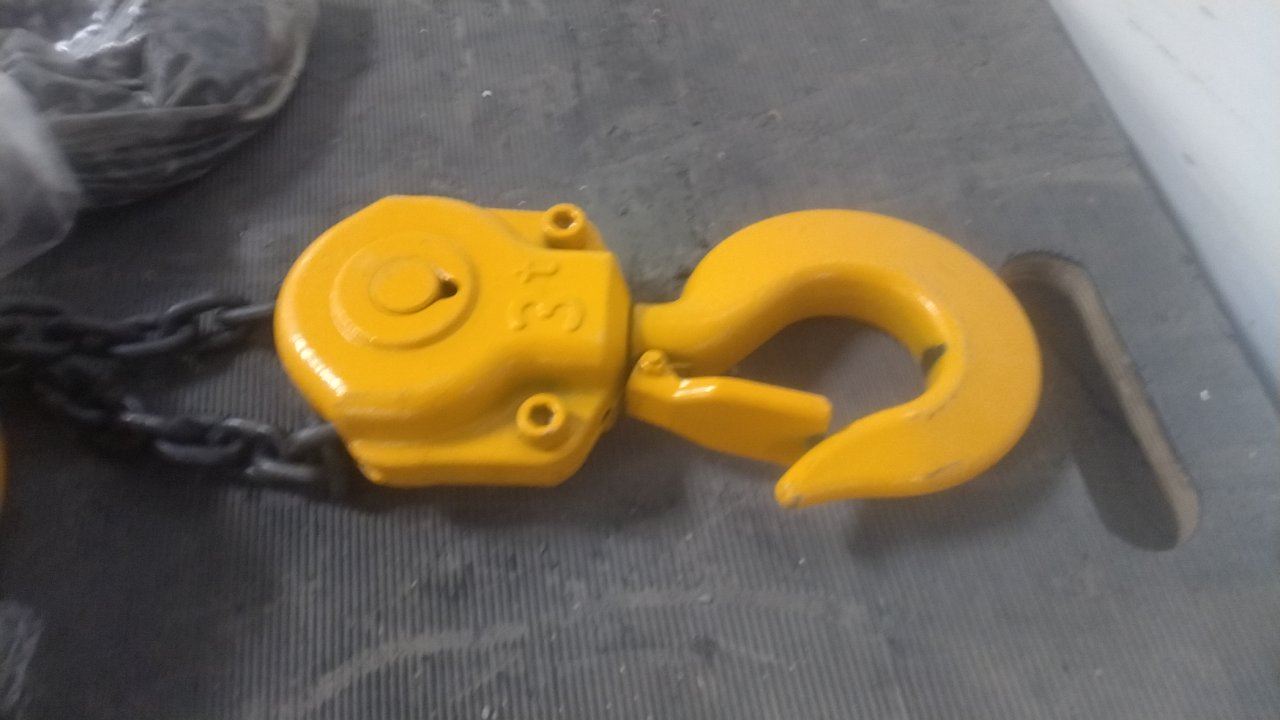

| Lifting Hook Type | Hook with Safety Latch |
| Lifting Hook Material | Carbon Steel |
| Chain Material | Manganese Alloy |
| Chain Grade | Grade 100 |
| Includes Clutch | Clutch Not Included |
| Brake Type | Weston Style |
| Overload Protection Included | No |
| Body Material | Die-Cast Aluminum |
| Body Depth | 9-29/32 in |
| Body Width | 15-19/32 in |
| Color | Yellow |
| Resistance Properties | Abrasion Resistant; Corrosion Resistant; Moisture Resistant; Wear Resistant |
