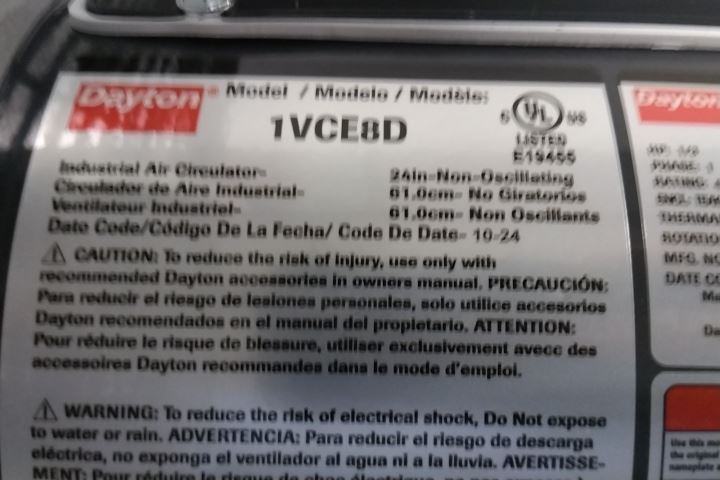

This is a Dayton standard-duty industrial fan. Please refer to the technical specifications in the listing for more information.

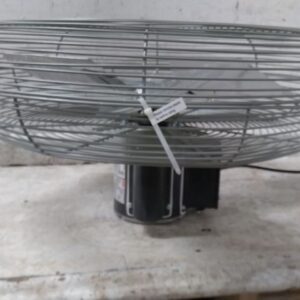

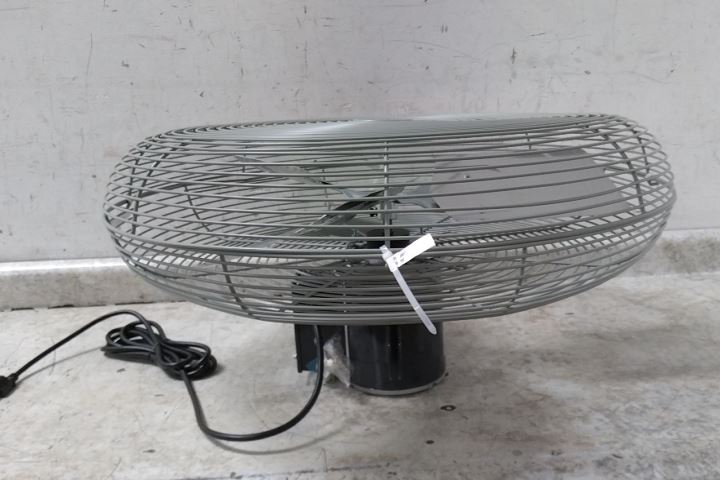

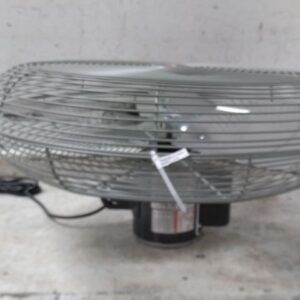

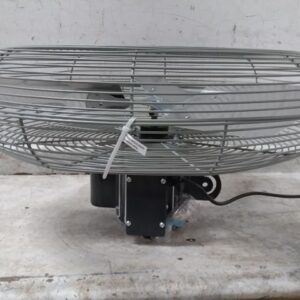

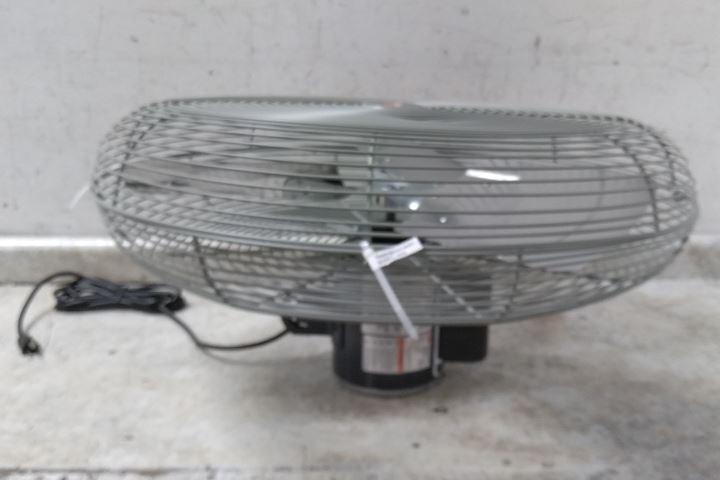

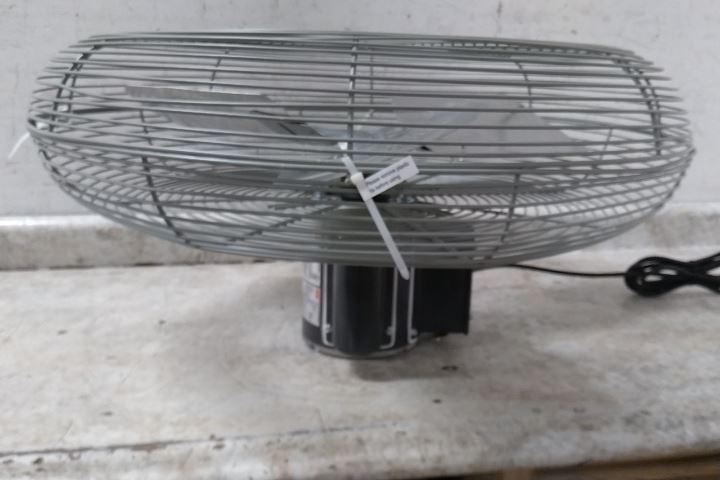

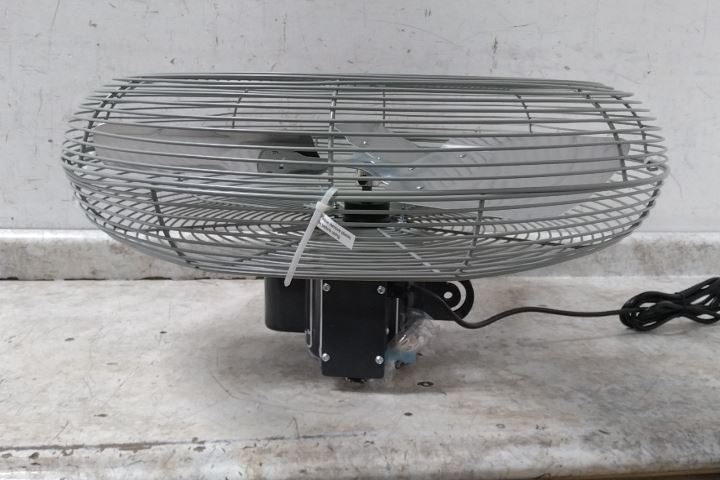

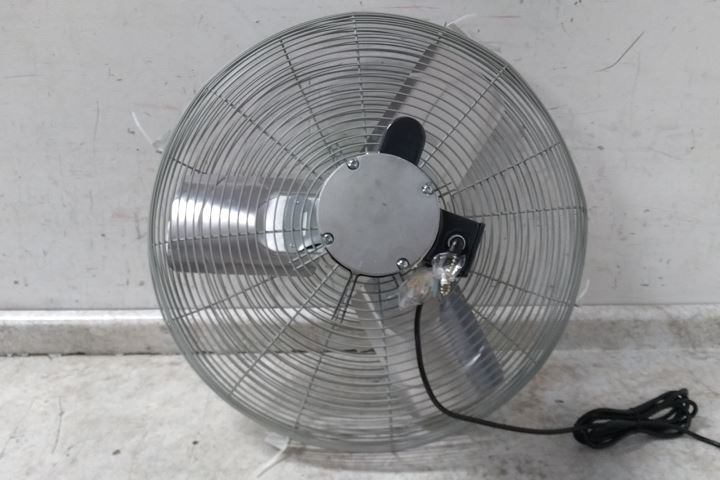

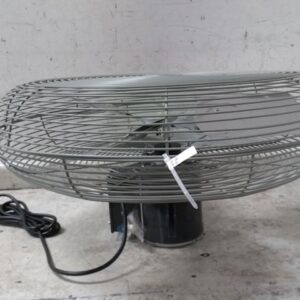

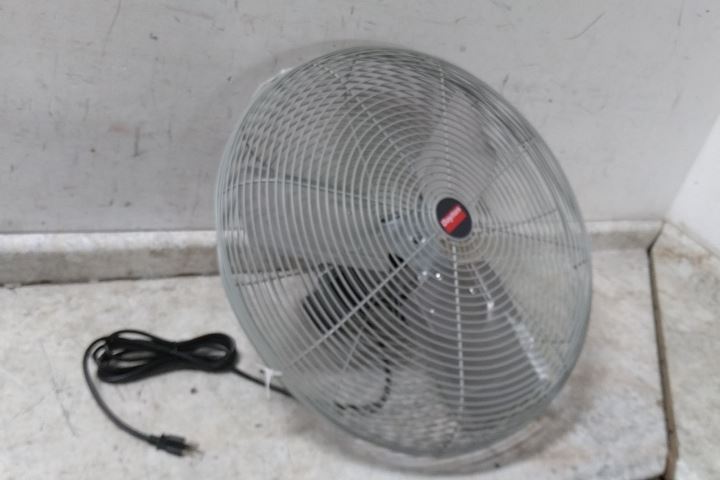

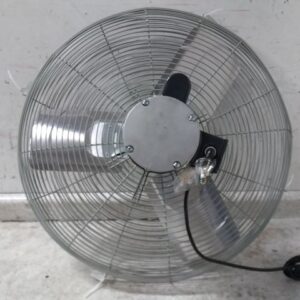

We have inspected this item and it powers on when plugged in. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Standard-Duty Industrial Fan |
| Blade Diameter | 24 in |
| Wheeled Base | Stationary |
| Oscillation | Non-Oscillating |
| Watts | 410/305 |
| Number of Speeds | 2 |
| Voltage | 115V AC |
| Phase | 1 |
| Air Flow | 3,850/6,200 cfm |

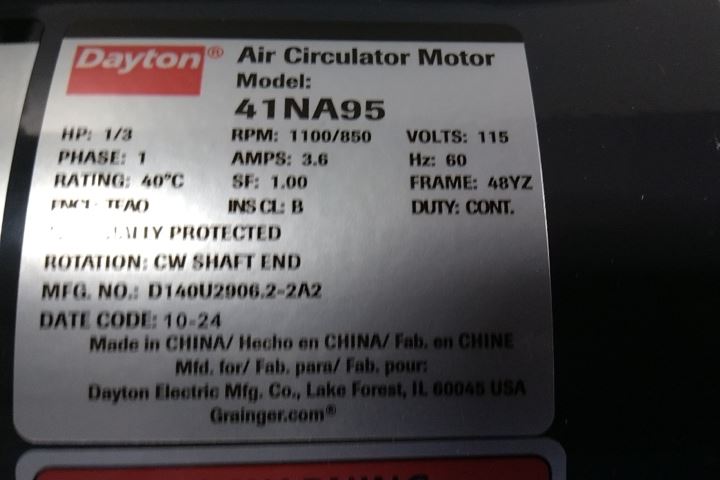

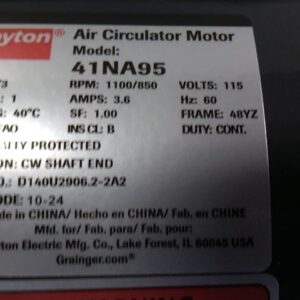

| Motor HP | 1/3 hp |
| RPM | 1100/850 |
| Amps | 3.6/3.0 |
| Fan Mounting Location | Fan Head Only |
| Air Velocity @ 10 Ft. | 980/850 fpm |
| Air Velocity @ 20 Ft. | 575/470 fpm |
| Air Velocity @ 40 Ft. | 200/120 fpm |
| Assembly Required | No |
| Sound Level | 73 dBA |
| Max. Ambient Temp. | 104 °F |
| Hz | 60 Hz |
| Motor Enclosure | Totally Enclosed Air Over |
| Motor Insulation | Class B |
| Motor Type | Permanent Split Capacitor |
| Thermal Protection | Automatic Reset |
| Bearing Type | Ball |
| Fan Cord Length | 10 ft |
| NEMA Plug Configuration | 5-15P |
| Height | 27 in |
| Width | 27 in |
| Depth | 13-9/16 in |
| Number of Blades | 3 |
| Blade Material | Aluminum |
| Shaft Dia. | 1/2 in |
| Fan Housing Material | Steel |
| Color | Gray |
| Guard Material | Steel |
| Wire Guard Finish | Polyester Powder Coated Gray |
| Number of Conductors | 3 |
| Height Adjustment | Fixed Height |
| Drive Type | Direct Drive |
| Environmental Applications | Industrial |
