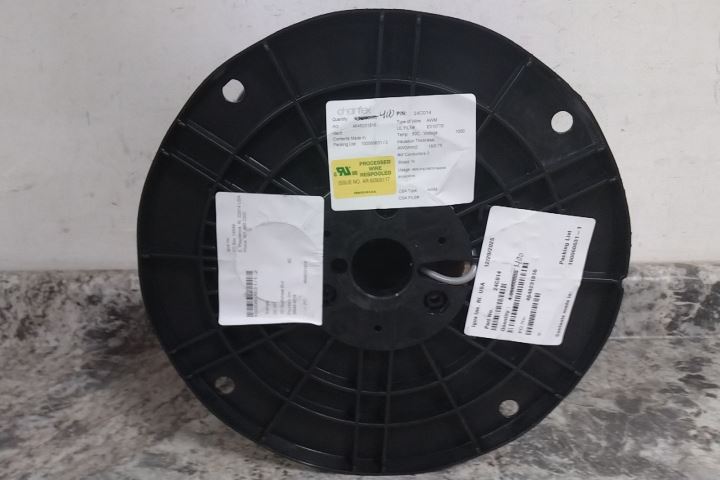

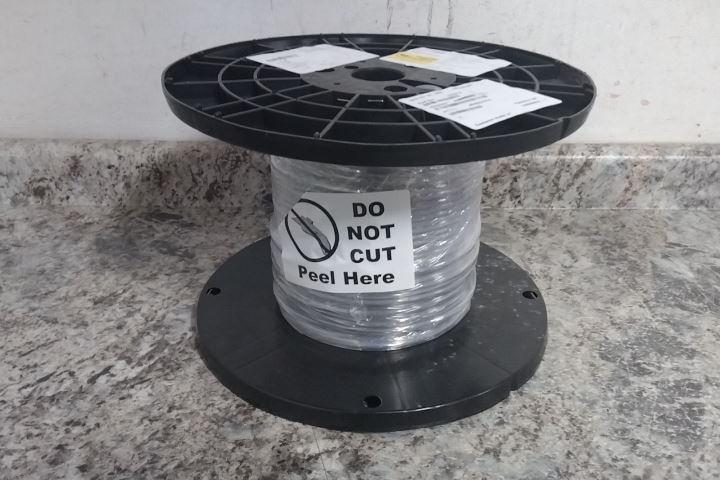

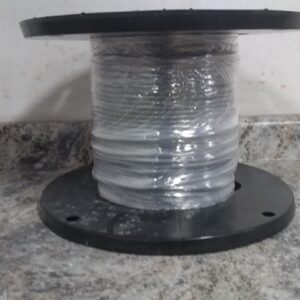

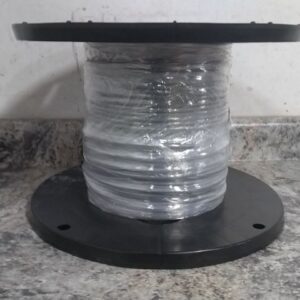

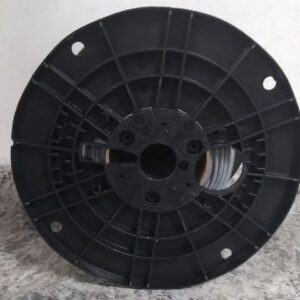

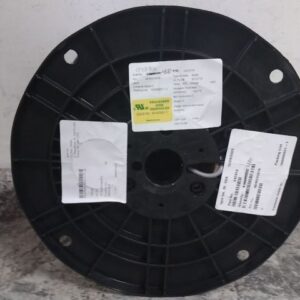

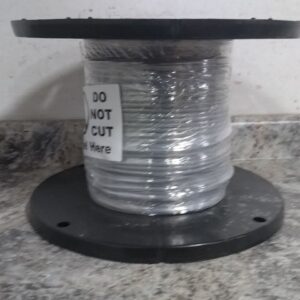

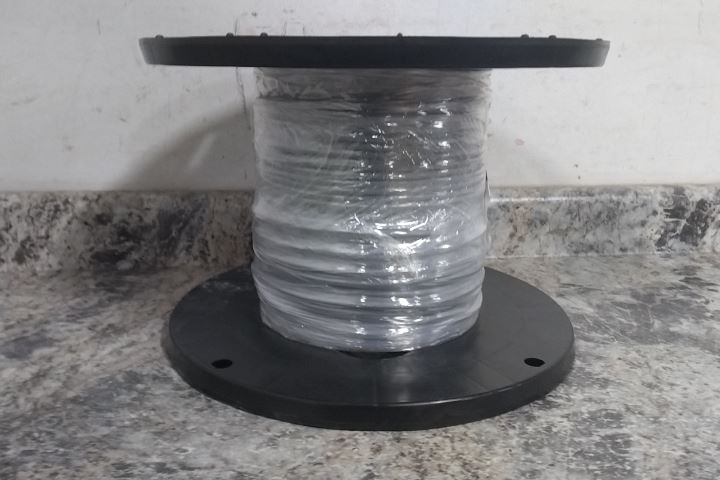

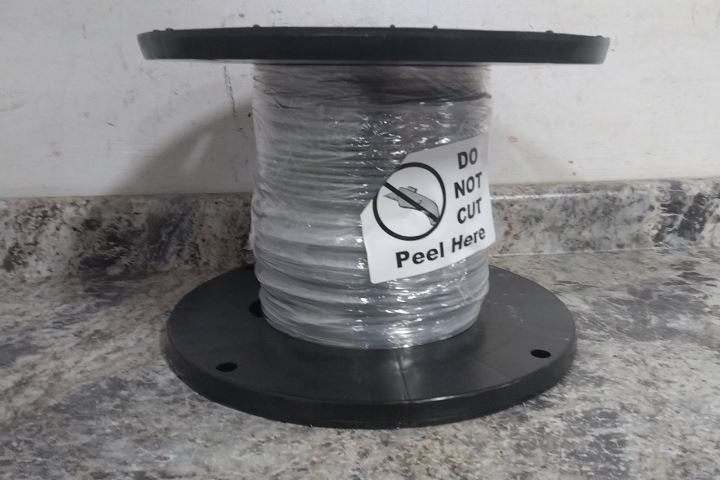

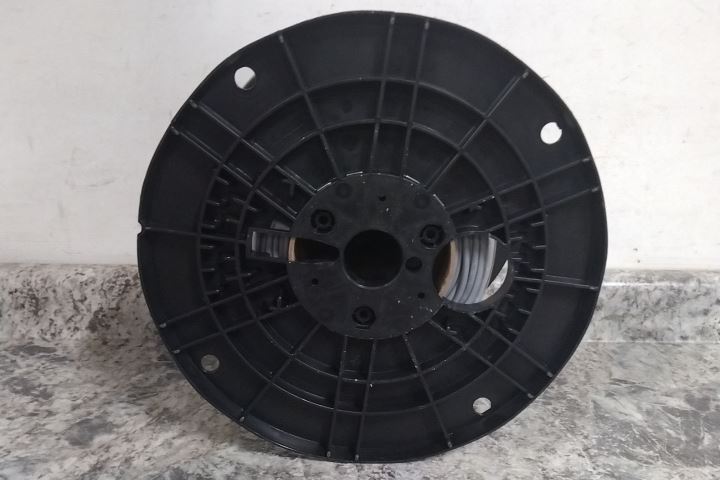

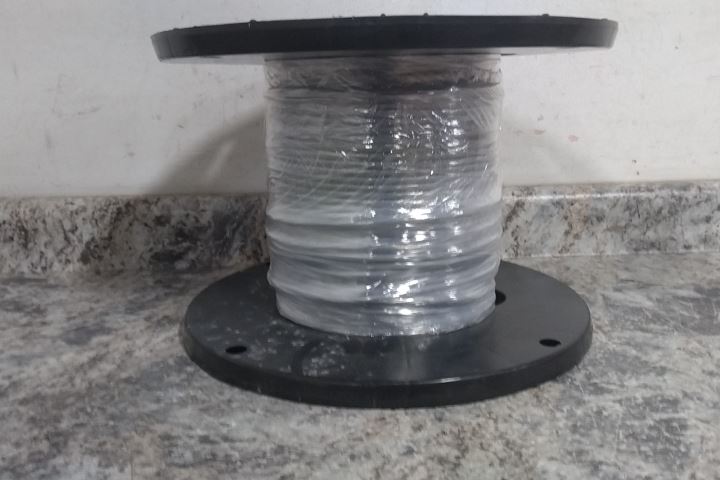

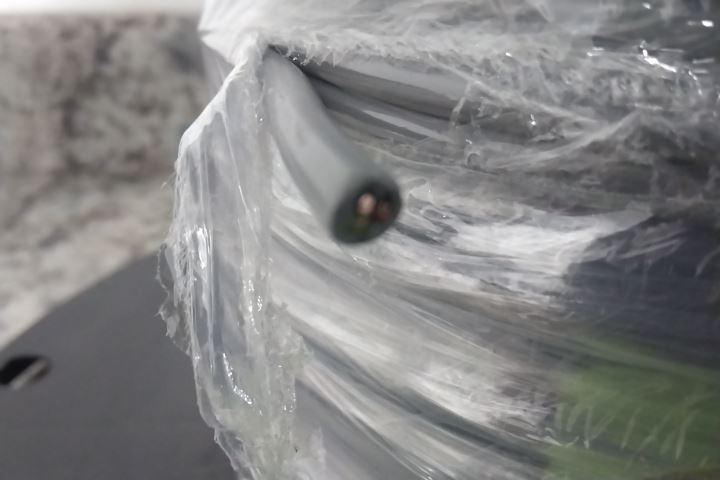

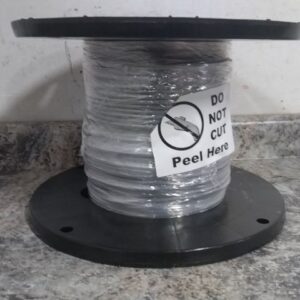

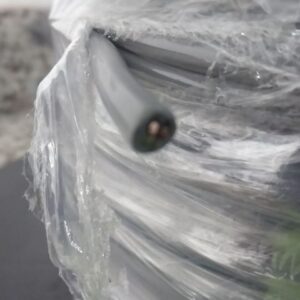

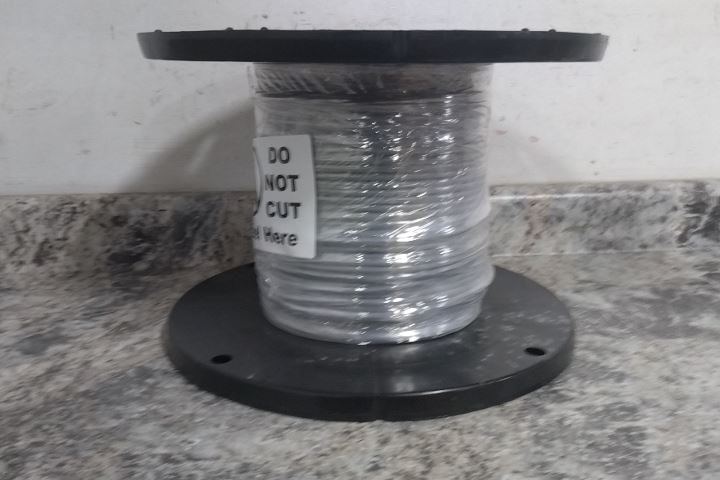

This is 100 feet of Chainflex control cable. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Control Cable |
| Manufacturer Part Number | CF77-UL-07-03-100 |
| Series | Chainflex |
| Voltage | 1,000 V |
| Length | 100 ft |
| Jacket Material | PUR |
| Jacket Color | Gray |
| Number of Conductors | 3 |
| Conductor Size | 18 AWG |
| Conductor Configuration | Single |
| Conductor Color Code | Green/Yellow; Black with White Numbers |
| Conductor Material | Copper |
| Outside Dia. | 0.24 in |
| Shielding | Unshielded |
| Minimum Operating Temperature – Flexible | -40 °F |
| Maximum Operating Temperature | 176 °F |
| Minimum Bend Radius Factor – E-Chain | 6.8 x OD |
| Minimum Bend Radius Factor – Fixed | 4 x OD |
| Minimum Bend Radius Factor – Flexible | 5 x OD |
| Resistance Properties | Coolant Resistant; Flame Retardant; Notch Resistance; Oil and Grease Resistant |
